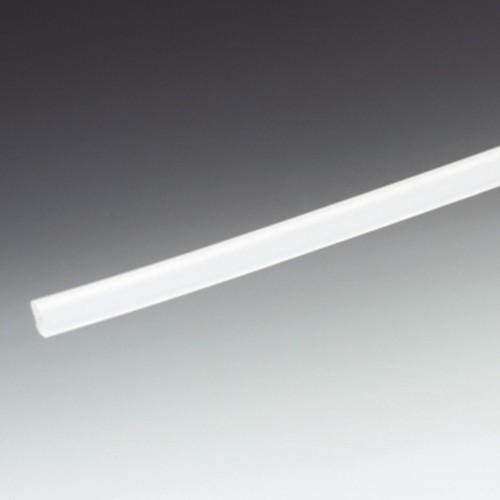

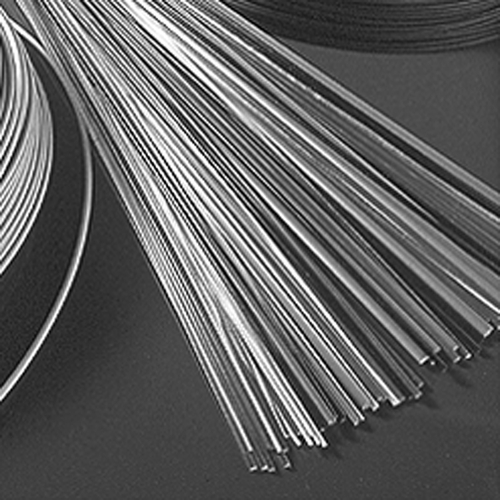

High-Chem Welding Wire made of PVDF
| Item |
Outside Ø mm
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|
| 302175 | 3 | 1.000 | 1 | 27.00 | |
| 302176 | 3 | 1.000 | 2 | 47.00 | |
| 302177 | 3 | 1.000 | 3 | 61.00 | |
Similar products
Viewed
Application area
Used in chemical apparatus and machine building, especially in the petrochemical, chemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology (pump carrying wheels, flanges, valve bodies etc.).
For hot gas welding of sheets, rods and tubes made of PVDF (same melt-flow index).
Product specification
Heavy-duty plastic
Very good chemical resistance, but limited compared to PTFE
Outstanding hydrolysis resistance
Good temperature resistance coupled with high operating temperature limit
High impact toughness even at low temperatures
Great hardness
High mechanical stability, stiffness and creep strength (in this regard superior to other plastics)
High heat-stability
Thermoplasticly processable
Good electrical insulating properties
Inherent flame-resistance
Very good radiation resistance
Outstanding UV and weather resistance
Physiologically safe
Technical specification
Material: PVDF (polyvinylidene fluoride)
Colour: natural, translucent
Density: 1.78 g/cm3 (ISO 1183)
Temperature range: -60 to +150 °C, for a short time +160 °C
Melting point: +169 °C (ISO 3146)
Flammability rating: UL 94 V-0 (at 1.5 or 3 mm thickness)
Thermal conductivity: 0.19 W/m * K at +23 °C (DIN 52612)
Tensile strength: 50 N/mm2 (yield stress) (ISO 527-2)
Elongation at break: >50 % (ISO 527-2)
Tensile modulus: 2,000 N/mm2 (ISO 527-2)
Notch impact strength: 6 kJ/m2 (ISO 179/1eA)
Rockwell hardness: M 75 (ISO 2039-2)
Dielectric loss factor:
at 1 MHz: 0.165 (IEC 60250)
at 100 Hz: 0.025 (IEC 60250)
Dielectric strength: 20 kV/mm (IEC 60242-1)
Volume resistivity: 1012 Ohm x m (IEC 60093)
Surface resistivity: 1013 Ohm (IEC 60093)
Tolerance: DIN ISO 3302-1 E2
Regulations: according to BfR and FDA
| Item | Image |
Outside Ø mm
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|
| 302175 |
|
3 | 1.000 | 1 | 27.00 | |
| 302176 |
|
3 | 1.000 | 2 | 47.00 | |
| 302177 |
|
3 | 1.000 | 3 | 61.00 | |
