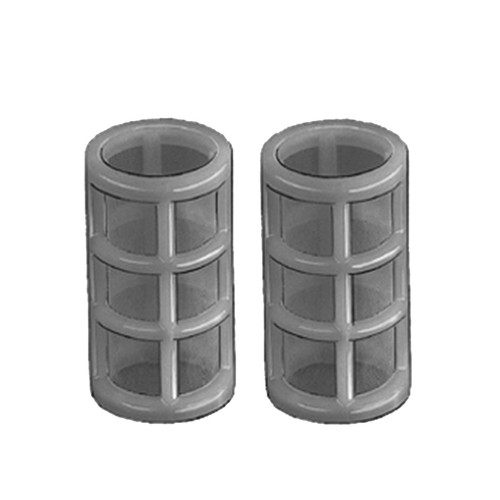

Straining Filter Candle made of Nylon - high flow rate

Straining Filter Candle made of Nylon - high flow rate
Product specification Heavy-duty filter candles with PA 6.6 filters (nylon) and PP... more

Product specification

Heavy-duty filter candles with PA 6.6 filters (nylon) and PP retaining core, regenerable by backwashing or in the ultrasound bath, for THOMAPOR®-High-tech filter housing, items 45741 to 45744, with defined pore sizes.

General Information Use in laboratory and analytical technology, microelectronics,... more

General Information

Use in laboratory and analytical technology, microelectronics, refrigerating technology plants, fuel conveyer systems, chemical process engineering, pneumatic and hydraulic systems, doctor's and dentist's offices, photographic laboratories.

For filtration, clarification and particle retention in chemical process solutions, etching baths, mineral oils, refrigerating media, lacquers and dyes, pneumatic pressure gases and air, hydraulic fluids, industrial water, photochemical solutions.

Chemical-resistant, mechanically stable, pressure- and temperature-loadable filter systems for fixed mounting in conveying lines for liquid and gaseous media, consisting of a two-part media-tightly screwable full-plastic filter housing made of polyamide or polyamide/TROGAMID® combination. Available in two field-proven sizes for delivery capacities up to 1,500 l/h, optionally with handy drain screw on the housing bottom. Fine-filter candles made of UHMW-PE (Ultra High Molecular Weight Polyethylene) or straining filter candles made of PA 6.6 (polyamide 6.6, nylon) with graduated pore sizes between 5 and 350 µm are to be selected according to the intended application.

Item Image Pore size
µm
max. Durchfluss Flüssigkeiten1
l/h
Einheit
Stück
Price
Euro*
Buy
45745
40 420 1 28.00
45746
60 460 1 28.00
45747
80 520 1 28.00
45748
140 600 1 28.00
45749
220 700 1 28.00
45750
350 800 1 28.00
