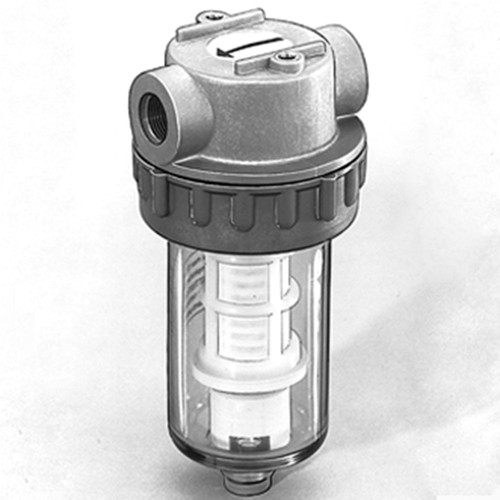

Filter housing for higher flow rates
Top part: PP (polypropylene), blue
Bottom part: SAN (transparent) or on request PP (polypropylene), blue
Max. temperature: +70 °C with PP; +50 °C with SAN
Max. operating pressure: 10 bar at +30 °C; 6 bar at +50 °C
Connections: on both sides 3/8" or 1/2" NPT internal thread
Height: 165 mm without drain screw; 175 mm with drain screw
Weight: 250 g
Use in laboratory and analytical technology, microelectronics, refrigerating technology plants, fuel conveyer systems, chemical process engineering, pneumatic and hydraulic systems, doctor's and dentist's offices, photographic laboratories.
For filtration, clarification and particle retention in chemical process solutions, etching baths, mineral oils, refrigerating media, lacquers and dyes, pneumatic pressure gases and air, hydraulic fluids, industrial water, photochemical solutions.
Chemical-resistant, mechanically stable, pressure- and temperature-loadable filter systems for fixed mounting in conveying lines for liquid and gaseous media, consisting of a two-part media-tightly screwable full-plastic filter housing made of polyamide or polyamide/TROGAMID® combination. Available in two field-proven sizes for delivery capacities up to 1,500 l/h, optionally with handy drain screw on the housing bottom. Fine-filter candles made of UHMW-PE (Ultra High Molecular Weight Polyethylene) or straining filter candles made of PA 6.6 (polyamide 6.6, nylon) with graduated pore sizes between 5 and 350 µm are to be selected according to the intended application.
Max. flow rate liquids1
|Ausführung||Innengewinde||Werkstoff Oberteil||Werkstoff Unterteil||
||800||ohne Ablass||NPT 3/8"||PP||SAN||1||101.00|
||800||mit Ablass||NPT 3/8"||PP||SAN||1||110.00|
||800||ohne Ablass||NPT 1/2"||PP||SAN||1||101.00|
||800||mit Ablass||NPT 1/2"||PP||SAN||1||110.00|
