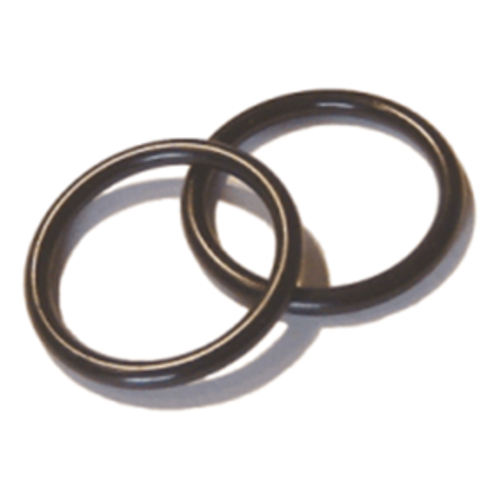

HNBR High-Performance O-Rings

Application area Very good choice for: Applications involving mechanical load, as well as in... more

Close menu

Application area

Very good choice for:

Applications involving mechanical load, as well as in mineral oils, fats and waxes, motor oils and fuels, animal and vegetable fats.

Well suited for use in:

CIP / SIP media for continuous plants in the food, beverage and pharmaceutical industries; CIP (Cleaning in Place) = diluted acids or bases combined with cleaning additives; SIP (Sterilization in Place) = disinfectants, steam, oxidizing media (e.g. hypochlorite) and / or polar organic solvents (e.g. acetic acid).

Should not be used in:

Concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid), aromatic and chlorinated hydrocarbons.

Product specification

Improved media resistance compared with NBR

Better heat and oxidation stability than NBR

High mechanical stability

Improved wear resistance

Technical specification

Material: hydrogenated nitrile butadiene rubber

Color: black

Crosslinking: peroxidic

Shore hardness A: 75° ±5 (test plate) (DIN 53505)

Temperature range: -35 to +140 °C

IRHD: 75 +5 / -8 (o-ring) (DIN ISO 48 M)

Density: approx. 1.20 g/cm³ (DIN EN ISO 1183)

Tensile modulus at 100 % elongation: 10 N/mm² (DIN 53504)

Tensile strength: 26 N/mm² (DIN 53504)

Elongation at break: 202 % (DIN 53504)

Compression set: 22 % at +150 °C / 24 h (DIN ISO 815)

Sterilization temperature: +121 °C (for perishable foods)

Cleaning temperature: +82 °C (for perishable foods)

Regulations:

For the food processing industry: conforming to FDA (CFR 21 §177.2600)

For perishable foods: 3-A Sanitary Standards Class II

General Information O-Rings These O-Ring materials are specially developed for use in the... more

Close menu

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

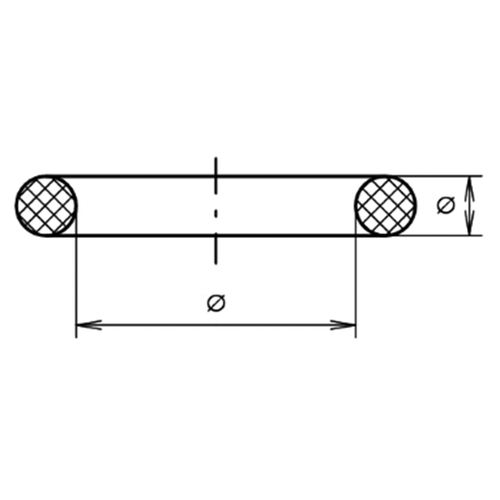

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

Item	Inside Ø mm	Schnur Ø mm	Einheit Stück	Price Euro*
403810	12	3,5	5	120.00
403811	12	3,5	10	206.00
403812	16	3,5	5	120.00
403813	16	3,5	10	206.00
403814	18	3,5	5	120.00
403815	18	3,5	10	206.00
403816	20	3,5	5	120.00
403817	20	3,5	10	206.00
403818	22	3,5	5	135.00
403819	22	3,5	10	234.00
403820	26	3,5	5	135.00
403821	26	3,5	10	234.00
403822	28	3,5	5	135.00
403823	28	3,5	10	234.00
403824	32	5	5	200.00
403825	32	5	10	345.00
403826	34	5	5	200.00
403827	34	5	10	345.00
403828	40	5	5	200.00
403829	40	5	10	345.00
403830	40,5	5	5	200.00
403831	40,5	5	10	345.00
403832	46,5	5	5	249.00
403833	46,5	5	10	420.00
403834	52	5	5	249.00
403835	52	5	10	420.00
403836	58,5	5	5	249.00
403837	58,5	5	10	420.00
403838	68	5	5	298.00
403839	68	5	10	488.00
403840	73,5	5	5	298.00
403841	73,5	5	10	488.00
403842	83	5	5	298.00
403843	83	5	10	488.00
403844	86,5	5	5	360.00
403845	86,5	5	10	576.00
403846	102	5	5	360.00
403847	102	5	10	576.00
403848	111	5	5	360.00
403849	111	5	10	576.00
