Application area
In the areas of bio- and food processing technology, chemical and physical laboratory engineering, environmental technology and chemical nuclear technology
Product specification
Prefiltration and clarification of hot or aggressive solutions
Particle and aerosol filtration of gases

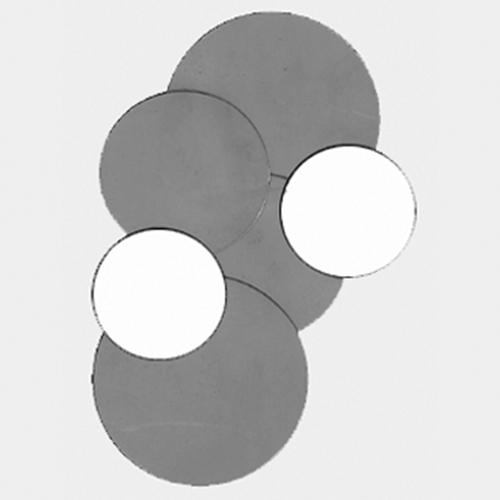

Chemically and physically highly resistant, binderless 1 µm glass fibre round filter for high flow rates, with good wet stability and high retention capacity, sterilizable with all methods.
Technical specification
Material: borosilicate fibre
Thickness: approx. 450 µm
Retention capacity for aerosols: >99.97 %
Measuring conditions: Filter area 100 cm2; nominal particle size 0.3 µm; air throughput: approx. 30 l/min.
| Item | Image |
Outside Ø mm
|
max. Durchfluss Gase1 l/min.
|
max. Durchfluss Flüssigkeiten2 ml/min.
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Outside Ø mm
|
max. Durchfluss Gase1 l/min.
|
max. Durchfluss Flüssigkeiten2 ml/min.
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 15043 |
|
13 | 50 | 500 | 100 | 108.00 | |
| 15044 |
|
25 | 50 | 500 | 100 | 130.00 | |
| 15045 |
|
37 | 50 | 500 | 100 | 150.00 | |
| 15046 |
|
47 | 50 | 500 | 100 | 172.00 | |
| 15047 |
|
50 | 50 | 500 | 100 | 172.00 | |
| 15048 |
|
90 | 50 | 500 | 50 | 408.00 | |
| 15049 |
|
142 | 50 | 500 | 25 | 364.00 |
[1] Air (l/min. x cm2 at 0.7 bar) [2] Water (ml/min. x cm2 at 0.7 bar)
