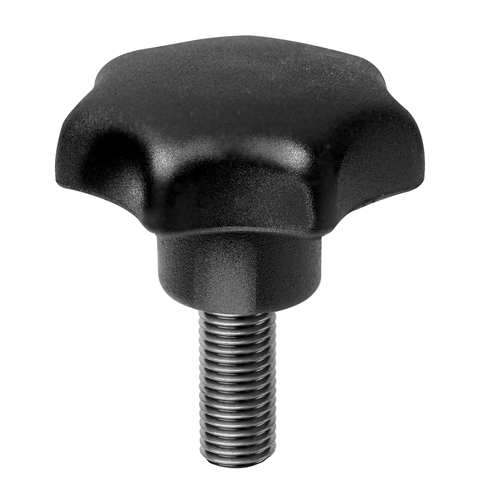

Star Knob made of Stainless Steel - with threaded bolt

Application area As operating element in plant construction and engineering Product... more

Application area

As operating element in plant construction and engineering

Product specification

Ready-to-install star knob screw made of plastics with moulded-in threaded bolt of steel

Cold-, impact- and abrasion-resistant

Technical specification

Material:

Knob: thermoplast polyamide

Threaded bolt: steel, zinc-plated

Colour:

Knob: black, matt finish

Threaded bolt: chromated blue

Temperature range: -30 to +80 °C

Ø knob: 25 - 63 mm

Thread: external thread M5 to M12, in various lengths

No additional information available.

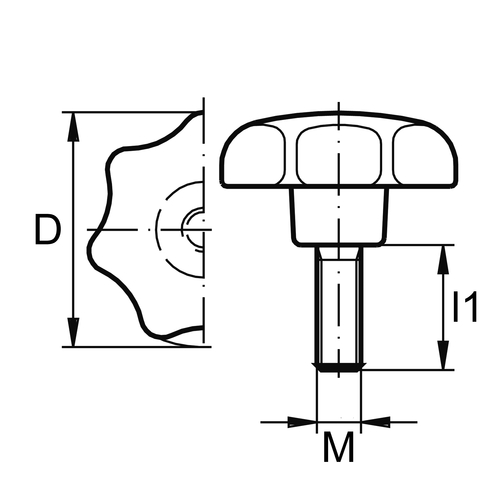

Item Image Thread (M) D
mm
l1
mm
Weight
g
Unit
piece
Price
Euro*
Buy
707005
M5 x 0,8 25 10 5 5 20.00
707006
M5 x 0,8 25 10 5 10 35.00
707007
M5 x 0,8 25 15 7 5 20.00
707008
M5 x 0,8 25 15 7 10 35.00
707009
M5 x 0,8 25 20 8 5 20.00
707010
M5 x 0,8 25 20 8 10 35.00
707011
M6 x 1 32 10 10 5 20.00
707012
M6 x 1 32 10 10 10 30.00
707013
M6 x 1 32 16 11 5 20.00
707014
M6 x 1 32 16 11 10 30.00
707015
M6 x 1 32 20 12 5 20.00
707016
M6 x 1 32 20 12 10 30.00
707017
M6 x 1 32 25 13 5 20.00
707018
M6 x 1 32 25 13 10 30.00
707019
M8 x 1,25 40 16 21 5 25.00
707020
M8 x 1,25 40 16 21 10 40.00
707021
M8 x 1,25 40 20 22 5 25.00
707022
M8 x 1,25 40 20 22 10 40.00
707023
M8 x 1,25 40 25 24 5 25.00
707024
M8 x 1,25 40 25 24 10 40.00
707025
M8 x 1,25 40 30 26 5 25.00
707026
M8 x 1,25 40 30 26 10 40.00
707027
M10 x 1,5 50 20 43 5 25.00
707028
M10 x 1,5 50 20 43 10 55.00
707029
M10 x 1,5 50 25 45 5 40.00
707030
M10 x 1,5 50 25 45 10 55.00
707031
M10 x 1,5 50 30 48 5 40.00
707032
M10 x 1,5 50 30 48 10 60.00
707033
M10 x 1,5 50 45 58 5 40.00
707034
M10 x 1,5 50 45 58 10 60.00
707035
M12 x 1,75 63 20 79 5 55.00
707036
M12 x 1,75 63 20 79 10 80.00
707037
M12 x 1,75 63 30 91 5 55.00
707038
M12 x 1,75 63 30 91 10 80.00
707039
M12 x 1,75 63 40 105 5 55.00
707040
M12 x 1,75 63 40 105 10 80.00
707041
M12 x 1,75 63 60 115 5 70.00
707042
M12 x 1,75 63 60 115 10 105.00
