Timing Belts for Profile T and AT made of PUR (open-length)

Product specification Open-end timing belts On request also continuously welded (with 30 -... more

Product specification

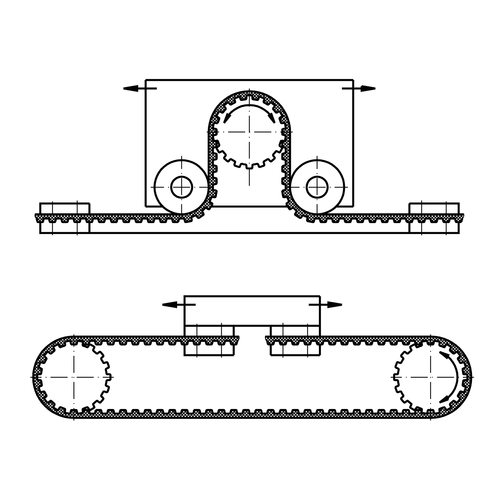

Open-end timing belts

On request also continuously welded (with 30 - 40 % lower durability)

Available in whole-number meter lengths in one piece from 1 metre up to max. roll length (50 m)

General Information Use for power transmission, bridging of large centre distances and... more

General Information

Use for power transmission, bridging of large centre distances and alteration of transmission ratios.

For various applications in machinery and plant engineering, in laboratory technology, in industrial and food processing plants, as well as in model making.

Quiet operation and synchronous transmission of power

Maintenance-free. Lubrication is not required.

High efficiency up to 98 %

Belt pre-tension is required

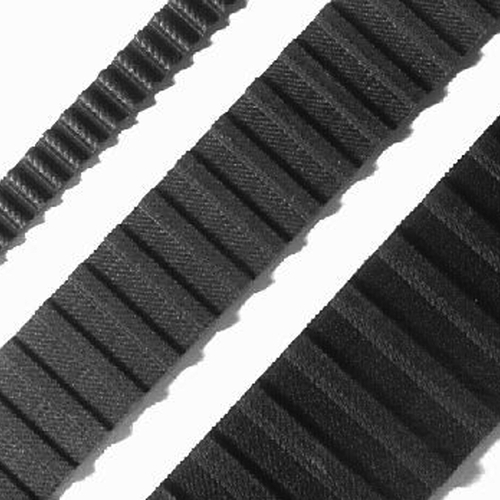

T timing belts made of polyurethane with pitch 2.5 or 5 mm. Light-coloured belts with little abrasion. For standard applications in machine building and food technology, to be used on T pulleys.

AT timing belts made of polyurethane with pitch 5 mm. Reinforced type for high loads with low space requirements. To be used on AT pulleys.

HTD timing belts made of neoprene with pitch 3, 5 or 8 mm. For high power transmission even at high speeds.

Black belts with dark abrasion (not for laboratory operations / food processing). To be used on HTD pulleys.

Notes on mounting and usage:

Pulleys must be aligned (precisely positioned)

The belt tension has to be adjusted (The overall sum of tensioning and peripheral force must not exceed the permitted tensile force of the belt.)

At least one pulley must be equipped with flanges.

And at least 6 teeth should be engaged at any time.

Timing belt drives run without lubrication.

General Information T / AT

Classical, trapezoid profile in accordance with DIN 7721 with metric dimensions

Type T: Standard type for normal set-ups in sizes T 2.5 and T5 in several widths. T timing belts only run on T pulleys.

Type AT: Reinforced type for the transmission of higher torques in size AT 5 in several widths. AT timing belts only run on AT pulleys. Due to their lower flexibility AT timing belts require a larger pulley diameter than T timing belts.

Pulleys available in aluminium (some also in plastic)

T and AT drives are not backlash-free

Good resistance against oils, fats and many chemicals

The timing belts are made of light-coloured plastic with little abrasion

Material: PUR - Polyurethane with tensile members of steel (little lengthening)

Temperature range: -30 to +80 °C

Pitch: T2.5: 2.5 mm; T5: 5.0 mm; AT5: 5.0 mm

Overall height: T2.5: 1.3 mm; T5: 2.2 mm; AT5: 2.7 mm

Tooth height: T2.5: 0.7 mm; T5: 1.2 mm; AT5: 1.2 mm

Tensile force: T2.5: 120 N; T5: 330 N; AT5: 700 N (permissible tensile force at 10 mm belt width)

Item Image Profile Riemenbreite
mm
zul. Riemenzugkraft
N
passende Klemmplatte Gewicht
g/m
Einheit
m
Price
Euro*
Buy
701211
T2,5 6 72 15 1 67.00
701212
T2,5 6 72 15 3 161.00
701213
T5 10 330 702703 25 1 34.00
701214
T5 10 330 702704 25 3 81.00
701215
T5 16 528 702705 40 1 53.00
701216
T5 16 528 702706 40 3 122.00
701217
T5 25 825 702707 63 1 75.00
701218
T5 25 825 702708 63 3 177.00
701219
AT5 10 700 702709 34 1 37.00
701220
AT5 10 700 702710 34 3 87.00
701221
AT5 16 1.120 702711 55 1 53.00
701222
AT5 16 1.120 702712 55 3 122.00
701223
AT5 25 1.750 702713 85 1 76.00
701224
AT5 25 1.750 702714 85 3 174.00
