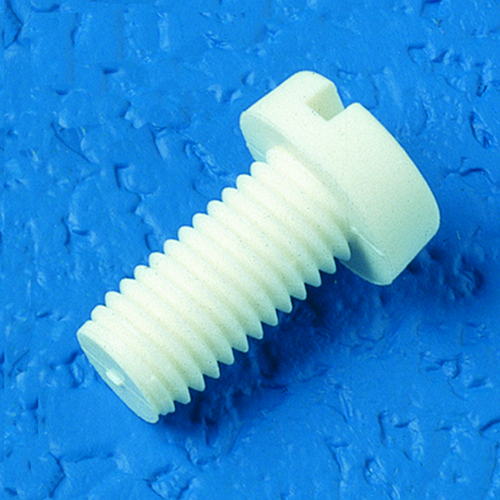

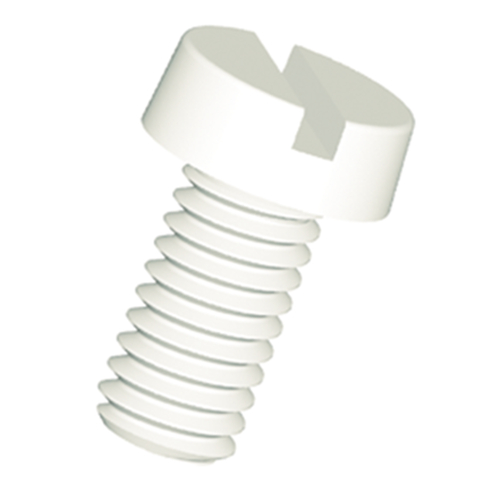

Slotted Cheese Head Screw (DIN 84) made of PA

Technical specification Material: PA 6.6 (polyamide 66) Colour: natural... more

Technical specification

Material: PA 6.6 (polyamide 66)

Colour: natural

Regulations: DIN 84, ISO 1207, NFE 27115, NFE 25127

General Information Good coefficient of sliding friction High mechanical stability and... more

General Information

Good coefficient of sliding friction

High mechanical stability and fatigue strength

Excellent resilience

Impact resistant

Resistant to abrasion

Resistant to cold

Chemical features:

Good resistance to weak alkalis, but only moderate resistance to strong alkalis; resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alcohols, esters, ketones, ethers and amines.

Material specification:

The polyamides are universal materials for mechanical functional parts

The temperature resistance of polyamide (from -30 to +100 °C, for a short time +120 °C) allows use in many industries

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Insulating properties and an amazingly high tensile strength

PA can also be used in the food processing industry and in medical fields

Resistant to corrosion and abrasion

Non-toxic and unmagnetic

Vibration-damping

PA 6.6 features the same chemical resistance as PA 6

PA 6.6 has a higher hardness, abrasion resistance, and a little higher operating temperature than PA 6

However, PA 6.6 is a little less impact resistant compared to PA 6

Material: PA 6.6 (polyamide 6.6)

Colour: natural

Density: 1.14 g/cm3 (DIN 53479)

Temperature range: -30 to +100 °C

Melting temperature: +255 °C (DIN 53736)

Yield stress: 83 N/mm2 (ISO 527)

Elongation at break: 30 % (DIN 53455)

Bending strength: 115 N/mm2 (DIN 53452)

Elastic modulus: 3,000 N/mm2 (DIN 53457)

Impact resistance (Charpy): without break (DIN 53453)

Notch impact strength (Izod): 60 J/m (ASTM D 256)

Coefficient of sliding friction against steel (dry): 0.35 - 0.42

Dielectric loss factor (at 1 MHz): 0.025 (DIN 53483)

Volume resistivity: 1015 Ohm x cm (DIN 53482)

Surface resistance: approx. 1014 Ohm (DIN 53482)

Comparative tracking index (CTI): >600 V (IEC 112)

Dielectric strength: approx. 40 kV/mm (DIN 53481)

Water absorption (saturation): approx. 8.5 % (DIN 53495)

Moisture absorption (s.c.a.-saturation): approx. 2.9 % (DIN 53714)

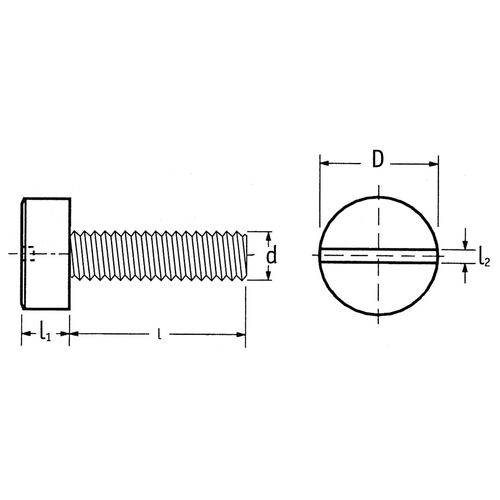

Item Image External thread Gewindelänge
mm
D
mm
l1
mm
l2
mm
Einheit
Stück
Price
Euro*
Buy
309186
M2 x 0,4 6 4 1 0,6 50 36.00
309187
M2 x 0,4 6 4 1 0,6 100 65.00
309188
M2 x 0,4 8 4 1 0,6 50 36.00
309189
M2 x 0,4 8 4 1 0,6 100 65.00
309190
M2 x 0,4 10 4 1 0,6 50 36.00
309191
M2 x 0,4 10 4 1 0,6 100 65.00
309192
M2 x 0,4 16 4 1 0,6 50 38.00
309193
M2 x 0,4 16 4 1 0,6 100 72.00
309194
M2 x 0,4 20 4 1 0,6 50 38.00
309195
M2 x 0,4 20 4 1 0,6 100 72.00
309196
M2,5 x 0,45 6 4,5 1,4 0,6 50 36.00
309197
M2,5 x 0,45 6 4,5 1,4 0,6 100 65.00
309198
M2,5 x 0,45 8 4,5 1,4 0,6 50 36.00
309199
M2,5 x 0,45 8 4,5 1,4 0,6 100 65.00
309200
M2,5 x 0,45 10 4,5 1,4 0,6 50 36.00
309201
M2,5 x 0,45 10 4,5 1,4 0,6 100 65.00
309202
M2,5 x 0,45 12 4,5 1,4 0,6 50 38.00
309203
M2,5 x 0,45 12 4,5 1,4 0,6 100 72.00
309204
M2,5 x 0,45 16 4,5 1,4 0,6 50 38.00
309205
M2,5 x 0,45 16 4,5 1,4 0,6 100 72.00
309206
M2,5 x 0,45 20 4,5 1,4 0,6 50 38.00
309207
M2,5 x 0,45 20 4,5 1,4 0,6 100 72.00
301433
M3 x 0,5 4 5,5 2 0,8 50 38.00
301434
M3 x 0,5 4 5,5 2 0,8 100 72.00
309208
M3 x 0,5 5 5,5 2 0,8 50 27.00
309209
M3 x 0,5 5 5,5 2 0,8 100 44.00
301435
M3 x 0,5 6 5,5 2 0,8 50 27.00
301436
M3 x 0,5 6 5,5 2 0,8 100 44.00
301437
M3 x 0,5 8 5,5 2 0,8 50 27.00
301438
M3 x 0,5 8 5,5 2 0,8 100 44.00
301439
M3 x 0,5 10 5,5 2 0,8 50 27.00
301440
M3 x 0,5 10 5,5 2 0,8 100 44.00
301441
M3 x 0,5 12 5,5 2 0,8 50 27.00
301442
M3 x 0,5 12 5,5 2 0,8 100 44.00
301443
M3 x 0,5 16 5,5 2 0,8 50 29.00
301444
M3 x 0,5 16 5,5 2 0,8 100 50.00
301447
M3 x 0,5 20 5,5 2 0,8 50 29.00
301448
M3 x 0,5 20 5,5 2 0,8 100 50.00
309212
M3 x 0,5 25 5,5 2 0,8 50 29.00
309213
M3 x 0,5 25 5,5 2 0,8 100 50.00
309214
M3 x 0,5 30 5,5 2 0,8 50 29.00
309215
M3 x 0,5 30 5,5 2 0,8 100 50.00
309216
M3 x 0,5 35 5,5 2 0,8 50 34.00
309217
M3 x 0,5 35 5,5 2 0,8 100 60.00
309218
M3 x 0,5 40 5,5 2 0,8 50 42.00
309219
M3 x 0,5 40 5,5 2 0,8 100 73.00
301449
M4 x 0,7 6 7 2,6 1,2 50 27.00
301450
M4 x 0,7 6 7 2,6 1,2 100 45.00
301451
M4 x 0,7 8 7 2,6 1,2 50 27.00
301452
M4 x 0,7 8 7 2,6 1,2 100 45.00
301453
M4 x 0,7 10 7 2,6 1,2 50 27.00
301454
M4 x 0,7 10 7 2,6 1,2 100 45.00
301455
M4 x 0,7 12 7 2,6 1,2 50 27.00
301456
M4 x 0,7 12 7 2,6 1,2 100 45.00
301457
M4 x 0,7 16 7 2,6 1,2 50 32.00
301458
M4 x 0,7 16 7 2,6 1,2 100 54.00
301461
M4 x 0,7 20 7 2,6 1,2 50 32.00
301462
M4 x 0,7 20 7 2,6 1,2 100 54.00
309222
M4 x 0,7 25 7 2,6 1,2 50 32.00
309223
M4 x 0,7 25 7 2,6 1,2 100 54.00
309224
M4 x 0,7 30 7 2,6 1,2 50 35.00
309225
M4 x 0,7 30 7 2,6 1,2 100 60.00
309226
M4 x 0,7 35 7 2,6 1,2 50 35.00
309227
M4 x 0,7 35 7 2,6 1,2 100 60.00
309228
M4 x 0,7 40 7 2,6 1,2 50 35.00
309229
M4 x 0,7 40 7 2,6 1,2 100 60.00
309230
M4 x 0,7 45 7 2,6 1,2 50 39.00
309231
M4 x 0,7 45 7 2,6 1,2 100 65.00
309232
M4 x 0,7 50 7 2,6 1,2 50 39.00
309233
M4 x 0,7 50 7 2,6 1,2 100 65.00
309256
M4 x 0,7 60 7 2,6 1,2 50 44.00
309257
M4 x 0,7 60 7 2,6 1,2 100 75.00
309234
M4 x 0,7 70 7 2,6 1,2 50 44.00
309235
M4 x 0,7 70 7 2,6 1,2 100 75.00
301463
M5 x 0,8 6 8,5 3,3 1,2 50 33.00
301464
M5 x 0,8 6 8,5 3,3 1,2 100 56.00
301465
M5 x 0,8 8 8,5 3,3 1,2 50 33.00
301466
M5 x 0,8 8 8,5 3,3 1,2 100 56.00
301467
M5 x 0,8 10 8,5 3,3 1,2 50 33.00
301468
M5 x 0,8 10 8,5 3,3 1,2 100 56.00
301469
M5 x 0,8 12 8,5 3,3 1,2 50 33.00
301470
M5 x 0,8 12 8,5 3,3 1,2 100 56.00
301471
M5 x 0,8 16 8,5 3,3 1,2 50 38.00
301472
M5 x 0,8 16 8,5 3,3 1,2 100 65.00
301473
M5 x 0,8 20 8,5 3,3 1,2 50 38.00
301474
M5 x 0,8 20 8,5 3,3 1,2 100 65.00
309238
M5 x 0,8 25 8,5 3,3 1,2 50 38.00
309239
M5 x 0,8 25 8,5 3,3 1,2 100 65.00
309240
M5 x 0,8 30 8,5 3,3 1,2 50 41.00
309241
M5 x 0,8 30 8,5 3,3 1,2 100 70.00
309242
M5 x 0,8 35 8,5 3,3 1,2 50 41.00
309243
M5 x 0,8 35 8,5 3,3 1,2 100 70.00
309244
M5 x 0,8 40 8,5 3,3 1,2 50 47.00
309245
M5 x 0,8 40 8,5 3,3 1,2 100 79.00
309246
M5 x 0,8 45 8,5 3,3 1,2 50 47.00
309247
M5 x 0,8 45 8,5 3,3 1,2 100 79.00
309248
M5 x 0,8 50 8,5 3,3 1,2 50 47.00
309249
M5 x 0,8 50 8,5 3,3 1,2 100 79.00
309250
M5 x 0,8 60 8,5 3,3 1,2 25 37.00
309251
M5 x 0,8 60 8,5 3,3 1,2 50 63.00
309252
M5 x 0,8 70 8,5 3,3 1,2 25 37.00
309253
M5 x 0,8 70 8,5 3,3 1,2 50 63.00
301475
M6 x 1 6 10 3,9 1,6 50 28.00
301476
M6 x 1 6 10 3,9 1,6 100 48.00
301477
M6 x 1 8 10 3,9 1,6 50 28.00
301478
M6 x 1 8 10 3,9 1,6 100 48.00
301479
M6 x 1 10 10 3,9 1,6 50 28.00
301480
M6 x 1 10 10 3,9 1,6 100 48.00
301481
M6 x 1 12 10 3,9 1,6 50 28.00
301482
M6 x 1 12 10 3,9 1,6 100 48.00
301483
M6 x 1 16 10 3,9 1,6 50 34.00
301484
M6 x 1 16 10 3,9 1,6 100 56.00
301485
M6 x 1 20 10 3,9 1,6 50 34.00
301486
M6 x 1 20 10 3,9 1,6 100 56.00
309258
M6 x 1 25 10 3,9 1,6 50 34.00
309259
M6 x 1 25 10 3,9 1,6 100 56.00
309260
M6 x 1 30 10 3,9 1,6 50 36.00
309261
M6 x 1 30 10 3,9 1,6 100 61.00
309262
M6 x 1 35 10 3,9 1,6 50 36.00
309263
M6 x 1 35 10 3,9 1,6 100 61.00
309264
M6 x 1 40 10 3,9 1,6 50 36.00
309265
M6 x 1 40 10 3,9 1,6 100 61.00
309210
M6 x 1 45 10 3,9 1,6 50 41.00
309211
M6 x 1 45 10 3,9 1,6 100 71.00
309266
M6 x 1 50 10 3,9 1,6 50 41.00
309267
M6 x 1 50 10 3,9 1,6 100 71.00
309268
M6 x 1 60 10 3,9 1,6 50 43.00
309269
M6 x 1 60 10 3,9 1,6 100 74.00
309270
M6 x 1 80 10 3,9 1,6 50 58.00
309271
M6 x 1 80 10 3,9 1,6 100 99.00
309272
M6 x 1 90 10 3,9 1,6 25 45.00
309273
M6 x 1 90 10 3,9 1,6 50 74.00
309274
M6 x 1 100 10 3,9 1,6 25 54.00
309275
M6 x 1 100 10 3,9 1,6 50 90.00
309276
M8 x 1,25 8 13 5 2 50 41.00
309277
M8 x 1,25 8 13 5 2 100 80.00
301487
M8 x 1,25 10 13 5 2 50 41.00
301488
M8 x 1,25 10 13 5 2 100 80.00
309278
M8 x 1,25 12 13 5 2 50 41.00
309279
M8 x 1,25 12 13 5 2 100 80.00
301489
M8 x 1,25 16 13 5 2 50 53.00
301490
M8 x 1,25 16 13 5 2 100 90.00
301491
M8 x 1,25 20 13 5 2 50 53.00
301492
M8 x 1,25 20 13 5 2 100 90.00
301493
M8 x 1,25 25 13 5 2 50 53.00
301494
M8 x 1,25 25 13 5 2 100 90.00
301495
M8 x 1,25 30 13 5 2 25 33.00
301496
M8 x 1,25 30 13 5 2 50 54.00
301497
M8 x 1,25 35 13 5 2 25 33.00
301498
M8 x 1,25 35 13 5 2 50 54.00
301499
M8 x 1,25 40 13 5 2 25 36.00
301500
M8 x 1,25 40 13 5 2 50 60.00
309282
M8 x 1,25 45 13 5 2 25 36.00
309283
M8 x 1,25 45 13 5 2 50 60.00
309284
M8 x 1,25 50 13 5 2 25 41.00
309285
M8 x 1,25 50 13 5 2 50 69.00
309288
M8 x 1,25 60 13 5 2 25 41.00
309289
M8 x 1,25 60 13 5 2 50 69.00
309290
M8 x 1,25 80 13 5 2 25 53.00
309291
M8 x 1,25 80 13 5 2 50 89.00
305928
M10 x 1,5 6 16 6 2,5 25 35.00
305931
M10 x 1,5 6 16 6 2,5 50 56.00
309294
M10 x 1,5 8 16 6 2,5 25 35.00
309295
M10 x 1,5 8 16 6 2,5 50 56.00
309296
M10 x 1,5 10 16 6 2,5 25 35.00
309297
M10 x 1,5 10 16 6 2,5 50 56.00
309298
M10 x 1,5 12 16 6 2,5 25 37.00
309299
M10 x 1,5 12 16 6 2,5 50 61.00
309300
M10 x 1,5 16 16 6 2,5 25 37.00
309301
M10 x 1,5 16 16 6 2,5 50 61.00
301501
M10 x 1,5 20 16 6 2,5 25 41.00
301502
M10 x 1,5 20 16 6 2,5 50 70.00
301503
M10 x 1,5 25 16 6 2,5 25 41.00
301504
M10 x 1,5 25 16 6 2,5 50 70.00
301505
M10 x 1,5 30 16 6 2,5 25 44.00
301506
M10 x 1,5 30 16 6 2,5 50 75.00
301507
M10 x 1,5 35 16 6 2,5 25 44.00
301508
M10 x 1,5 35 16 6 2,5 50 75.00
301509
M10 x 1,5 40 16 6 2,5 25 47.00
301510
M10 x 1,5 40 16 6 2,5 50 78.00
309302
M10 x 1,5 45 16 6 2,5 25 52.00
309303
M10 x 1,5 45 16 6 2,5 50 88.00
309304
M10 x 1,5 50 16 6 2,5 25 52.00
309305
M10 x 1,5 50 16 6 2,5 50 88.00
309306
M10 x 1,5 60 16 6 2,5 20 47.00
309307
M10 x 1,5 60 16 6 2,5 40 78.00
309310
M10 x 1,5 80 16 6 2,5 20 55.00
309311
M10 x 1,5 80 16 6 2,5 40 90.00
309318
M12 x 1,75 16 18 8 3 25 42.00
309319
M12 x 1,75 16 18 8 3 50 70.00
309320
M12 x 1,75 20 18 8 3 25 42.00
309321
M12 x 1,75 20 18 8 3 50 70.00
309322
M12 x 1,75 25 18 8 3 25 45.00
309323
M12 x 1,75 25 18 8 3 50 76.00
309324
M12 x 1,75 30 18 8 3 25 50.00
309325
M12 x 1,75 30 18 8 3 50 82.00
309312
M12 x 1,75 35 18 8 3 25 53.00
309313
M12 x 1,75 35 18 8 3 50 87.00
309326
M12 x 1,75 40 18 8 3 25 56.00
309327
M12 x 1,75 40 18 8 3 50 93.00
309314
M12 x 1,75 45 18 8 3 25 58.00
309315
M12 x 1,75 45 18 8 3 50 95.00
309328
M12 x 1,75 50 18 8 3 25 58.00
309329
M12 x 1,75 50 18 8 3 50 95.00
309330
M12 x 1,75 60 18 8 3 25 65.00
309331
M12 x 1,75 60 18 8 3 50 106.00
309334
M12 x 1,75 80 18 8 3 10 28.00
309335
M12 x 1,75 80 18 8 3 25 50.00
Similar products
Viewed
