Product specification
Fastening elements made of PTFE are ideally suitable for constructions under highest thermal and chemical load. Very good coefficient of sliding friction, therefore no sticking. Elements made of PTFE hardly get dirty due to their excellent antiadhesive properties.
Very good chemical resistance
Very high temperature resistance
Suitable for food contact applications
Extremely resistant to UV and weather, even under extreme climatic conditions
Chemical features:
Universal chemical resistance e.g. to fuming sulfuric and nitric acids except to molten or dissolved alkali metals, elementary fluorine, perfluorokerosene, chlorinetrifluoride as well as other fluorine compounds that attack the material at high pressures and temperatures.
Material specification:
PTFE is a fluoroplast with excellent resistance to acids, alkalis, solvents and gases.
Good electrical properties.
Sterilizable and usable in a temperature range from -200 to +260 °C depending on the degree of mechanical load.
No embrittlement, even when in contact with boiling helium (at -269 °C).
Machinable but bondable only after pretreatment.
Not resistant to fluorine compounds and molten alkali metals at higher temperatures.
Technical specification

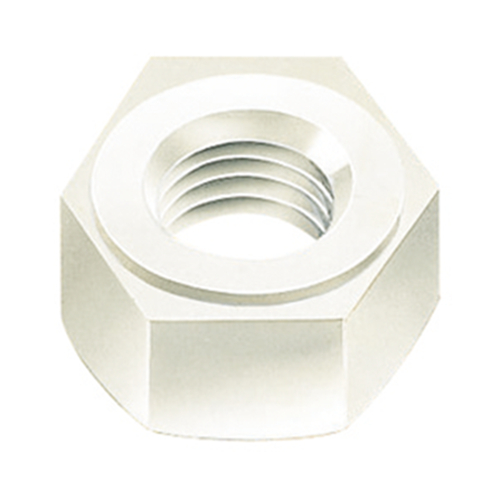

Material: PTFE (polytetrafluoroethylene)
Colour: milky white
Density: 2.14 - 2.19 g/cm3 (DIN 53479)
Temperature range: -200 to +260 °C, for a short time +280 °C
Melting point: +327 °C
Tensile modulus: 400 - 800 N/mm2 (DIN 53457)
Yield stress: 10 N/mm2 (DIN 53455)
Tearing strength: 29 - 39 N/mm2 (DIN 53456)
Elongation at break: 200 - 500 % (DIN 53455)
Notch impact strength: 16 kJ/m2 (DIN 53453)
Coefficient of sliding friction against steel (dry): approx. 0.18 - 0.23
Shore hardness D: 55° - 72° (DIN 53505)
Water absorption: <0.01 %
Volume resistivity: 1018 Ohm x cm (DIN 53482)
Surface resistance: 1017 Ohm (DIN 53482)
Dielectric constant: 2.1 at 50 Hz (DIN 53483)
Flammability rating: UL 94 V-0
Regulations: similar to DIN 934, DIN EN ISO 4032; conforming to FDA

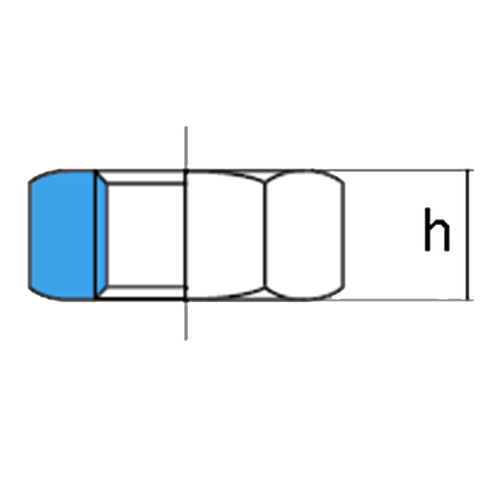

| Item | Image | Internal thread |
h mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 310098 |
|
M4 x 0,7 | 5 | 7 | 3 | 52.00 | |
| 310099 |
|
M4 x 0,7 | 5 | 7 | 10 | 157.00 | |
| 310100 |
|
M5 x 0,8 | 6 | 8 | 3 | 52.00 | |
| 310101 |
|
M5 x 0,8 | 6 | 8 | 10 | 157.00 | |
| 310106 |
|
M6 x 1 | 7,5 | 10 | 3 | 52.00 | |
| 310107 |
|
M6 x 1 | 7,5 | 10 | 10 | 157.00 | |
| 310130 |
|
M8 x 1,25 | 9 | 13 | 3 | 67.00 | |
| 310131 |
|
M8 x 1,25 | 9 | 13 | 10 | 197.00 | |
| 310132 |
|
M10 x 1,5 | 8,3 | 16 | 3 | 71.00 | |
| 310133 |
|
M10 x 1,5 | 8,3 | 16 | 10 | 202.00 | |
