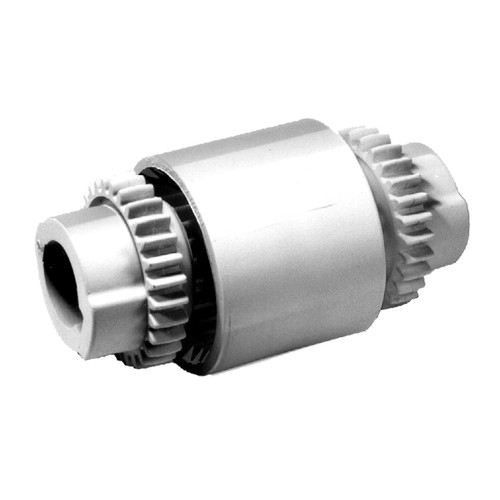

Curved-Tooth Gear Coupling Sleeve made of PA 6.6 (polyamide 6.6)

Technical specification Material of sleeve part: PA 6.6 (polyamide 6.6) Max. speed:... more

Technical specification

Material of sleeve part: PA 6.6 (polyamide 6.6)

Max. speed: 6,000 min-1

Permissible shaft disalignment: angular misalignment max. ±1° per hub part, axial displacement ±1 mm per hub part, radial misalignment max. 0.3 mm at 1,500 min-1 (at size 19: 0.35 mm).

The permissible displacement values are dependent on power and speed.

General Information Multi-part couplings with rounded teeth for connecting two shafts. Hubs... more

General Information

Multi-part couplings with rounded teeth for connecting two shafts.

Hubs made of resistant plastic for low to medium torques (food engineering)

Sleeve part or sleeve made of plastic, light and wear-resistant.

Hub parts and sleeve part or sleeve have to be ordered separately.

Torsionally-stiff and angle-compensating with axial movement.

For shaft diameters from 6 mm to 24 mm.

Ready-to-install with custom bore, feather keyway and set screw.

Easy mounting and dismounting without special tool.

Resistant to oils, fats, grease, fuels, various alcohols, esters, ketones, and grachatic hydrocarbons.

Not resistant against concentrated mineral acids, formic acid, kresol, glycol and benzyl alcohol.

Various possible combinations:

Two-part: 1 hub part plus 1 sleeve part

Three-part: 2 hub parts plus sleeve

Different hubs (various bores) can be combined with a sleeve. Each size (14, 19 or 24) has to match.

Material:

Casing: PA 6.6 (polyamide 6.6)

Hubs: plastics or sintered steel

Allen screws: steel, burnished

Temperature range: -25 to +100 °C, for short periods of time +120 °C

Custom bore: +0.05/-0.1 mm (with metal hub H7), feather keyway DIN 6885/1

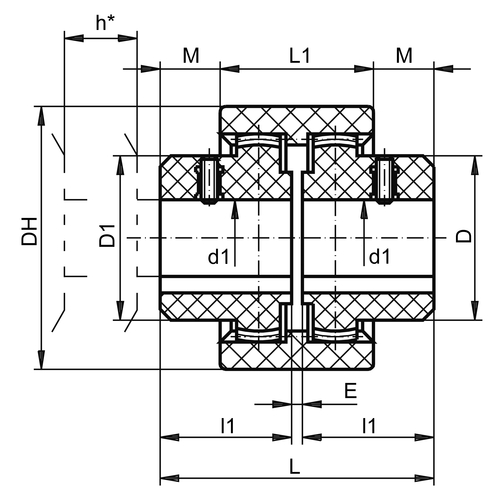

Item Image Size DH
mm
L
mm
L1
mm
E
mm
Weight
g
Einheit
Stück
Price
Euro*
Buy
705973
14 40 50 37 4 27 1 13.00
705974
14 40 50 37 4 27 2 22.00
705975
19 47 54 37 4 34 1 14.00
705976
19 47 54 37 4 34 2 24.00
705977
24 53 56 41 4 40 1 15.00
705978
24 53 56 41 4 40 2 26.00
