Product specification

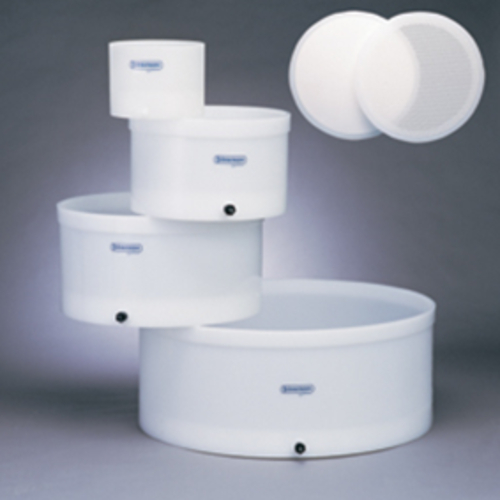

Büchner funnel with porous filter plate
Large volume, one piece design
Rugged and rigid polyethylene construction, ideal for heavy use
The filter plates made of HDPE (high density polyethylene) have a porosity of 45-90 µm and a thickness of 6.4 mm (1/4"). They are removable and allow an easy cleaning. All plates are supported by a multiple ring grid to prevent displacement under vacuum.

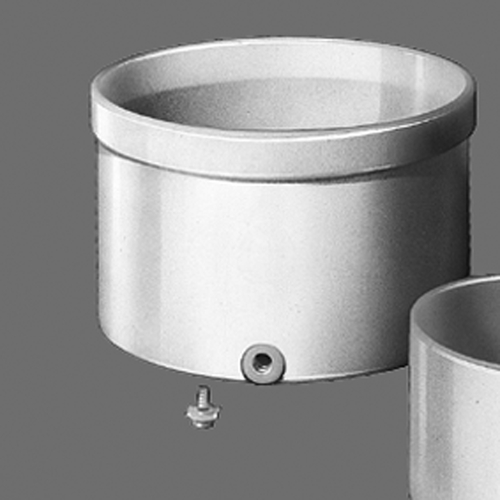

Vacuum connector fitting accepts 12.7 mm (1/2") I.D. tubing. The tube fitting is fixed on the 260 mm funnel and threads into 3/4" diameter NPT bung on all other models.
All Büchner funnels are rated for use below +50 °C.
| Item | Image |
Ø filter mm
|
Gesamthöhe mm
|
Innenhöhe mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 96260 |
|
260 | 203 | 127 | 1 | 960.00 | |
| 96261 |
|
457 | 292 | 229 | 1 | 2,171.00 | |
| 96263 |
|
610 | 330 | 267 | 1 | 4,542.00 | |
| 96262 |
|
914 | 375 | 305 | 1 | 7,114.00 | |
