Application area
Maintenance of working- and system-induced counterpressures as well as reduction and compensation of pressure peaks and pulsations in liquid conveying laboratory and pilot plants.
Product specification

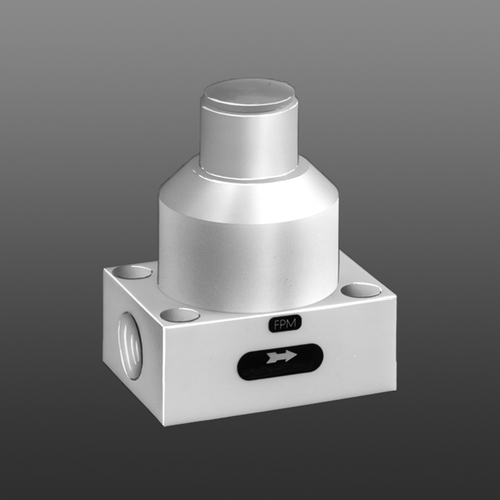

Maintenance-poor, adjustable compact diaphragm valve for screwed fitting into piping systems, adjustable also under working pressure; medium-contacting parts made of inert fluorocarbon polymer materials, with fastening holes for fixed mounting.
Technical specification
Adjustment range: 0.2 - 6.0 bar
Mounting position: optional

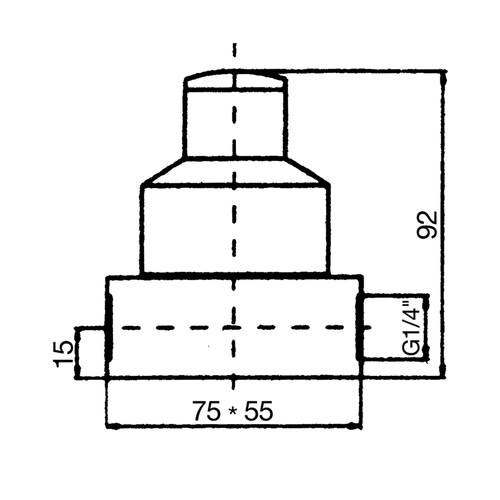

Dimensions (HxWxD): 92 x 75 x 35 mm
| Item | Image |
NW mm
| Internal thread |
PN1 bar
| Werkstoff Gehäuse | Werkstoff Membran | Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
NW mm
|
Internal thread
|
PN1 bar
|
Werkstoff Gehäuse
|
Werkstoff Membran
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|---|
| 16545 |
|
6 | G 1/4" | 6 | PTFE | PFA | FFKM | 1 | 1,198.00 | |
| 16546 |
|
6 | G 1/4" | 6 | PVDF | PFA | FFKM | 1 | 1,198.00 |
[1] at +20 °C
