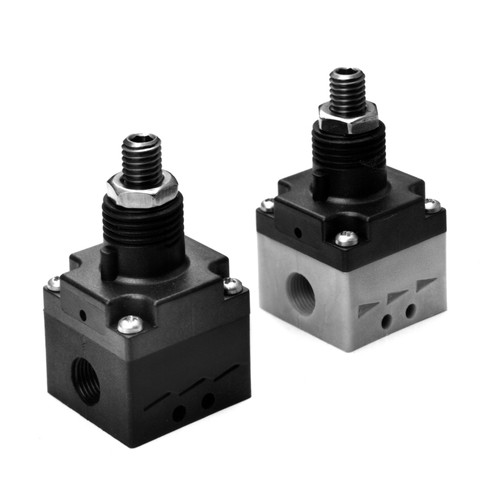

Pressurizing Valve for Liquids and Gases

Preview: Pressurizing Valve for Liquids and Gases Preview: Pressurizing Valve for Liquids and Gases
Pressurizing Valve for Liquids and Gases
Pressurizing Valve for Liquids and Gases

Description General Information
Description
Application area Compensation of pressure fluctuation, maintenance of constant... more
Close menu

Application area

Compensation of pressure fluctuation, maintenance of constant counterpressure in conveying and metering piping systems for highly pure liquids or gases, and for use as spill valve for protection of pumps, fittings, and lines in innovative research and production areas of chemical analytical technology, process engineering, chemical nuclear, technology, biotechnology, environmental technology and medical engineering

Product specification

Temperature-loadable, stepless by spindle head adjustable miniature regulation system based on a spring-loaded heavy duty diaphragm; all medium-contacting parts made of problem-oriented, chemically inert polymer material combinations, prepared for screwed pipe joint G 1/8".

Technical specification

Material:

Housing: PP or PVDF

Diaphragm: EPDM (ethylene-propylene); FPM (fluorinated rubber); FFKM (perfluorinated rubber)

Connection: G 1/8"

Pressure range: 0.5 - 6.5 bar (at +20 °C)

Max. permissible flow rate: liquids 3 l/min.; gases 150 Nl/min.

Max. temperature: +80 °C

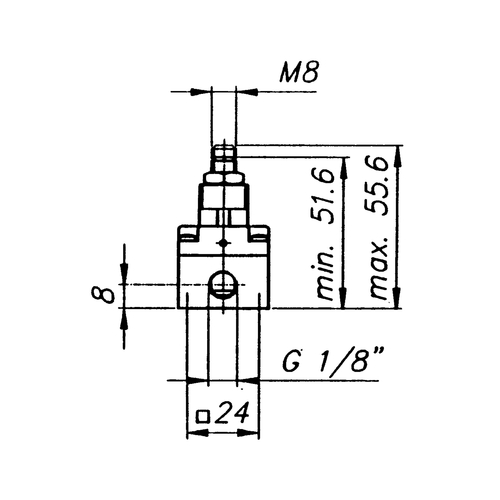

Dimensions (LxWxH): 30 x 24 x 51 mm

Weight: approx. 55 g

General Information
more
Close menu
No additional information available.
Item Image PN1
bar
 Material housing Werkstoff Membran Einheit
Stück
 Price
Euro* 		Buy
16483
2,5 PP EPDM 1 160.00
16484
6,5 PP EPDM 1 164.00
16485
2,5 PP FPM 1 175.00
16486
6,5 PP FPM 1 181.00
16487
2,5 PP FFKM 1 271.00
16488
6,5 PP FFKM 1 278.00
16489
2,5 PVDF FPM 1 213.00
16490
6,5 PVDF FPM 1 220.00
16491
2,5 PVDF FFKM 1 307.00
16492
6,5 PVDF FFKM 1 313.00
