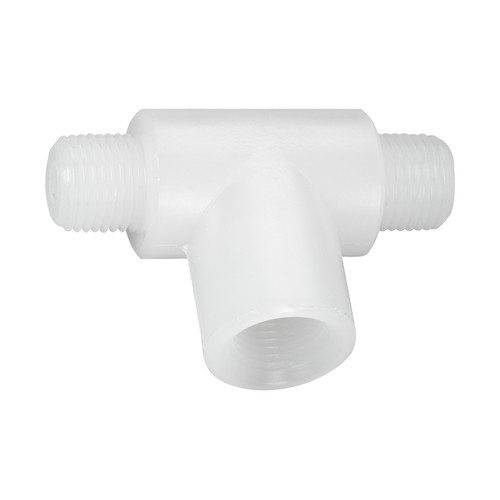

T-Reducing Nipple made of PP, PVDF or PFA

Product specification T-threaded sleeves on both sides external thread, other side internal... more

Product specification

T-threaded sleeves on both sides external thread, other side internal thread, in different sizes and materials.

The threads are produced seamlessly according to DIN, USAS and JIS.

General Information Material: PP , grey (polypropylene) Temperature range: +5 to... more

General Information

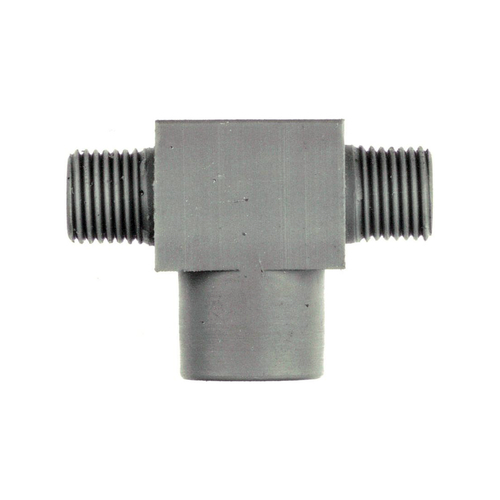

Material: PP, grey (polypropylene)

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PVDF, white (polyvinylidene fluoride)

Temperature range: -40 to +140 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Material: PFA, white (perfluoroalkoxy)

Temperature range: -150 to +180 °C

Max. operating pressure: 10 bar at +20 °C

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

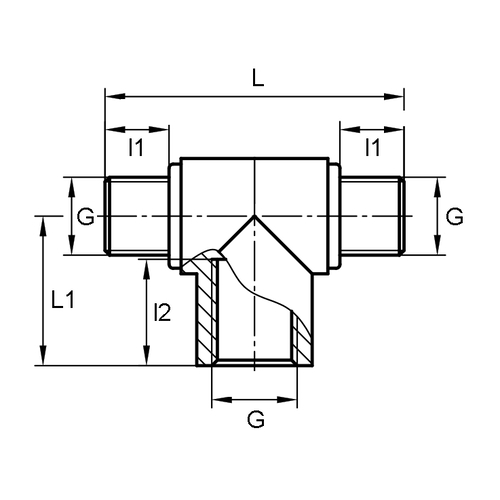

Item	External thread	Innengewinde	l1 mm	l2 mm	L mm	L1 mm	Werkstoff	Einheit Stück	Price Euro*
24364	G 1/8"	G 1/8"	8	10	40	20	PP	1	15.00
24365	G 1/8"	G 1/8"	8	10	40	20	PFA	1	93.00
24366	G 1/8"	G 1/8"	8	10	40	20	PVDF	1	64.00
24368	G 1/4"	G 1/4"	12	15	54	27	PP	1	24.00
24369	G 1/4"	G 1/4"	12	15	54	27	PFA	1	166.00
24370	G 1/4"	G 1/4"	12	15	54	27	PVDF	1	102.00
24372	G 3/8"	G 3/8"	12	15	60	30	PP	1	41.00
24373	G 3/8"	G 3/8"	12	15	60	30	PFA	1	180.00
24374	G 3/8"	G 3/8"	12	15	60	30	PVDF	1	111.00
24376	G 1/2"	G 1/2"	14	16	70	35	PP	1	50.00
24377	G 1/2"	G 1/2"	14	16	70	35	PFA	1	205.00
24378	G 1/2"	G 1/2"	14	16	70	35	PVDF	1	126.00
