Tensioning Rollers for Timing Belts

Application areas For tensioning on the outside of the belt (back of belt) Product... more

Application areas

For tensioning on the outside of the belt (back of belt)

Product specification

Ball bearing mounted, ready-to-install tensioning rollers with mounting screw

Mounted rigidly as idler or on tensioning element as elastic belt tensioner

Tensioning element has to be ordered separately (Cat. No. 700625 ff).

Maintenance-free

Technical specification

Material:

Roller: high-grade industrial plastic

Mounting screw: zinc-plated steel

Washer: zinc-plated steel

Nut: zinc-plated steel

Bearing: roller bearing steel, permanently lubricated and sealed

Temperature range: -20 to +80 °C

General Information Use for power transmission, bridging of large centre distances and... more

General Information

Use for power transmission, bridging of large centre distances and alteration of transmission ratios.

For various applications in machinery and plant engineering, in laboratory technology, in industrial and food processing plants, as well as in model making.

Quiet operation and synchronous transmission of power

Maintenance-free. Lubrication is not required.

High efficiency up to 98 %

Belt pre-tension is required

T timing belts made of polyurethane with pitch 2.5 or 5 mm. Light-coloured belts with little abrasion. For standard applications in machine building and food technology, to be used on T pulleys.

AT timing belts made of polyurethane with pitch 5 mm. Reinforced type for high loads with low space requirements. To be used on AT pulleys.

HTD timing belts made of neoprene with pitch 3, 5 or 8 mm. For high power transmission even at high speeds.

Black belts with dark abrasion (not for laboratory operations / food processing). To be used on HTD pulleys.

Notes on mounting and usage:

Pulleys must be aligned (precisely positioned)

The belt tension has to be adjusted (The overall sum of tensioning and peripheral force must not exceed the permitted tensile force of the belt.)

At least one pulley must be equipped with flanges.

And at least 6 teeth should be engaged at any time.

Timing belt drives run without lubrication.

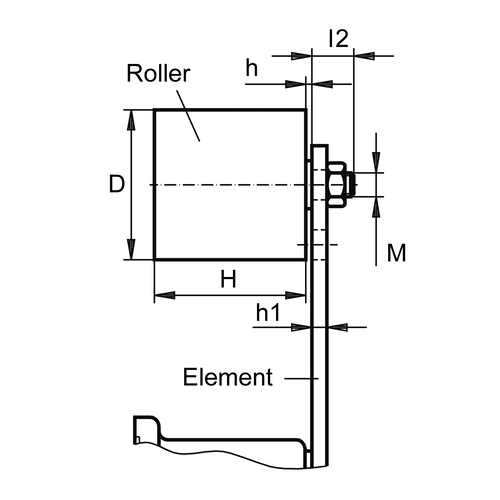

Item Image For size fo clamping element D
mm
H
mm
h
mm
h1 (max.)
mm
l2
mm
Thread (M) Weight
g
Unit
piece
Price
Euro*
Buy
702727
0 30 35 2 5 14 M8 80 1 56.00
702728
0 30 35 2 5 14 M8 80 3 132.00
702729
1 40 45 6 7 16 M10 170 1 68.00
702730
1 40 45 6 7 16 M10 170 3 156.00
702731
3 60 60 8 8 17 M12 400 1 90.00
702732
3 60 60 8 8 17 M12 400 3 204.00
