Application area
Reduction of systemic pressures in liquid conveying laboratory units and pilot plants.
Product specification

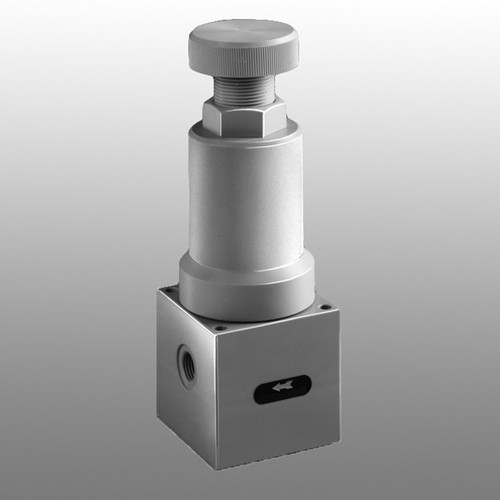

Compact diaphragm valve for mounting in piping systems for pressure reduction, cylindrical construction with good handle knurled knob for adjustment of operating pressure, adjustable also under operating pressure, medium-contacting parts made of inert polymer materials.
Technical specification
Material::
Diaphragm: TFM (fluoroplastic, similar to PTFE)
O-ring: FPM (fluorinated rubber)
Connection:
Nominal width: DN 5
Thread: G 1/4"
Kv-value: 0.35 m3/h
Regulation range: 0.1 up to 5 bar
Working pressure stability: +0.2 bar
Max. operating pressure: 6 bar at +20 °C
Mounting position: optional

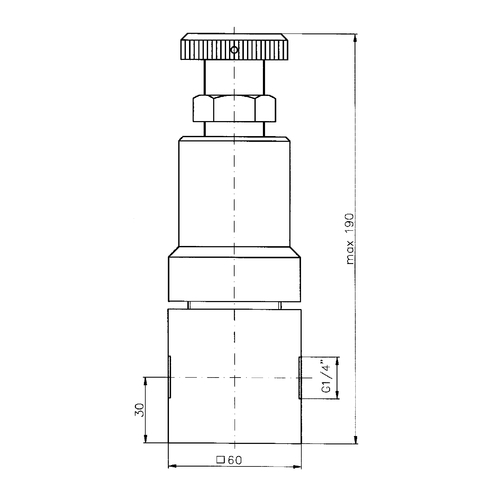

Dimensions:
Height: 182 mm (fully opened)
Diameter: 60 mm
| Item | Image |
NW mm
|
PN1 bar
|
Internal thread | Werkstoff |
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 16547 |
|
5 | 6 | G 1/4" | PP | 1 | 1,060.00 | |
| 16548 |
|
5 | 6 | G 1/4" | PTFE | 1 | 2,297.00 | |
| 16549 |
|
5 | 6 | G 1/4" | PVDF | 1 | 2,297.00 | |
