Application area
Weakly basic sorbent material reacting with all acidic gas components by salt formation (neutralization).
Product specification
Basic chemical sorbent filter material.
Weakly basic reaction.
Neutralization point visible with colour indicator.
Fine purification agent for air and inert gases.
Removal of carbon dioxide (CO2) with very high uptake capacity (450 g CO2 per kg sorbent material)
Removal of acidic gases of low concentration, such as H2S, SO2, SO3, HCl, HBr, HJ, HF, F2, Cl2, Br2, NO, NOx etc.
The sorbent material is not suitable for purification of concentrated acidic gases, as it reacts immediately under high temperature build-up.
Regeneration is not possible
Technical specification
Material: Ca(OH)2/NaOH calcium hydroxide/sodium hydroxide
Colour: green (indicator); brown (saturated after neutralization)

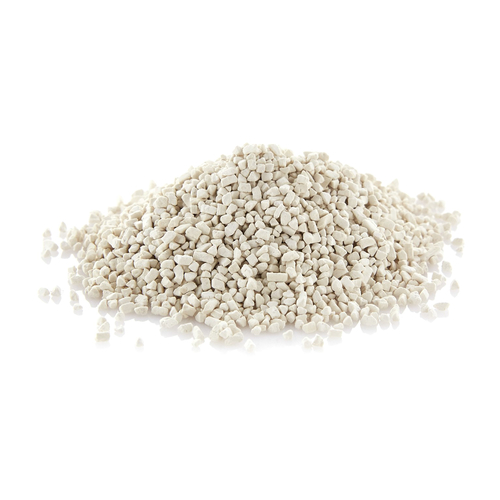

Shape: pieces, size approx. 1.0-2.5 mm (as granular material)
Bulk volume: approx. 900 g/l
Content: H2O 18 ±2 % by weight; NaOH <3.5 % by weight
Adsorption capacity: CO2 34 ±2 % by weight (USP test, 100 % CO2); 21 ±2 % by weight (5 % CO2 in air at 60 % rel. humidity)
Contact time: 0.5 - 1.8 sec.
Temperature range: 0 to +35 °C
Relative air humidity: 20 - 95 %
General Information Granular Material
Separation of solid or liquid particles out of gases.
Production of pure and purest reference and analysis gases by mechanical separation (filtration) as well as physical and chemical separation (adsorption and catalysis).
Fine gas purification is performed by catalysis and adsorption allowing reduction of contaminants up to few ppb.
| Item | Image |
Volume ml
|
Sorbensmenge g
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|
| 303079 |
|
250 | 220 | 1 | 91.00 | |
| 303080 |
|
500 | 450 | 1 | 124.00 | |
| 303081 |
|
1.000 | 900 | 1 | 193.00 | |
| 303082 |
|
2.500 | 2.250 | 1 | 338.00 | |
| 303083 |
|
4.000 | 3.600 | 1 | 466.00 | |
