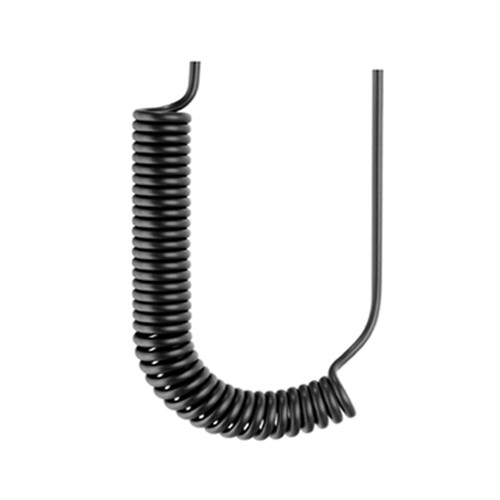

PUR Anti-Spark Spiral Tubing without Fittings

PUR Anti-Spark Spiral Tubing without Fittings
Description General Information
Description
Product specification Spiral tubing with strong elastic force Extremely resistant to flying... more
Close menu

Product specification

Spiral tubing with strong elastic force

Extremely resistant to flying firebrands and welding spatter

Very good kink resistance

Highest elasticity and flexibility

Fluorine-, halogen- and silicone-free, as well as free of lacquer wetting substances

UV-resistant, extremely flame retardant

Calibrated according to CETOP standard

Suitable for trailing cables, long service life

Good chemical resistance to gasoline, cyclohexane, diesel oil, isooctane, kerosine.

Technical specification

Material: PUR (polyurethane)

Colour: black

Temperature range: -20 to +100 °C

Max. operating pressure: 15 bar at +20 °C

Flammability rating: UL 94 V-0

Connection nozzles: on one side 100 mm, on the other side 500 mm

General Information
more
Close menu
No additional information available.
Item Image Inside Ø
mm
 Außen-Ø
mm
 Spiral-Ø außen
mm
 Blocklänge
mm
 Arbeitslänge
m
 Einheit
Stück
 Price
Euro* 		Buy
330953
6 10 52 320 3 1 193.00
330954
6 10 52 550 6 1 251.00
330955
6 10 52 660 8 1 289.00
330956
8 13 68 280 3 1 270.00
330957
8 13 68 560 6 1 366.00
330958
8 13 68 650 8 1 424.00
Accessories
Accessories 4
330969 Screw-in connector with antikink protection and male thread R
330976 Screw-on connector with antikink protection and female G-thread
330998 Quick-release coupling with antikink protection - female part
331006 Quick-release plug with antikink protection - male part
