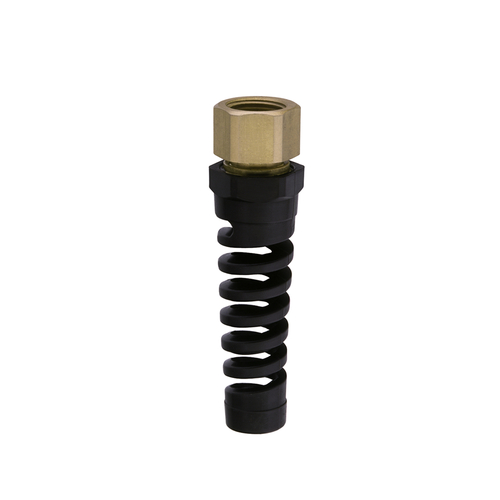

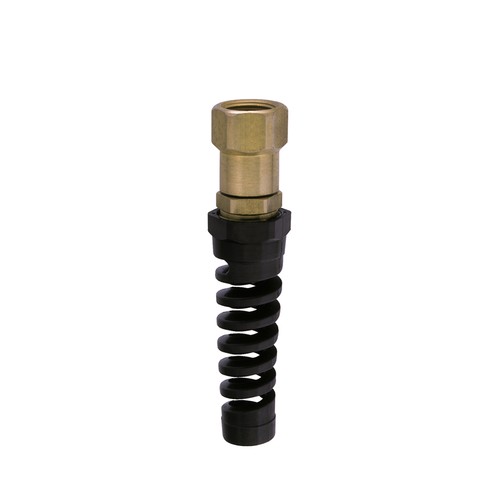

Screw-on connector with antikink protection and female G-thread
Item |
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
Innengewinde |
NW mm
|
Werkstoff | Ausführung |
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|
330976 | 4 | 6 | G 1/4" | 3 | Messing | drehbar | 5 | 73.00 | |
330977 | 5 | 8 | G 1/4" | 4,5 | Messing | drehbar | 5 | 75.00 | |
330978 | 6,5 | 10 | G 1/4" | 5,5 | Messing | drehbar | 5 | 81.00 | |
330979 | 8 | 12 | G 1/4" | 7 | Messing | drehbar | 5 | 86.00 | |
330980 | 8 | 12 | G 3/8" | 7 | Messing | drehbar | 5 | 88.00 | |
330981 | 9 | 13 | G 3/8" | 8 | Messing | drehbar | 5 | 102.00 | |
330991 | 4 | 6 | G 1/4" | 3 | Messing | starr | 5 | 52.00 | |
330992 | 5 | 8 | G 1/4" | 4,5 | Messing | starr | 5 | 54.00 | |
330993 | 6,5 | 10 | G 1/4" | 5,5 | Messing | starr | 5 | 58.00 | |
330994 | 8 | 12 | G 1/4" | 7 | Messing | starr | 5 | 63.00 | |
330995 | 8 | 12 | G 3/8" | 7 | Messing | starr | 5 | 63.00 | |
330996 | 9 | 13 | G 3/8" | 8 | Messing | starr | 5 | 75.00 | |
330982 | 11 | 16 | G 1/2" | 10 | Stahl | drehbar | 3 | 113.00 | |
330997 | 11 | 16 | G 1/2" | 10 | Stahl | starr | 3 | 71.00 |
