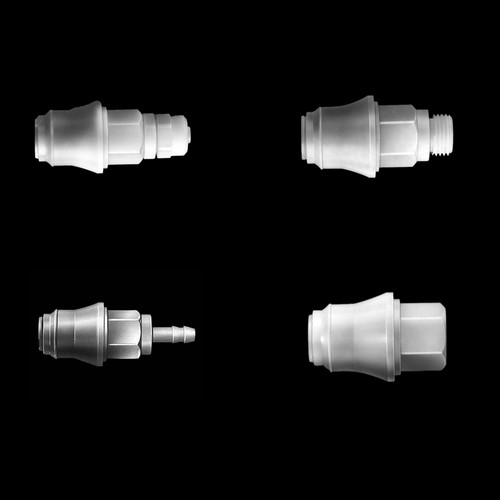

POM Quick-Disconnect Coupling, NW 5 mm

Product specification Female coupling part. With shut-off and hose nozzle; thread or pipe... more

Product specification

Female coupling part. With shut-off and hose nozzle; thread or pipe screwed fitting for piping connection. Can be combined with all male coupling parts of nominal width 5 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information POM

For compressed air, gases, liquids, and vacuum, floor cleaning equipment, filtration of deionized water, dispensing equipment, automated machines, compression therapy, leak detectors.

The coupling parts (couplings and nipples) are made of thermoplastic acetal in the injection-moulding process. They are robust and usable with the most mild chemicals.

Resistant to alcohol, aldehydes, petrol, ethers, esters, glykols and motor oils, within the pH range of 4 to 9 also to alkalis and acids.

General Information 5 mm nominal width

Temperature and pressure loadable plug-in coupling parts for lower flow rates, biocompatible, made of impact-resistant polymer material.

Material:

Valve body: POM, black (polyacetal, polyoxymethylene)

Gasket: NBR (butadiene-rubber)

Valve spring: stainless steel 1.4310

Colour: black

Nominal width: 5 mm

Plug diameter: approx. 8.5 mm

Temperature range: -20 to +80 °C

Max. operating pressure: 10 bar at +20 °C

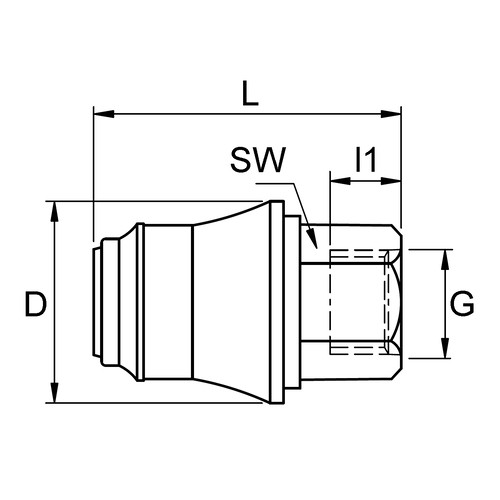

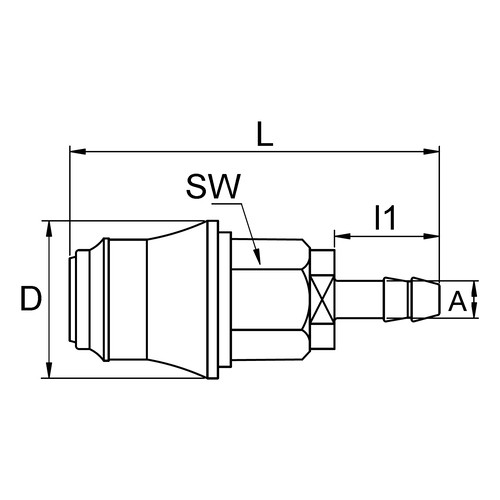

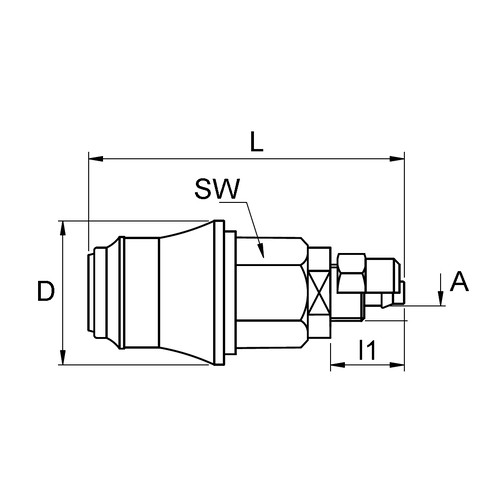

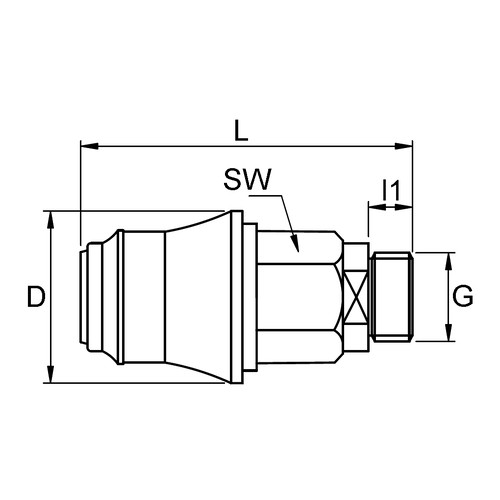

Item Image Connection Ventil D
mm
Länge
mm
l1
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy

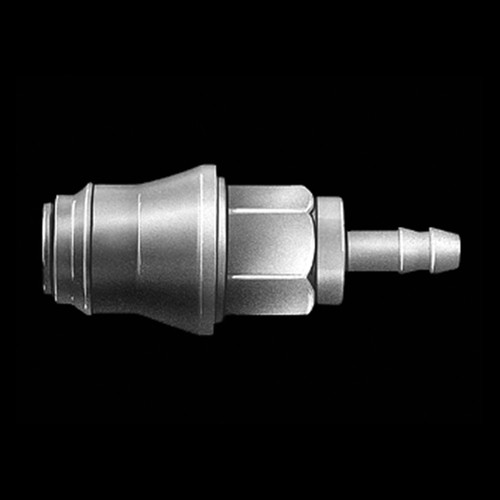

15847
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
Tülle 4 mm mit 25,5 60 17 17 1 32.00
15848
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
Tülle 6 mm mit 25,5 60 17 17 1 32.00
15851
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
Rohr 6 mm mit 25,5 56 13 17 1 35.00

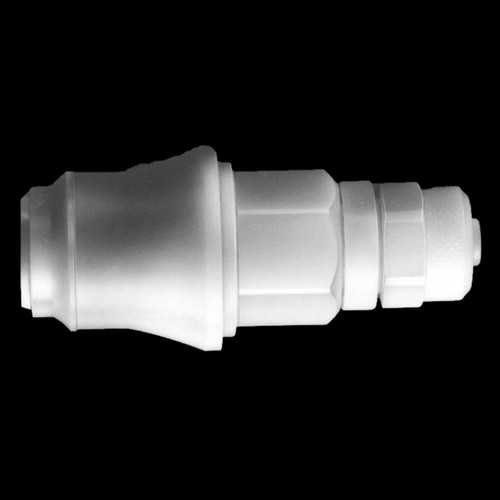

15852
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
Rohr 8 mm mit 25,5 56 13 17 1 35.00

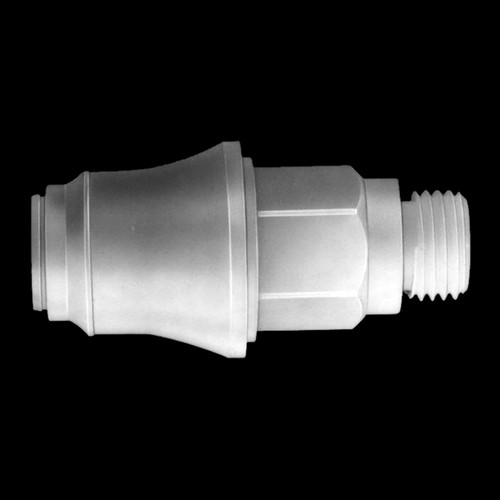

15855
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
A-Gewinde G 1/8" mit 25,5 50 7 17 1 32.00
15856
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
A-Gewinde G 1/4" mit 25,5 50 7 17 1 32.00
15857
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
I-Gewinde G 1/8" mit 25,5 53 8 17 1 32.00

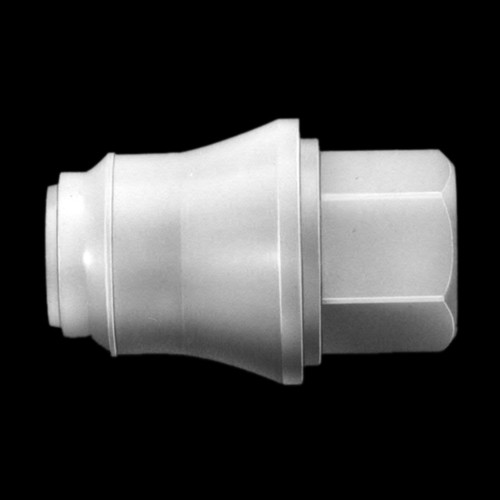

15858
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
POM Quick-Disconnect Coupling, NW 5 mm POM Quick-Disconnect Coupling, NW 5 mm
I-Gewinde G 1/4" mit 25,5 39 9 17 1 32.00
