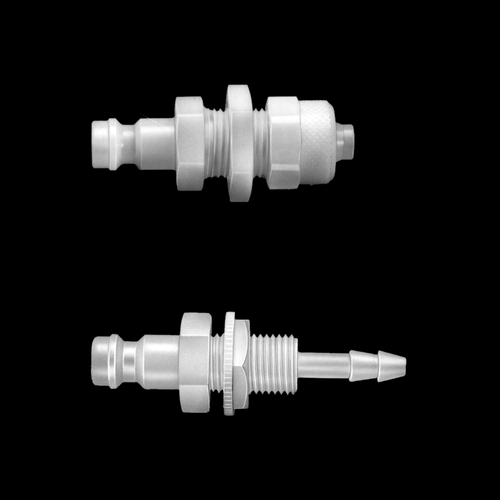

POM Quick-Disconnect Nipple, NW 5 mm - Control Panel

Product specification Male coupling part. With port or shut-off and hose nozzle or pipe... more

Product specification

Male coupling part. With port or shut-off and hose nozzle or pipe screwed fitting for control panel mounting. Can be combined with all female coupling parts of nominal width 5 mm.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

General Information POM

For compressed air, gases, liquids, and vacuum, floor cleaning equipment, filtration of deionized water, dispensing equipment, automated machines, compression therapy, leak detectors.

The coupling parts (couplings and nipples) are made of thermoplastic acetal in the injection-moulding process. They are robust and usable with the most mild chemicals.

Resistant to alcohol, aldehydes, petrol, ethers, esters, glykols and motor oils, within the pH range of 4 to 9 also to alkalis and acids.

General Information 5 mm nominal width

Temperature and pressure loadable plug-in coupling parts for lower flow rates, biocompatible, made of impact-resistant polymer material.

Material:

Valve body: POM, black (polyacetal, polyoxymethylene)

Gasket: NBR (butadiene-rubber)

Valve spring: stainless steel 1.4310

Colour: black

Nominal width: 5 mm

Plug diameter: approx. 8.5 mm

Temperature range: -20 to +80 °C

Max. operating pressure: 10 bar at +20 °C

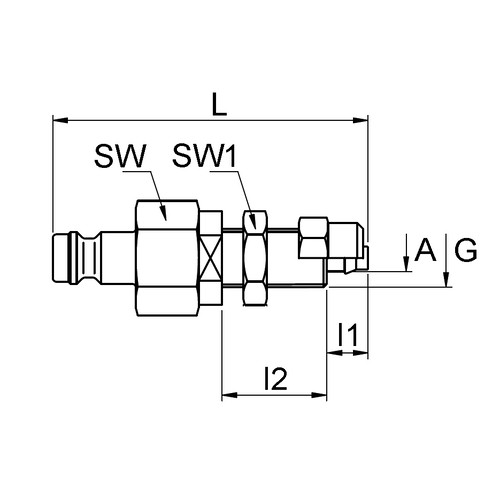

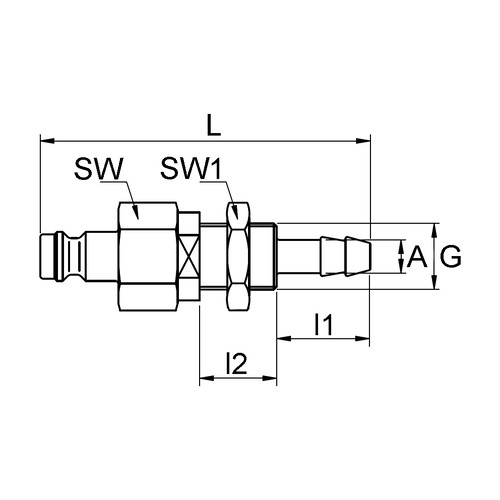

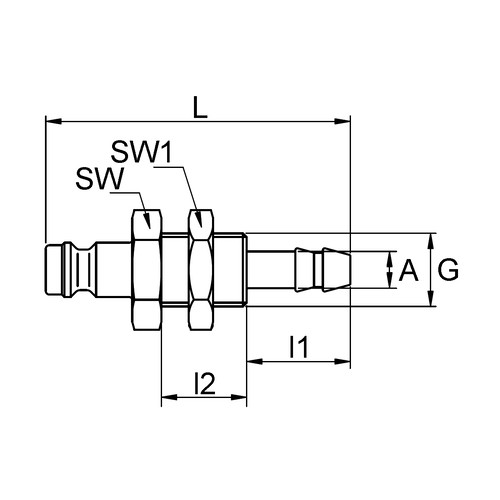

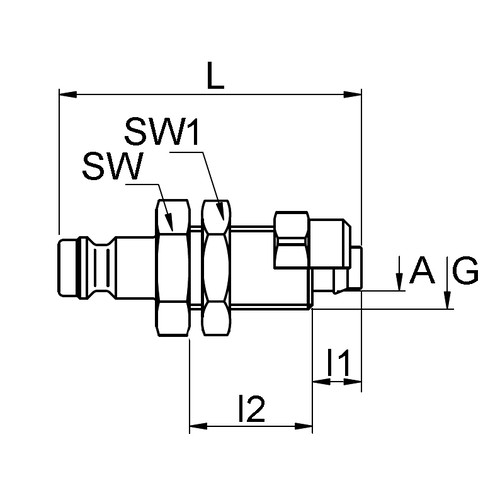

Item Image Connection Ventil Länge
mm
l1
mm
l2
mm
Schott-Ø
mm
SW
mm
SW1
mm
Einheit
Stück
Price
Euro*
Buy
15873
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel

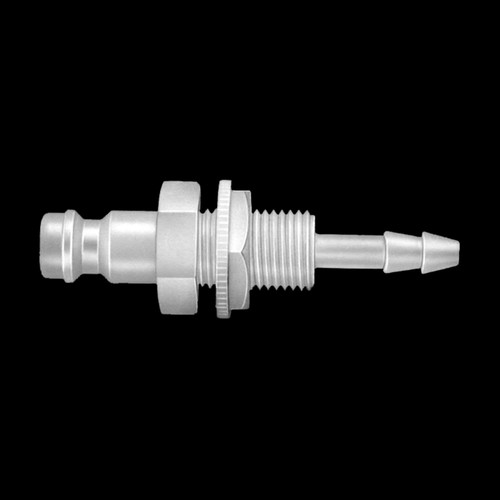

Tülle 4 mm ohne 50 17 14 10 14 14 5 42.00
15874
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
Tülle 6 mm ohne 50 17 14 12 14 17 5 42.00
15878
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel

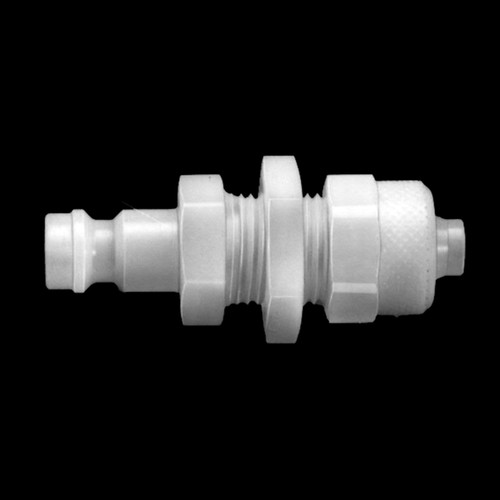

Rohr 8 mm ohne 44 7 18 12 14 14 5 50.00
15897
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel

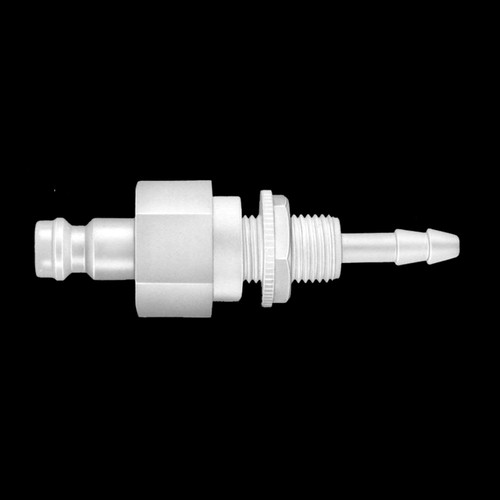

Tülle 4 mm mit 60 7 14 10 17 14 1 22.00
15898
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
Tülle 6 mm mit 60 7 14 12 17 17 1 22.00
15901
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel

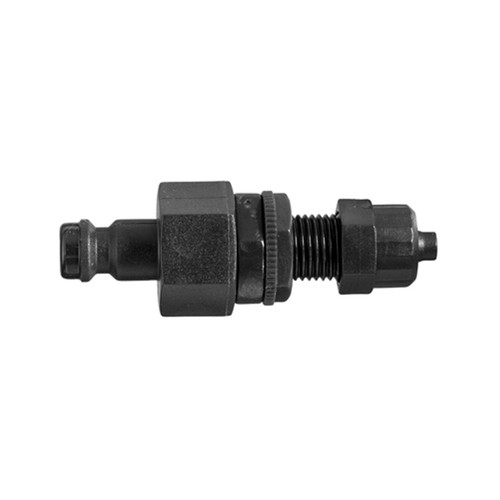

Rohr 6 mm mit 54 7 18 10 17 14 1 23.00
15902
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
POM Quick-Disconnect Nipple, NW 5 mm - Control Panel POM Quick-Disconnect Nipple, NW 5 mm - Control Panel
Rohr 8 mm mit 54 7 18 12 17 17 1 23.00
