PA Quick-Disconnect Coupling, NW 6.0 mm
Product specification
Female coupling part. With shut-off and hose nozzle or thread for piping connection. Can be combined with all male coupling parts of nominal width 6.0 mm.
General Information Quick-Disconnect Coupling
THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

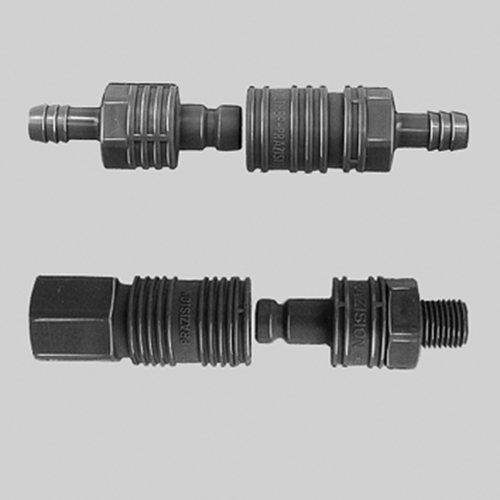

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.
General Information Polyamide
PA 11/12 (polyamide 11/12) features a good resistance to oils, fats and lubricants as well as weak alkalis. The THOMAFLUID®-coupling parts are especially resistant to glycols, ketones, alkalis, paraffins, salt solutions, toluene and xylene.
Material:
Valve body: PA 11/12 (polyamide 11/12), grey
Gaskets: NBR (butadiene-rubber)
Valve spring: stainless steel 1.4571
Colour: grey
Nominal width: 6 mm
Plug diameter: approx. 11.9 mm
Max. operating pressure: 12 bar at +20 °C
Item | Image | Connection | Ventil |
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|

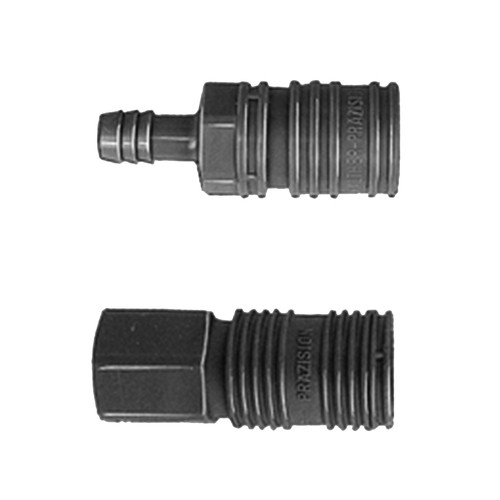

15985 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
Tülle 7 mm | mit | 68,3 | 1 | 64.00 | |

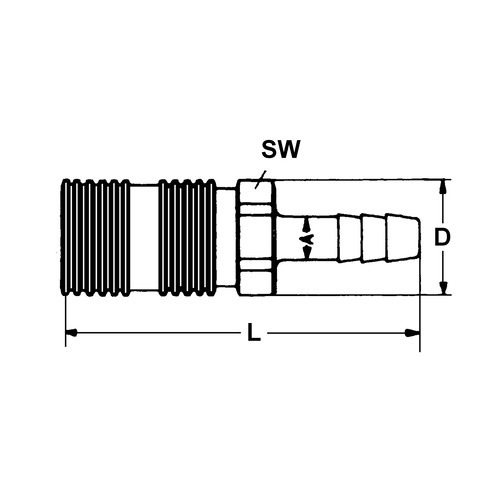

15986 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
Tülle 9 mm | mit | 73,3 | 1 | 65.00 | |
15987 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
Tülle 11 mm | mit | 73,3 | 1 | 68.00 | |

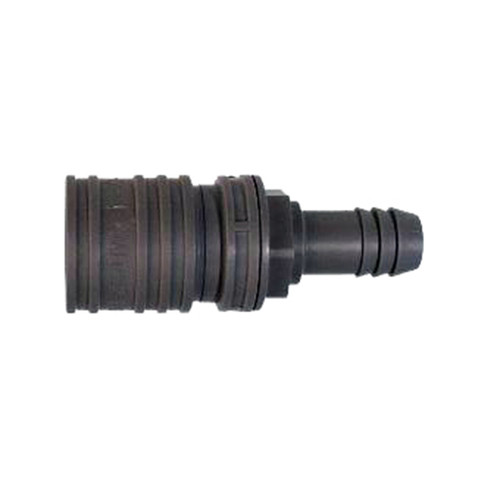

15988 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
Tülle 13 mm | mit | 73,3 | 1 | 70.00 | |
15989 |
PA Quick-Disconnect Coupling, NW 6.0 mm
|
A-Gewinde G 1/4" | mit | 55,3 | 1 | 68.00 | |
15990 |
PA Quick-Disconnect Coupling, NW 6.0 mm
|
A-Gewinde G 3/8" | mit | 55,3 | 1 | 69.00 | |

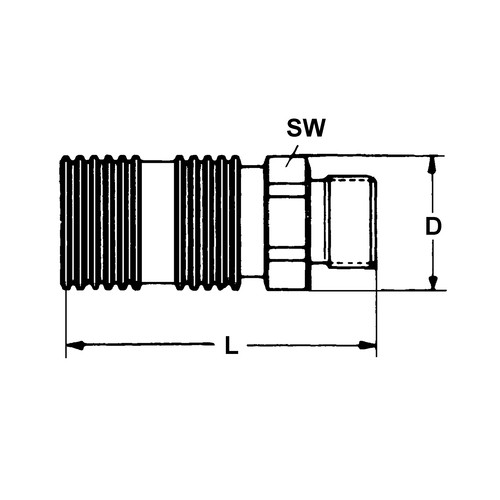

15991 |
PA Quick-Disconnect Coupling, NW 6.0 mm
|
A-Gewinde G 1/2" | mit | 55,3 | 1 | 70.00 | |
15992 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
I-Gewinde G 1/4" | mit | 57,3 | 1 | 68.00 | |

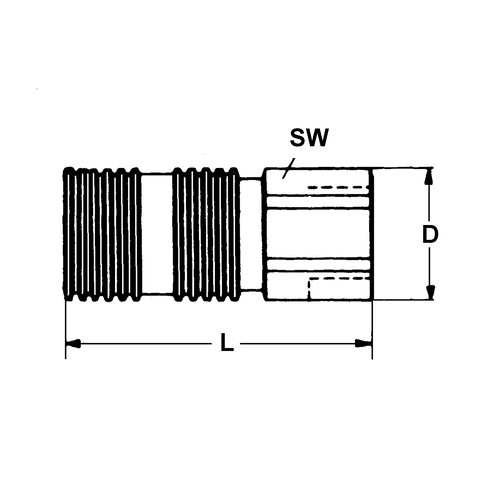

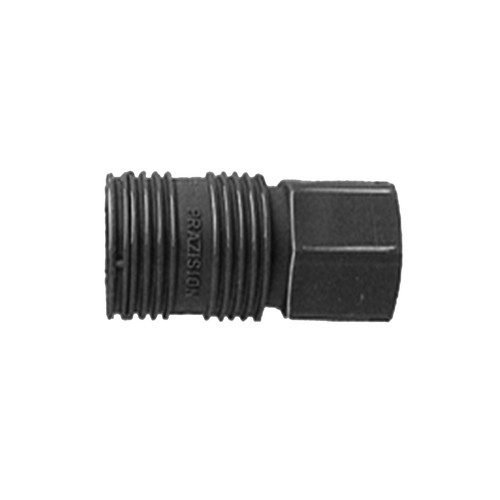

15993 |
PA Quick-Disconnect Coupling, NW 6.0 mm
PA Quick-Disconnect Coupling, NW 6.0 mm
|
I-Gewinde G 3/8" | mit | 57,3 | 1 | 70.00 |
