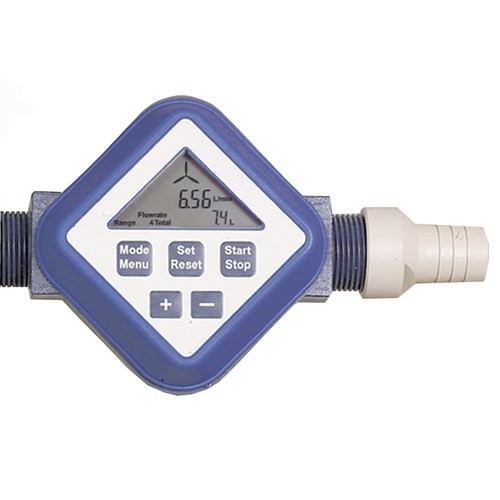

Electronic Flowmeter made of PP

Electronic Flowmeter made of PP
Description General Information
Description
Product specification Electronic flowmeter with large, clearly arranged display and foil... more
Close menu

Product specification

Electronic flowmeter with large, clearly arranged display and foil keyboard to be used for input of user´s parameter.

Indication of current flow rate, total volume of liquid and indicator of measuring process.

Precalibrated for media like water, in-field calibration capabilities for other low viscosity media.

Durable lithium battery for a service life up to 5 years

Also suitable for aggressive liquids: e.g. hydrochloric acid, sodium hydroxide solution, citric acid, seawater

Technical specification

Material:

Housing: PP (polypropylene)

Wheel: PVDF (polyvinylidene fluoride)

Shaft: Hastelloy C (2.4610)

Seal: FPM (fluorinated rubber)

Max. operating pressure: 6 bar

Bursting pressure: max. 10 bar

Viscosity: up to 20 mPas

Measurement range: 20 - 120 l/min

Accuracy of measurement: ±1 % (calibrated)

Measurement resolution: 0.03 l

Display resolution: 0.05 l

Repeatability: ±0.5 %

Temperature range:

Monitoring medium: +5 to +30 °C

Environment: +5 to +50 °C

Storage: -10 to +60 °C (free from medium)

Connection: external thread G 1"

Voltage: Li-battery, 3.6 V=, 2300 mAh, Type AA

Dimensions: 163 x 125 x 71 mm

Weight: approx. 300 g

General Information
more
Close menu
No additional information available.
Item Image Measuring range liquids1
l/min.
 Einheit
Stück
 Price
Euro* 		Buy
339648
20 - 120 1 617.00
