Rectangular Profile made of CR

Technical specification Material: CR (chloroprene rubber) Colour: black Shore... more

Technical specification

Material: CR (chloroprene rubber)

Colour: black

Shore hardness A: 65° ±5° (DIN 53505)

Temperature range: -20 to +90 °C

Tolerance: DIN ISO 3302-1 E2

General Information Good elastic behavior Good abrasion resistance Good resistance to... more

General Information

Good elastic behavior

Good abrasion resistance

Good resistance to aging, weather, and ozone

High flame-resistance

Good resistance to diluted acids and alkalis, limited resistance to mineral oils (swelling)

Poor resistance to solvents and steam

Chemical features:

CR is a all-round synthetic rubber basing on polychloroprene.

Chloroprene rubber is vulcanized in different systems influencing parameters such as compressibility, oil resistance, weather resistance, and tendency to crystallization.

Use in contact with mineral oils possible, although swelling is stronger compared to NBR, depending on the respective compound specification.

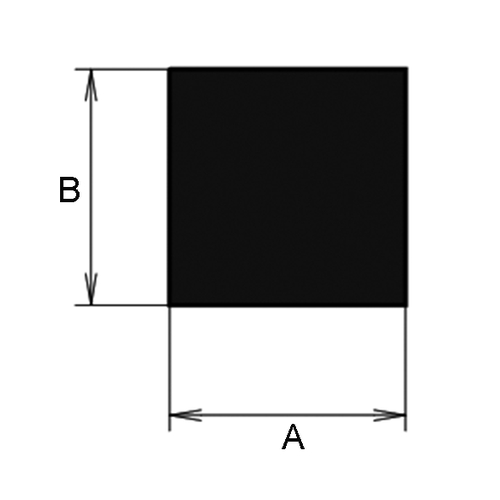

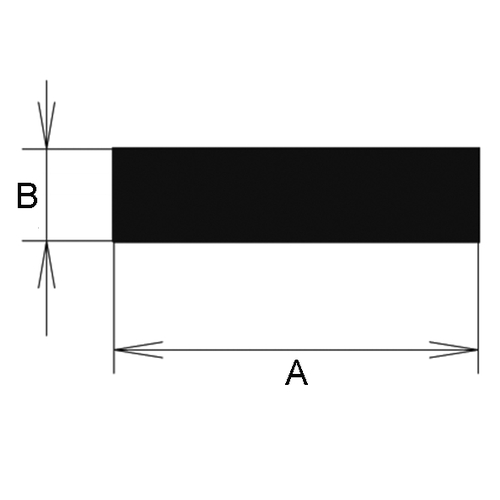

Item Image A
mm
B
mm
Weight
g/m
Unit
m
Price
Euro*
Buy
13526
3 3 12 5 69.00
13527
3 3 12 10 121.00
13528
5 5 33 5 80.00
13529
5 5 33 10 136.00
13530
6 6 47 5 85.00
13531
6 6 47 10 156.00
13532
8 8 84 5 139.00
13533
8 8 84 10 254.00
13534
10 10 130 5 131.00
13535
10 10 130 10 238.00
13536
12 12 188 5 136.00
13537
12 12 188 10 243.00
13538
14 14 260 3 108.00
13539
14 14 260 5 162.00
13540
16 16 295 3 116.00
13541
16 16 295 5 177.00
13542
20 20 525 3 133.00
13543
20 20 525 5 202.00
13544
10 1 13 5 49.00
13545
10 1 13 10 87.00
13546
15 1 20 5 52.00
13547
15 1 20 10 92.00
13548
20 1 26 5 54.00
13549
20 1 26 10 100.00
13550
30 1 39 5 72.00
13551
30 1 39 10 136.00
13552
10 2 26 5 80.00
13553
10 2 26 10 144.00
13554
15 2 39 5 87.00
13555
15 2 39 10 161.00
13556
20 2 52 5 95.00
13557
20 2 52 10 172.00
13558
25 2 65 5 108.00
13559
25 2 65 10 194.00
13560
30 2 78 5 110.00
13561
30 2 78 10 200.00
13562
40 2 105 5 113.00
13563
40 2 105 10 205.00
13564
15 3 59 5 100.00
13565
15 3 59 10 182.00
13566
20 3 78 5 115.00
13567
20 3 78 10 207.00
13568
25 3 98 5 126.00
13569
25 3 98 10 233.00
13570
10 4 52 5 80.00
13571
10 4 52 10 146.00
13572
20 4 105 5 133.00
13573
20 4 105 10 240.00
13574
30 4 160 5 138.00
13575
30 4 160 10 253.00
13576
40 4 210 3 105.00
13577
40 4 210 5 166.00
13578
10 5 65 5 113.00
13579
10 5 65 10 208.00
13580
15 5 98 5 118.00
13581
15 5 98 10 215.00
13582
20 5 130 5 136.00
13583
20 5 130 10 251.00
13584
25 5 165 5 141.00
13585
25 5 165 10 261.00
13586
30 5 195 5 143.00
13587
30 5 195 10 263.00
13588
40 5 260 3 97.00
13589
40 5 260 5 161.00
13590
50 5 325 3 105.00
13591
50 5 325 5 159.00
13592
60 5 390 3 108.00
13593
60 5 390 5 161.00
13594
30 6 240 3 136.00
13595
30 6 240 5 210.00
13596
40 6 315 3 177.00
13597
40 6 315 5 271.00
13598
10 8 105 3 90.00
13599
10 8 105 5 138.00
13600
40 8 416 3 100.00
13601
40 8 416 5 156.00
13602
15 10 195 3 90.00
13603
15 10 195 5 138.00
13604
20 10 260 3 100.00
13605
20 10 260 5 156.00
13606
30 10 390 3 115.00
13607
30 10 390 5 174.00
13608
40 10 520 3 146.00
13609
40 10 520 5 225.00
13610
30 12 470 3 115.00
13611
30 12 470 5 174.00
13612
40 12 625 3 166.00
13613
40 12 625 5 253.00
13614
20 15 390 3 105.00
13615
20 15 390 5 159.00
13616
30 15 590 3 151.00
13617
30 15 590 5 233.00
13618
30 20 780 1 75.00
13619
30 20 780 3 146.00
