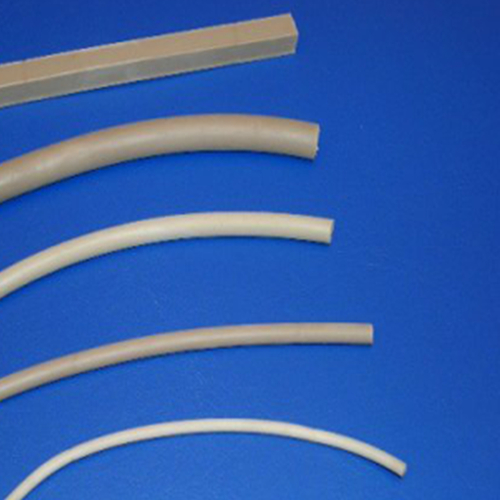

Rectangular Profile made of TPE - Food

Application area Sealing technology, engineering operations and maintenance, plant... more

Application area

Sealing technology, engineering operations and maintenance, plant construction, container construction in pharmaceutical engineering and food technology

Product specification

Suitable for food

Very good elastic properties

Good cold and thermal resistance

Excellent resistance to weather and aging

Good mechanical loadability

Technical specification

Material: TPE-S (thermoplastic elastomer)

Compound: SEBS (styrene block copolymer)

Colour: light beige

Shore hardness A: 45° ±5° (DIN 53505)

Temperature range: -50 to +95 °C; for a short time +150 °C (at damp heat)

Elongation at break: 350 %

Tolerance: DIN ISO 3302-1 E2

Regulations: BfR; conforming to FDA

No additional information available.

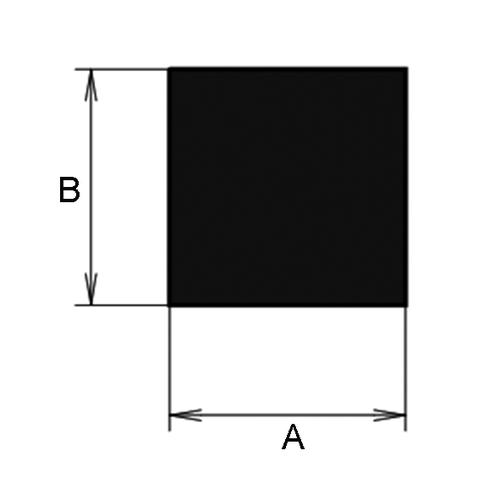

Item Image A
mm
B
mm
Unit
m
Price
Euro*
Buy
339500
4 4 5 35.00
339501
4 4 10 60.00
339502
5 5 5 37.00
339503
5 5 10 65.00
339504
6 6 5 41.00
339505
6 6 10 71.00
339506
8 8 5 56.00
339507
8 8 10 95.00
339508
10 10 5 75.00
339509
10 10 10 129.00
339510
12 12 5 107.00
339511
12 12 10 189.00
339514
15 15 5 157.00
339515
15 15 10 274.00
340453
16 16 5 163.00
340454
16 16 10 285.00
340455
18 18 5 176.00
340456
18 18 10 300.00
339516
20 20 5 197.00
339517
20 20 10 334.00
339518
25 25 5 236.00
339519
25 25 10 377.00
339520
30 30 5 270.00
339521
30 30 10 540.00
