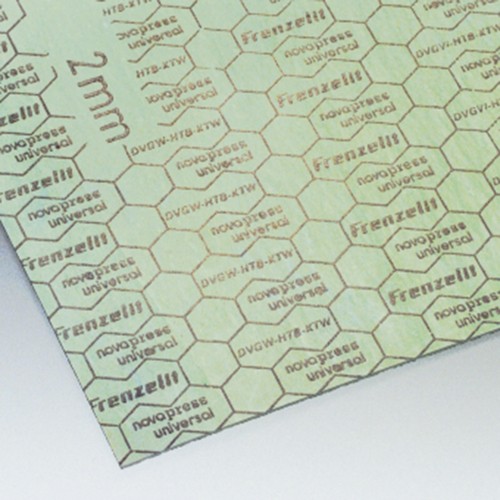

Synthetic Plate

Product specification Packing material, free of asbestos Fitted with stretch metal insert... more

Product specification

Packing material, free of asbestos

Fitted with stretch metal insert

Increased structural stability up to 1.5 mm thickness

Good resistance to aging

Highest temperature resistance

Resistance to steam, gases, salt solutions, fuels, alcohols, organic and inorganic acids, lubricants and cooling agents.

Technical specification

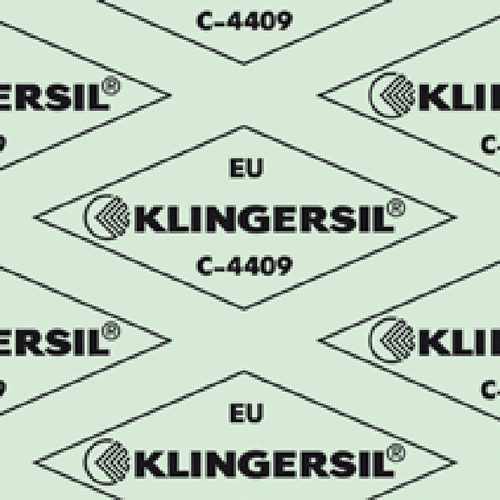

Material: synthetic fibres, bonded with NBR (KlingerSil®-C-4409)

Colour: green

Max. temperature: +400 °C

Density: 2.0 g/cm3 (DIN 53479)

Max. operating pressure: 80 bar

Compressibility: 7 % (ASTM F 36 A)

Resilience: 55 % (ASTM F 36 A)

Pressure resistance: 25 N/mm2

Regulations: HTB, KTW, WRC, BAM, CUVV 28, Din-DVGW-88.01e052, BS 7531 Grade y, oxygen (VGB 62) at 100 bar/+80 °C

No additional information available.
Item Image Thickness
mm
Dimensions
mm
Unit
piece
Price
Euro*
Buy
300681
0,8 500 x 500 1 99.00
300682
1 500 x 500 1 111.00
300683
1,5 500 x 500 1 126.00
300684
2 500 x 500 1 130.00
300685
3 500 x 500 1 184.00
300686
0,8 1500 x 1000 1 244.00
300687
1 1500 x 1000 1 281.00
300688
1,5 1500 x 1000 1 328.00
300689
2 1500 x 1000 1 444.00
300690
3 1500 x 1000 1 639.00
