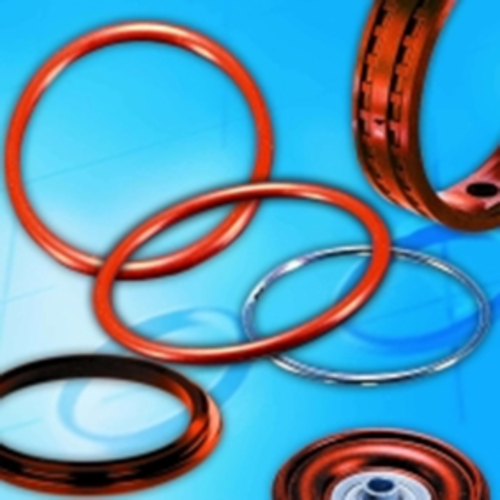

Silicone O-Rings - imperial | Reichelt Chemietechnik

Einsatzgebiet Gut einsetzbar: Mineralölen, Fetten und Wachsen (d.h. auch... more

Close menu

Einsatzgebiet

Gut einsetzbar:

Mineralölen, Fetten und Wachsen (d.h. auch Motoröle), ätherischen Ölen, hohen Temperaturbereichen.

Nicht einsetzbar:

Konz. Säuren (z.B. Salpetersäure, Ameisensäure), konz. oxidierenden Medien (z.B. Peressigsäure), Wasserdampf über +120 °C, Estern und Ethern, Aromatischen Kohlenwasserstoffe.

Produktspezifikation

Sehr elastisches Silikon-Compound

Mechanische Eigenschaften verändern sich auch bei höchster Temperaturbelastung nicht

Ausgezeichnete Wärme- und Hitzebeständigkeit

Beste Kältebeständigkeit

Sehr gute Witterungs-, Alterungs- und Ozonbeständigkeit

Dieser Werkstoff quillt nicht, verliert aber unter falschem Medieneinfluss an Härte und Zugfestigkeit

Große Gasdurchlässigkeit

Sehr gute physiologische Eigenschaften

Sehr gute dielektrische Eigenschaften

Gute Beständigkeit gegenüber synthetischen, tierischen und pflanzlichen Ölen, Glykolen, schwer entflammbaren Hydraulikflüssigkeiten, verschiedenen Lösemitteln

Technische Spezifikation

Werkstoff: Silikon (Vinyl-Methyl-Silikon-Kautschuk)

Farbe: rot-braun

Vernetzung: peroxidisch

Shore-Härte A: 70° ±5° (Messung an der Prüfplatte) (DIN 53505)

Temperaturbereich: -55 bis +200 °C

Dichte: 1,33 ±0,02 g/cm3 (DIN EN ISO 1183)

Zugfestigkeit: 5,6 N/mm2 (DIN 53504 S2)

Bruchdehnung: 209 % (DIN 53504 S2)

Druckverformungsrest: 20 % bei +175 °C / 22 h / 25 % (ASTM D 395 B)

Regelwerk:

Für die Lebensmittelindustrie: FDA konform (CFR 21 §177.2600)

General Information O-Rings These O-Ring materials are specially developed for use in the... more

Close menu

General Information O-Rings

These O-Ring materials are specially developed for use in the food processing, pharmaceutical, petrochemical and chemical industries, as well as in technological processes

Design: O-Rings are vulcanised in moulds

Method of operation: O-Rings are double-acting sealing elements. The initial squeeze acting in a radial or axial direction due to the installation gives the O-Ring its initial sealing capability. These forces are superimposed by the system pressure to create the total sealing force which increases with increasing system pressure. Under pressure, the O-Ring behaves in a similar way to a fluid with high surface tension. The pressure is transmitted uniformly to all directions (see Figure Sealing forces).

Compared with other sealing elements, the O-Ring has a wide range of advantages: Inexpensive, allows low cost solutions; simple, one-piece groove design reduces hardware and design costs; compact design allows smaller hardware; easy, foolproof installation reduces risk; applicable to a wide range of sealing problems, static, dynamic, single or double acting; wide compound choice for compatibility with most fluids

Most common applications: Sealing of static machine parts against liquid or gaseous media; as a radial static seal, e.g. for bushings, covers, pipes, cylinders; as an axial static seal, e.g. for flanges, plates, caps; as a dynamic sealing element at axial, rotating and oscillating movements

Branch-specific sealing solutions: Approvals and conformities in the food processing industry: ADI free, FDA, 3-A; Sanitary Standards; pharmaceutical industry: ADI free, USP Class VI

Petrochemical industry: ex. decompression

Chemistry: permeation density and chemical stability

Dimensions: Inched ARP 001 - 932; Metric ID 3 - 193 mm; Cord thickness 1 - 8 mm

Manufacturing: According to the latest standards, with an optimal tool park, for quick and flexible handling, the traceability of materials is guaranteed, all parts go through a quality check before packaging

Usual application areas for elastomers regarding temperature and polarity of the used media

Approvals and certificates in the food, pharmaceutical and drinking water industries (see list of approvals)

Usual cleaning media for continuous plants in the food and pharmaceutical industries (see list of cleaning products)

General Information Silicone

Well suited for use in:

Mineral oils, fats and waxes, motor oils, essential oils, and in high-temperature applications.

Should not be used in:

Concentrated acids (e.g. nitric or formic acid), concentrated oxidizing media (e.g. peracetic acid), steam over +120 °C, esters and ethers, aromatic hydrocarbons.

Very elastic silicone compound

Mechanical properties do not change even at highest temperature load

Excellent thermal and heat resistance

Very good resistance to cold

Very good resistance to weather, aging, and ozone

This material does not swell but can lose hardness and tensile strength when exposed to certain media

High permeability to gas

Very good physiological properties

Very good dielectrical properties

Good resistance to synthetic, animal and vegetable oils; glycols, nonflammable hydraulic fluids, and various solvents

Material: silicone (methyl vinyl silicone rubber)

Color: red

Crosslinking: peroxidic

Shore hardness A: 70° ±5 (test plate) (ASTM D 2240)

Temperature range: -55 to +200 °C

Tensile strength: 5.6 N/mm² (ASTM D 412 C)

Elongation at break: 209 % (ASTM D 412 C)

Tear propagation resistance: 16.4 N/mm (ASTM D 624 B)

Compression set: 22 % at +175 °C / 22 h (ASTM D 395 B)

Regulations:

For the food processing industry: conforming to FDA (CFR 21 §177.2600)

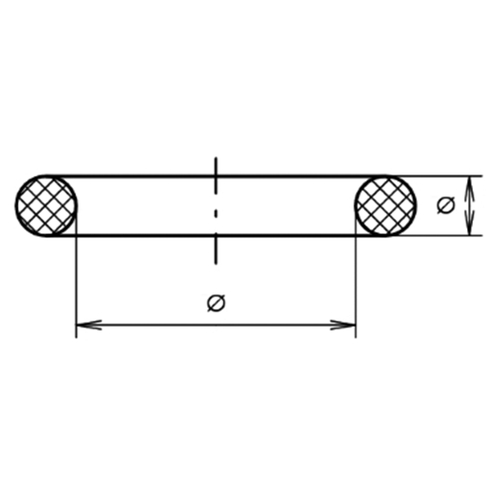

Item	Inside Ø mm	Schnur Ø mm	Einheit Stück	Price Euro*
403072	0,74	1,02	10	60.00
403073	0,74	1,02	20	103.00
403074	1,07	1,27	10	60.00
403075	1,07	1,27	20	103.00
403076	4,2	1,42	10	60.00
403077	4,2	1,42	20	103.00
403078	1,42	1,52	10	60.00
403079	1,42	1,52	20	103.00
403080	6,07	1,63	10	60.00
403081	6,07	1,63	20	103.00
403082	7,65	1,63	10	60.00
403083	7,65	1,63	20	103.00
403084	1,78	1,78	10	60.00
403085	1,78	1,78	20	103.00
403086	2,57	1,78	10	60.00
403087	2,57	1,78	20	103.00
403088	2,9	1,78	10	60.00
403089	2,9	1,78	20	103.00
403090	3,68	1,78	10	60.00
403091	3,68	1,78	20	103.00
403092	4,47	1,78	10	60.00
403093	4,47	1,78	20	103.00
403094	5,28	1,78	10	60.00
403095	5,28	1,78	20	103.00
403096	6,07	1,78	10	60.00
403097	6,07	1,78	20	103.00
403098	7,65	1,78	10	60.00
403099	7,65	1,78	20	103.00
403100	9,25	1,78	10	60.00
403101	9,25	1,78	20	103.00
403102	10,82	1,78	10	60.00
403103	10,82	1,78	20	103.00
403104	12,42	1,78	10	60.00
403105	12,42	1,78	20	103.00
403106	14	1,78	10	60.00
403107	14	1,78	20	103.00
403108	15,6	1,78	10	71.00
403109	15,6	1,78	20	122.00
403110	17,17	1,78	10	71.00
403111	17,17	1,78	20	122.00
403112	18,77	1,78	10	71.00
403113	18,77	1,78	20	122.00
403114	20,35	1,78	10	71.00
403115	20,35	1,78	20	122.00
403116	21,95	1,78	10	71.00
403117	21,95	1,78	20	122.00
403118	23,52	1,78	10	71.00
403119	23,52	1,78	20	122.00
403120	25,12	1,78	10	71.00
403121	25,12	1,78	20	122.00
403122	26,7	1,78	10	80.00
403123	26,7	1,78	20	137.00
403124	28,3	1,78	10	80.00
403125	28,3	1,78	20	137.00
403126	29,87	1,78	10	80.00
403127	29,87	1,78	20	137.00
403128	31,47	1,78	10	80.00
403129	31,47	1,78	20	137.00
403130	33,05	1,78	10	80.00
403131	33,05	1,78	20	137.00
403132	34,65	1,78	10	80.00
403133	34,65	1,78	20	137.00
403134	37,82	1,78	10	97.00
403135	37,82	1,78	20	163.00
403136	41	1,78	10	97.00
403137	41	1,78	20	163.00
403138	44,17	1,78	10	97.00
403139	44,17	1,78	20	163.00
403140	47,35	1,78	10	97.00
403141	47,35	1,78	20	163.00
403142	50,52	1,78	10	97.00
403143	50,52	1,78	20	163.00
403144	53,7	1,78	10	97.00
403145	53,7	1,78	20	163.00
403146	56,87	1,78	10	116.00
403147	56,87	1,78	20	195.00
403148	60,05	1,78	10	116.00
403149	60,05	1,78	20	195.00
403150	63,22	1,78	10	116.00
403151	63,22	1,78	20	195.00
403152	66,4	1,78	10	116.00
403153	66,4	1,78	20	195.00
403154	69,57	1,78	10	116.00
403155	69,57	1,78	20	195.00
403156	72,75	1,78	10	146.00
403157	72,75	1,78	20	249.00
403158	75,92	1,78	10	146.00
403159	75,92	1,78	20	249.00
403160	82,27	1,78	10	146.00
403161	82,27	1,78	20	249.00
403162	88,62	1,78	10	146.00
403163	88,62	1,78	20	249.00
403164	94,97	1,78	10	146.00
403165	94,97	1,78	20	249.00
403166	101,32	1,78	5	105.00
403167	101,32	1,78	10	185.00
403168	107,67	1,78	5	105.00
403169	107,67	1,78	10	185.00
403170	114,02	1,78	5	105.00
403171	114,02	1,78	10	185.00
403172	120,37	1,78	5	105.00
403173	120,37	1,78	10	185.00
403174	126,72	1,78	5	105.00
403175	126,72	1,78	10	185.00
403176	133,07	1,78	5	105.00
403177	133,07	1,78	10	185.00
403178	8,92	1,83	10	73.00
403179	8,92	1,83	20	127.00
403180	10,52	1,83	10	73.00
403181	10,52	1,83	20	127.00
403182	11,89	1,98	10	73.00
403183	11,89	1,98	20	127.00
403184	13,46	2,08	10	73.00
403185	13,46	2,08	20	127.00
403186	16,36	2,21	10	73.00
403187	16,36	2,21	20	127.00
403188	17,93	2,46	10	73.00
403189	17,93	2,46	20	127.00
403190	19,18	2,46	10	80.00
403191	19,18	2,46	20	140.00
403192	21,92	2,46	10	80.00
403193	21,92	2,46	20	140.00
403194	1,24	2,62	10	80.00
403195	1,24	2,62	20	140.00
403196	2,06	2,62	10	80.00
403197	2,06	2,62	20	140.00
403198	2,84	2,62	10	80.00
403199	2,84	2,62	20	140.00
403200	3,63	2,62	10	80.00
403201	3,63	2,62	20	140.00
403202	4,42	2,62	10	80.00
403203	4,42	2,62	20	140.00
403204	5,23	2,62	10	80.00
403205	5,23	2,62	20	140.00
403206	6,02	2,62	10	80.00
403207	6,02	2,62	20	140.00
403208	7,59	2,62	10	80.00
403209	7,59	2,62	20	140.00
403210	9,19	2,62	10	80.00
403211	9,19	2,62	20	140.00
403212	10,77	2,62	10	80.00
403213	10,77	2,62	20	140.00
403214	12,37	2,62	10	80.00
403215	12,37	2,62	20	140.00
403216	13,94	2,62	10	80.00
403217	13,94	2,62	20	140.00
403218	15,54	2,62	10	80.00
403219	15,54	2,62	20	140.00
403220	17,12	2,62	10	80.00
403221	17,12	2,62	20	140.00
403222	18,72	2,62	10	80.00
403223	18,72	2,62	20	140.00
403224	20,29	2,62	10	80.00
403225	20,29	2,62	20	140.00
403226	21,89	2,62	10	80.00
403227	21,89	2,62	20	140.00
403228	23,47	2,62	10	90.00
403229	23,47	2,62	20	155.00
403230	25,07	2,62	10	90.00
403231	25,07	2,62	20	155.00
403232	26,64	2,62	10	90.00
403233	26,64	2,62	20	155.00
403234	28,24	2,62	10	90.00
403235	28,24	2,62	20	155.00
403236	29,82	2,62	10	90.00
403237	29,82	2,62	20	155.00
403238	31,42	2,62	10	90.00
403239	31,42	2,62	20	155.00
403240	32,99	2,62	10	90.00
403241	32,99	2,62	20	155.00
403242	34,59	2,62	10	90.00
403243	34,59	2,62	20	155.00
403244	36,17	2,62	10	114.00
403245	36,17	2,62	20	193.00
403246	37,77	2,62	10	114.00
403247	37,77	2,62	20	193.00
403248	39,34	2,62	10	114.00
403249	39,34	2,62	20	193.00
403250	40,94	2,62	10	114.00
403251	40,94	2,62	20	193.00
403252	42,52	2,62	10	114.00
403253	42,52	2,62	20	193.00
403254	44,12	2,62	10	114.00
403255	44,12	2,62	20	193.00
403256	45,69	2,62	10	114.00
403257	45,69	2,62	20	193.00
403258	47,29	2,62	10	114.00
403259	47,29	2,62	20	193.00
403260	48,9	2,62	10	114.00
403261	48,9	2,62	20	193.00
403262	50,47	2,62	10	114.00
403263	50,47	2,62	20	193.00
403264	52,07	2,62	10	114.00
403265	52,07	2,62	20	193.00
403266	53,64	2,62	10	122.00
403267	53,64	2,62	20	206.00
403268	55,25	2,62	10	122.00
403269	55,25	2,62	20	206.00
403270	56,82	2,62	10	122.00
403271	56,82	2,62	20	206.00
403272	58,42	2,62	10	122.00
403273	58,42	2,62	20	206.00
403274	59,99	2,62	10	122.00
403275	59,99	2,62	20	206.00
403276	61,6	2,62	10	122.00
403277	61,6	2,62	20	206.00
403278	63,17	2,62	5	86.00
403279	63,17	2,62	10	150.00
403280	64,77	2,62	5	86.00
403281	64,77	2,62	10	150.00
403282	66,34	2,62	5	86.00
403283	66,34	2,62	10	150.00
403284	67,95	2,62	5	86.00
403285	67,95	2,62	10	150.00
403286	69,52	2,62	5	86.00
403287	69,52	2,62	10	150.00
403288	71,12	2,62	5	86.00
403289	71,12	2,62	10	150.00
403290	72,69	2,62	5	86.00
403291	72,69	2,62	10	150.00
403292	75,87	2,62	5	86.00
403293	75,87	2,62	10	150.00
403294	82,22	2,62	5	116.00
403295	82,22	2,62	10	200.00
403296	88,57	2,62	5	116.00
403297	88,57	2,62	10	200.00
403298	94,92	2,62	5	116.00
403299	94,92	2,62	10	200.00
403300	101,27	2,62	5	116.00
403301	101,27	2,62	10	200.00
403302	107,62	2,62	5	146.00
403303	107,62	2,62	10	253.00
403304	113,97	2,62	5	146.00
403305	113,97	2,62	10	253.00
403306	120,32	2,62	5	146.00
403307	120,32	2,62	10	253.00
403308	126,67	2,62	5	146.00
403309	126,67	2,62	10	253.00
403310	133,02	2,62	5	146.00
403311	133,02	2,62	10	253.00
403312	139,37	2,62	5	176.00
403313	139,37	2,62	10	300.00
403314	145,72	2,62	5	176.00
403315	145,72	2,62	10	300.00
403316	152,07	2,62	5	176.00
403317	152,07	2,62	10	300.00
403318	158,42	2,62	5	176.00
403319	158,42	2,62	10	300.00
403320	164,77	2,62	5	176.00
403321	164,77	2,62	10	300.00
403322	171,12	2,62	5	193.00
403323	171,12	2,62	10	326.00
403324	177,47	2,62	5	193.00
403325	177,47	2,62	10	326.00
403326	183,82	2,62	5	193.00
403327	183,82	2,62	10	326.00
403328	190,17	2,62	5	193.00
403329	190,17	2,62	10	326.00
403330	196,52	2,62	5	193.00
403331	196,52	2,62	10	326.00
403332	202,87	2,62	5	202.00
403333	202,87	2,62	10	336.00
403334	209,22	2,62	5	202.00
403335	209,22	2,62	10	336.00
403336	215,57	2,62	5	202.00
403337	215,57	2,62	10	336.00
403338	221,92	2,62	5	202.00
403339	221,92	2,62	10	336.00
403340	228,27	2,62	5	206.00
403341	228,27	2,62	10	341.00
403342	234,62	2,62	5	206.00
403343	234,62	2,62	10	341.00
403344	240,97	2,62	5	206.00
403345	240,97	2,62	10	341.00
403346	247,32	2,62	5	206.00
403347	247,32	2,62	10	341.00
403348	23,47	2,95	10	103.00
403349	23,47	2,95	20	174.00
403350	25,04	2,95	10	103.00
403351	25,04	2,95	20	174.00
403352	26,59	2,95	10	103.00
403353	26,59	2,95	20	174.00
403354	29,74	2,95	10	103.00
403355	29,74	2,95	20	174.00
403356	34,42	2,95	10	103.00
403357	34,42	2,95	20	174.00
403358	37,47	3	10	103.00
403359	37,47	3	20	174.00
403360	43,69	3	10	146.00
403361	43,69	3	20	249.00
403362	53,09	3	10	146.00
403363	53,09	3	20	249.00
403364	59,36	3	10	146.00
403365	59,36	3	20	249.00
403366	4,34	3,53	10	80.00
403367	4,34	3,53	20	137.00
403368	5,94	3,53	10	80.00
403369	5,94	3,53	20	137.00
403370	7,52	3,53	10	80.00
403371	7,52	3,53	20	137.00
403372	9,12	3,53	10	80.00
403373	9,12	3,53	20	137.00
403374	10,69	3,53	10	80.00
403375	10,69	3,53	20	137.00
403376	12,29	3,53	10	80.00
403377	12,29	3,53	20	137.00
403378	13,87	3,53	10	80.00
403379	13,87	3,53	20	137.00
403380	15,47	3,53	10	80.00
403381	15,47	3,53	20	137.00
403382	17,04	3,53	10	80.00
403383	17,04	3,53	20	137.00
403384	18,64	3,53	10	88.00
403385	18,64	3,53	20	152.00
403386	20,22	3,53	10	88.00
403387	20,22	3,53	20	152.00
403388	21,82	3,53	10	88.00
403389	21,82	3,53	20	152.00
403390	23,39	3,53	10	88.00
403391	23,39	3,53	20	152.00
403392	24,99	3,53	10	88.00
403393	24,99	3,53	20	152.00
403394	26,57	3,53	10	88.00
403395	26,57	3,53	20	152.00
403396	28,17	3,53	10	103.00
403397	28,17	3,53	20	176.00
403398	29,74	3,53	10	103.00
403399	29,74	3,53	20	176.00
403400	31,34	3,53	10	103.00
403401	31,34	3,53	20	176.00
403402	32,92	3,53	10	103.00
403403	32,92	3,53	20	176.00
403404	34,52	3,53	10	103.00
403405	34,52	3,53	20	176.00
403406	36,09	3,53	10	103.00
403407	36,09	3,53	20	176.00
403408	37,69	3,53	10	125.00
403409	37,69	3,53	20	210.00
403410	40,87	3,53	10	125.00
403411	40,87	3,53	20	210.00
403412	44,04	3,53	10	125.00
403413	44,04	3,53	20	210.00
403414	47,22	3,53	10	125.00
403415	47,22	3,53	20	210.00
403416	50,39	3,53	10	125.00
403417	50,39	3,53	20	210.00
403418	53,57	3,53	10	159.00
403419	53,57	3,53	20	255.00
403420	56,74	3,53	10	159.00
403421	56,74	3,53	20	255.00
403422	59,92	3,53	10	159.00
403423	59,92	3,53	20	255.00
403424	63,09	3,53	10	159.00
403425	63,09	3,53	20	255.00
403426	66,27	3,53	10	159.00
403427	66,27	3,53	20	255.00
403428	69,44	3,53	5	114.00
403429	69,44	3,53	10	197.00
403430	72,62	3,53	5	114.00
403431	72,62	3,53	10	197.00
403432	75,79	3,53	5	114.00
403433	75,79	3,53	10	197.00
403434	78,97	3,53	5	114.00
403435	78,97	3,53	10	197.00
403436	82,14	3,53	5	114.00
403437	82,14	3,53	10	197.00
403438	85,32	3,53	5	129.00
403439	85,32	3,53	10	223.00
403440	88,49	3,53	5	129.00
403441	88,49	3,53	10	223.00
403442	91,67	3,53	5	129.00
403443	91,67	3,53	10	223.00
403444	94,84	3,53	5	129.00
403445	94,84	3,53	10	223.00
403446	98,02	3,53	5	146.00
403447	98,02	3,53	10	253.00
403448	101,19	3,53	5	146.00
403449	101,19	3,53	10	253.00
403450	104,37	3,53	5	146.00
403451	104,37	3,53	10	253.00
403452	107,54	3,53	5	150.00
403453	107,54	3,53	10	259.00
403454	110,72	3,53	5	150.00
403455	110,72	3,53	10	259.00
403456	113,89	3,53	5	150.00
403457	113,89	3,53	10	259.00
403458	117,07	3,53	5	165.00
403459	117,07	3,53	10	281.00
403460	120,24	3,53	5	165.00
403461	120,24	3,53	10	281.00
403462	123,42	3,53	5	165.00
403463	123,42	3,53	10	281.00
403464	126,59	3,53	5	165.00
403465	126,59	3,53	10	281.00
403466	129,77	3,53	5	165.00
403467	129,77	3,53	10	281.00
403468	132,94	3,53	5	178.00
403469	132,94	3,53	10	302.00
403470	136,12	3,53	5	178.00
403471	136,12	3,53	10	302.00
403472	139,29	3,53	5	178.00
403473	139,29	3,53	10	302.00
403474	142,47	3,53	5	178.00
403475	142,47	3,53	10	302.00
403476	145,64	3,53	5	178.00
403477	145,64	3,53	10	302.00
403478	148,82	3,53	5	212.00
403479	148,82	3,53	10	360.00
403480	151,99	3,53	5	212.00
403481	151,99	3,53	10	360.00
403482	158,34	3,53	5	212.00
403483	158,34	3,53	10	360.00
403484	164,69	3,53	5	212.00
403485	164,69	3,53	10	360.00
403486	171,04	3,53	5	212.00
403487	171,04	3,53	10	360.00
403488	177,39	3,53	5	212.00
403489	177,39	3,53	10	360.00
403490	183,74	3,53	5	232.00
403491	183,74	3,53	10	390.00
403492	190,09	3,53	5	232.00
403493	190,09	3,53	10	390.00
403494	196,44	3,53	5	232.00
403495	196,44	3,53	10	390.00
403496	202,79	3,53	5	232.00
403497	202,79	3,53	10	390.00
403498	209,14	3,53	5	255.00
403499	209,14	3,53	10	424.00
403500	215,49	3,53	5	255.00
403501	215,49	3,53	10	424.00
403502	221,84	3,53	5	255.00
403503	221,84	3,53	10	424.00
403504	228,19	3,53	5	255.00
403505	228,19	3,53	10	424.00
403506	234,54	3,53	5	255.00
403507	234,54	3,53	10	424.00
403508	240,89	3,53	5	279.00
403509	240,89	3,53	10	454.00
403510	247,24	3,53	5	279.00
403511	247,24	3,53	10	454.00
403512	253,59	3,53	5	279.00
403513	253,59	3,53	10	454.00
403514	266,29	3,53	5	279.00
403515	266,29	3,53	10	454.00
403516	278,99	3,53	5	279.00
403517	278,99	3,53	10	454.00
403518	291,69	3,53	5	279.00
403519	291,69	3,53	10	446.00
403520	304,39	3,53	5	279.00
403521	304,39	3,53	10	446.00
403522	329,79	3,53	5	329.00
403523	329,79	3,53	10	527.00
403524	355,19	3,53	5	329.00
403525	355,19	3,53	10	527.00
403526	380,59	3,53	5	360.00
403527	380,59	3,53	10	568.00
403528	405,26	3,53	5	360.00
403529	405,26	3,53	10	568.00
403530	430,66	3,53	5	390.00
403531	430,66	3,53	10	606.00
403532	456,06	3,53	5	390.00
403533	456,06	3,53	10	606.00
403534	10,46	5,33	5	390.00
403535	10,46	5,33	10	606.00
403536	12,07	5,33	10	105.00
403537	12,07	5,33	20	174.00
403538	13,64	5,33	10	105.00
403539	13,64	5,33	20	174.00
403540	15,24	5,33	10	105.00
403541	15,24	5,33	20	174.00
403542	16,81	5,33	10	105.00
403543	16,81	5,33	20	174.00
403544	18,42	5,33	10	105.00
403545	18,42	5,33	20	174.00
403546	19,99	5,33	10	105.00
403547	19,99	5,33	20	174.00
403548	21,59	5,33	10	120.00
403549	21,59	5,33	20	204.00
403550	23,16	5,33	10	120.00
403551	23,16	5,33	20	204.00
403552	24,77	5,33	10	120.00
403553	24,77	5,33	20	204.00
403554	26,34	5,33	10	120.00
403555	26,34	5,33	20	204.00
403556	27,94	5,33	10	120.00
403557	27,94	5,33	20	204.00
403558	29,51	5,33	10	120.00
403559	29,51	5,33	20	204.00
403560	31,12	5,33	10	137.00
403561	31,12	5,33	20	232.00
403562	32,69	5,33	10	137.00
403563	32,69	5,33	20	232.00
403564	34,29	5,33	10	137.00
403565	34,29	5,33	20	232.00
403566	37,47	5,33	10	137.00
403567	37,47	5,33	20	232.00
403568	40,64	5,33	5	122.00
403569	40,64	5,33	10	212.00
403570	43,82	5,33	5	122.00
403571	43,82	5,33	10	212.00
403572	46,99	5,33	5	122.00
403573	46,99	5,33	10	212.00
403574	50,17	5,33	5	122.00
403575	50,17	5,33	10	212.00
403576	53,34	5,33	5	122.00
403577	53,34	5,33	10	212.00
403578	56,52	5,33	5	148.00
403579	56,52	5,33	10	253.00
403580	59,69	5,33	5	148.00
403581	59,69	5,33	10	253.00
403582	62,87	5,33	5	148.00
403583	62,87	5,33	10	253.00
403584	66,04	5,33	5	148.00
403585	66,04	5,33	10	253.00
403586	69,22	5,33	5	176.00
403587	69,22	5,33	10	304.00
403588	72,39	5,33	5	176.00
403589	72,39	5,33	10	304.00
403590	75,57	5,33	5	176.00
403591	75,57	5,33	10	304.00
403592	78,74	5,33	5	176.00
403593	78,74	5,33	10	304.00
403594	81,92	5,33	5	176.00
403595	81,92	5,33	10	304.00
403596	85,09	5,33	5	195.00
403597	85,09	5,33	10	334.00
403598	88,27	5,33	5	195.00
403599	88,27	5,33	10	334.00
403600	91,44	5,33	5	195.00
403601	91,44	5,33	10	334.00
403602	94,62	5,33	5	195.00
403603	94,62	5,33	10	334.00
403604	97,79	5,33	5	195.00
403605	97,79	5,33	10	334.00
403606	100,97	5,33	5	195.00
403607	100,97	5,33	10	334.00
403608	104,14	5,33	5	221.00
403609	104,14	5,33	10	373.00
403610	107,32	5,33	5	221.00
403611	107,32	5,33	10	373.00
403612	110,49	5,33	5	221.00
403613	110,49	5,33	10	373.00
403614	113,67	5,33	5	221.00
403615	113,67	5,33	10	373.00
403616	116,84	5,33	5	221.00
403617	116,84	5,33	10	373.00
403618	120,02	5,33	5	221.00
403619	120,02	5,33	10	373.00
403620	123,19	5,33	5	243.00
403621	123,19	5,33	10	411.00
403622	126,37	5,33	5	243.00
403623	126,37	5,33	10	411.00
403624	129,54	5,33	5	243.00
403625	129,54	5,33	10	411.00
403626	132,72	5,33	5	243.00
403627	132,72	5,33	10	411.00
403628	135,89	5,33	5	243.00
403629	135,89	5,33	10	411.00
403630	139,07	5,33	5	243.00
403631	139,07	5,33	10	411.00
403632	142,24	5,33	5	272.00
403633	142,24	5,33	10	437.00
403634	145,42	5,33	5	272.00
403635	145,42	5,33	10	437.00
403636	148,59	5,33	5	272.00
403637	148,59	5,33	10	437.00
403638	151,77	5,33	5	272.00
403639	151,77	5,33	10	437.00
403640	158,12	5,33	5	272.00
403641	158,12	5,33	10	437.00
403642	164,47	5,33	5	272.00
403643	164,47	5,33	10	437.00
403644	170,82	5,33	5	304.00
403645	170,82	5,33	10	501.00
403646	177,17	5,33	5	304.00
403647	177,17	5,33	10	501.00
403648	183,52	5,33	5	304.00
403649	183,52	5,33	10	501.00
403650	189,87	5,33	5	304.00
403651	189,87	5,33	10	501.00
403652	196,22	5,33	5	304.00
403653	196,22	5,33	10	501.00
403654	202,57	5,33	5	304.00
403655	202,57	5,33	10	501.00
403656	208,92	5,33	5	336.00
403657	208,92	5,33	10	553.00
403658	215,27	5,33	5	336.00
403659	215,27	5,33	10	553.00
403660	221,62	5,33	5	336.00
403661	221,62	5,33	10	553.00
403662	227,97	5,33	5	336.00
403663	227,97	5,33	10	553.00
403664	234,32	5,33	5	336.00
403665	234,32	5,33	10	553.00
403666	240,67	5,33	5	336.00
403667	240,67	5,33	10	553.00
403668	247,02	5,33	5	351.00
403669	247,02	5,33	10	563.00
403670	253,37	5,33	5	351.00
403671	253,37	5,33	10	563.00
403672	266,07	5,33	5	351.00
403673	266,07	5,33	10	563.00
403674	278,77	5,33	5	351.00
403675	278,77	5,33	10	563.00
403676	291,47	5,33	5	390.00
403677	291,47	5,33	10	615.00
403678	304,17	5,33	5	390.00
403679	304,17	5,33	10	615.00
403680	329,57	5,33	5	390.00
403681	329,57	5,33	10	615.00
403682	354,97	5,33	5	418.00
403683	354,97	5,33	10	660.00
403684	380,37	5,33	5	452.00
403685	380,37	5,33	10	702.00
403686	405,26	5,33	5	452.00
403687	405,26	5,33	10	702.00
403688	430,66	5,33	5	510.00
403689	430,66	5,33	10	782.00
403690	456,06	5,33	5	510.00
403691	456,06	5,33	10	782.00
403692	481,41	5,33	5	510.00
403693	481,41	5,33	10	782.00
403694	506,81	5,33	5	535.00
403695	506,81	5,33	10	803.00
403696	532,21	5,33	5	535.00
403697	532,21	5,33	10	803.00
403698	557,61	5,33	5	578.00
403699	557,61	5,33	10	867.00
403700	582,68	5,33	5	578.00
403701	582,68	5,33	10	867.00
403702	608,08	5,33	5	632.00
403703	608,08	5,33	10	946.00
403704	633,48	5,33	5	632.00
403705	633,48	5,33	10	946.00
403706	658,88	5,33	5	632.00
403707	658,88	5,33	10	946.00
403708	113,67	6,99	5	238.00
403709	113,67	6,99	10	403.00
403710	116,84	6,99	5	238.00
403711	116,84	6,99	10	403.00
403712	120,02	6,99	5	238.00
403713	120,02	6,99	10	403.00
403714	123,19	6,99	5	255.00
403715	123,19	6,99	10	433.00
403716	126,37	6,99	5	255.00
403717	126,37	6,99	10	433.00
403718	129,54	6,99	5	255.00
403719	129,54	6,99	10	433.00
403720	132,72	6,99	5	266.00
403721	132,72	6,99	10	443.00
403722	135,89	6,99	5	266.00
403723	135,89	6,99	10	443.00
403724	139,07	6,99	5	266.00
403725	139,07	6,99	10	443.00
403726	142,24	6,99	5	266.00
403727	142,24	6,99	10	443.00
403728	145,42	6,99	5	266.00
403729	145,42	6,99	10	443.00
403730	148,59	6,99	5	286.00
403731	148,59	6,99	10	469.00
403732	151,77	6,99	5	286.00
403733	151,77	6,99	10	469.00
403734	158,12	6,99	5	286.00
403735	158,12	6,99	10	469.00
403736	164,47	6,99	5	286.00
403737	164,47	6,99	10	469.00
403738	170,82	6,99	5	286.00
403739	170,82	6,99	10	469.00
403740	177,17	6,99	5	309.00
403741	177,17	6,99	10	495.00
403742	183,52	6,99	5	309.00
403743	183,52	6,99	10	495.00
403744	189,87	6,99	5	309.00
403745	189,87	6,99	10	495.00
403746	196,22	6,99	5	309.00
403747	196,22	6,99	10	495.00
403748	202,57	6,99	5	309.00
403749	202,57	6,99	10	495.00
403750	215,27	6,99	5	369.00
403751	215,27	6,99	10	580.00
403752	227,97	6,99	5	369.00
403753	227,97	6,99	10	580.00
403754	240,67	6,99	5	369.00
403755	240,67	6,99	10	580.00
403756	253,37	6,99	5	369.00
403757	253,37	6,99	10	580.00
403758	266,07	6,99	5	418.00
403759	266,07	6,99	10	651.00
403760	278,77	6,99	5	418.00
403761	278,77	6,99	10	651.00
403762	291,47	6,99	5	418.00
403763	291,47	6,99	10	651.00
403764	304,17	6,99	5	418.00
403765	304,17	6,99	10	651.00
403766	316,87	6,99	5	469.00
403767	316,87	6,99	10	730.00
403768	329,57	6,99	5	469.00
403769	329,57	6,99	10	730.00
403770	342,27	6,99	5	469.00
403771	342,27	6,99	10	730.00
403772	354,97	6,99	5	527.00
403773	354,97	6,99	10	822.00
403774	367,67	6,99	5	527.00
403775	367,67	6,99	10	822.00
403776	380,37	6,99	5	527.00
403777	380,37	6,99	10	822.00
403778	393,07	6,99	5	527.00
403779	393,07	6,99	10	822.00
403780	405,26	6,99	5	559.00
403781	405,26	6,99	10	854.00
403782	417,96	6,99	5	559.00
403783	417,96	6,99	10	854.00
403784	430,66	6,99	5	559.00
403785	430,66	6,99	10	854.00
403786	443,36	6,99	5	559.00
403787	443,36	6,99	10	854.00
403788	456,06	6,99	5	623.00
403789	456,06	6,99	10	957.00
403790	468,76	6,99	5	623.00
403791	468,76	6,99	10	957.00
403792	481,46	6,99	5	623.00
403793	481,46	6,99	10	957.00
403794	494,16	6,99	5	623.00
403795	494,16	6,99	10	957.00
403796	506,86	6,99	5	638.00
403797	506,86	6,99	10	957.00
403798	532,26	6,99	5	638.00
403799	532,26	6,99	10	957.00
403800	557,66	6,99	5	695.00
403801	557,66	6,99	10	1,043.00
403802	582,68	6,99	5	695.00
403803	582,68	6,99	10	1,043.00
403804	608,08	6,99	5	735.00
403805	608,08	6,99	10	1,077.00
403806	633,48	6,99	5	735.00
403807	633,48	6,99	10	1,077.00
403808	658,88	6,99	5	735.00
403809	658,88	6,99	10	1,077.00
