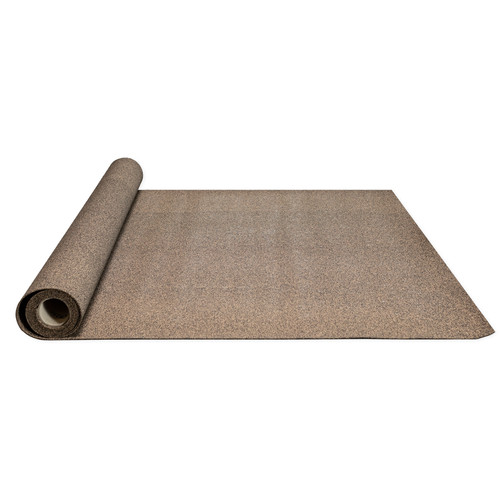

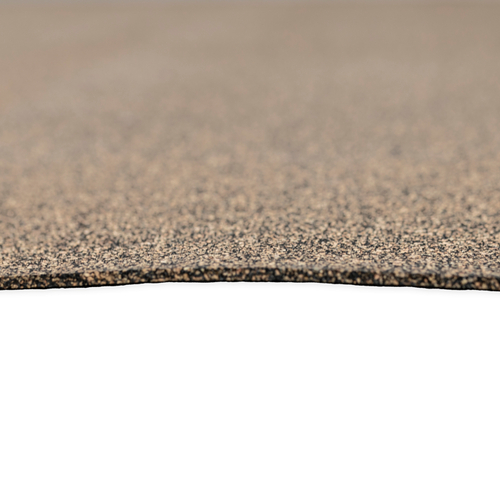

Rubber Cork Plate

Product specification Packing material Insulating material Vibration damping Good... more

Product specification

Packing material

Insulating material

Vibration damping

Good resistance to weather

Good resistance to acids

Moderate resistance to oils, ozone and alkalis, bad resistance to petrol

Technical specification

Material: cork, PUR-bonded

Colour: black-brown

Temperature range: -20 to +100 °C

Density: 0.5 - 0,75 g/cm3

Resilience: min. 70 % (ASTM F36 B)

Compressibility: 20 - 40 % (ASTM F36 B)

Tensile strength: 0.9 MPa

No additional information available.
Item Image Thickness
mm
Dimensions
mm
Unit
piece
Price
Euro*
Buy
300737
1 500 x 500 1 69.00
300738
1,5 500 x 500 1 71.00
300739
2 500 x 500 1 75.00
300740
2,5 500 x 500 1 79.00
300741
3 500 x 500 1 83.00
300742
1 1000 x 1000 1 86.00
300743
1,5 1000 x 1000 1 90.00
300744
2 1000 x 1000 1 105.00
300745
2,5 1000 x 1000 1 115.00
300746
3 1000 x 1000 1 124.00
