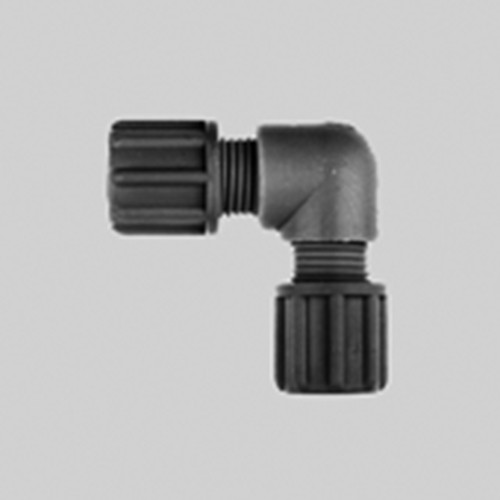

Elbow Tube Connector made of PP or PVDF - conductive and antistatic

Product specification Tubing connection on both sides, conductive more

Product specification

Tubing connection on both sides, conductive

General Information For use in chemical container and apparatus construction, electrical... more

General Information

For use in chemical container and apparatus construction, electrical industry, electrochemistry and safety engineering.

Electrically conductive connectors for safe protection against electrostatic charge

UV-resistant and UV-impermeable

Material: PP-EC (polypropylene, electrically conductive)

Colour: black

Max. operating pressure: 10 bar at +20 °C

Temperature range: +5 to +90 °C

Leaking resistance: <10² Ohm

Material: PVDF-EC (polyvinylidene fluoride, electrically conductive)

Colour: black

Max. operating pressure: 10 bar at +20 °C

Temperature range: -40 to +140 °C

Leaking resistance: <10³ Ohm

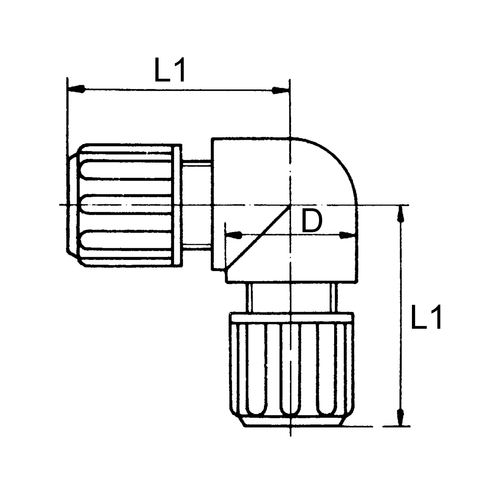

Item	Tubing inside Ø mm	Schlauch Außen-Ø mm	D mm	L1 mm	Werkstoff	Einheit Stück	Price Euro*
341191	4	6	15	25	PP	10	120.00
341192	6	8	15	27	PP	10	154.00
341193	6	10	20	32	PP	10	196.00
341194	8	10	20	34	PP	5	133.00
341195	8	12	20	34	PP	5	178.00
341196	10	12	20	34	PP	3	178.00
341197	10	14	25	39	PP	3	199.00
341198	12	14	25	50	PP	3	199.00
341199	12	16	25	50	PP	3	283.00
341200	14	16	29	50	PP	3	283.00
341288	4	6	15	25	PVDF	5	225.00
341289	6	8	15	27	PVDF	5	246.00
341290	6	10	20	32	PVDF	5	267.00
341291	8	10	20	34	PVDF	5	273.00
341292	8	12	20	34	PVDF	3	207.00
341293	10	12	20	34	PVDF	3	213.00
341294	10	14	25	39	PVDF	3	225.00
341295	12	14	25	50	PVDF	3	231.00
341296	12	16	29	50	PVDF	3	307.00
341297	14	16	29	50	PVDF	3	312.00
