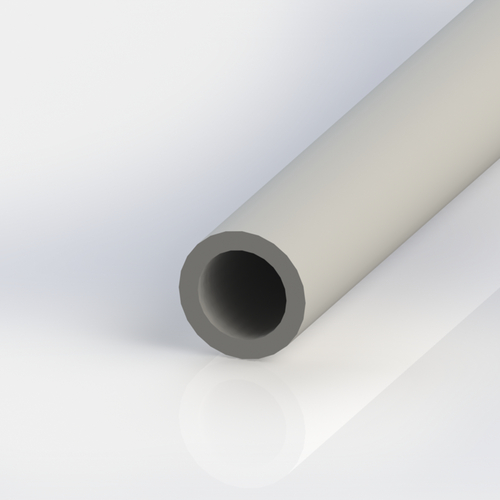

Tube made of Glass Fiber Reinforced Plastic GFRP

Tube made of Glass Fiber Reinforced Plastic GFRP

Produ c t s pezifi c ation The pultruded GFRP tubes are not suitable for internal... more

Close menu

Product spezification

The pultruded GFRP tubes are not suitable for internal pressure actions on applications.

General Information Use in laboratory technology, electroplating technology and electrical... more

Close menu

General Information

Use in laboratory technology, electroplating technology and electrical engineering.

Linear stress-strain behavior

Low weight

Electrically insulating

Chemical-resistant

Corrosion-resistant and weatherproof

UV-resistant

Halogen-free

High economic efficiency

High stability

Metal-free, unmagnetic

Thermally insulating

The unsaturated polyester resins are among the most commonly used resins in composite materials. UP resins are a colourless to slightly yellow solution of unsaturated polyester in a reactive solvent, usually styrene. At room temperature or by supply of heat, they are cured, whereby a heat reaction is released.

Material:

Resin: polyester

Reinforcing fibers: glass fibers

Design: pultruded

Colour: dark gray / white

Density: 2 g/cm³

Temperature range: -100 to +155 °C, for a short time +180 °C

Impact toughness (IZOD): 300 kJ/m²

Interlaminar shear strength: 25 MPa

Volume resistivity: 10¹⁰ - 10¹⁵ Ohm * cm

Surface resistance: 10¹⁰ - 10¹⁵ Ohm

Breakdown strength: 5 - 10 kV/mm

Comparative tracking index (CTI): KA 3c / KB 500 / KC 600

Dielectric constant: <5

Coefficient of linear thermal expansion: 12 x 10^-6 1/K

Thermal conductivity: 0.2 - 0.6 W/m*K

Specific heat capacity: 1.0 - 1.2 kJ/kg*K

Water absorption: 0.15 %

Dimensional stability by Martens method: +200 °C

Resistance to glow heat: level 2b

Elongation at break: 1.0 - 1.8 %

Barcol hardness: >40

Tolerances:

Pipe diameter: 0 - 10 mm ±0.20 mm, 10 - 20 mm ±0.30 mm, 20 - 40 mm ±0.35 mm

Wall thickness: 0 - 2 mm ±0.30 mm, 2 - 5 mm ±0.35 mm, 5 - 10 mm ±0.40 mm

Flammability rating: B2, UL 94 V-1, ASTM D635

Burning behaviour: Self-extinguishing

All following measured values are depending on the test direction: parallel (II) or perpendicular (+) to the fibers.

Tensile strength: II: 250 MPa; +: 30-80 MPa

Tension stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 20 MPa (short-term); 15 MPa (long-term)

Bending strength: II: 250 MPa; +: 30-80 MPa

Bending stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 20 MPa (short-term); 15 MPa (long-term)

Elastic modulus tensile strength: II: 23.000 MPa; +: 8.000 MPa

Elastic modulus bending: II: 25.000 MPa; +: 9.000 MPa

Compressive strength: II: 450 MPa; +: 90 MPa

Compressive stress: II: 135 MPa (short-term); 70 MPa (long-term)
+: 25 MPa (short-term); 20 MPa (long-term)

Compressive modulus: II: 1.000 MPa; +: 4.000 MPa

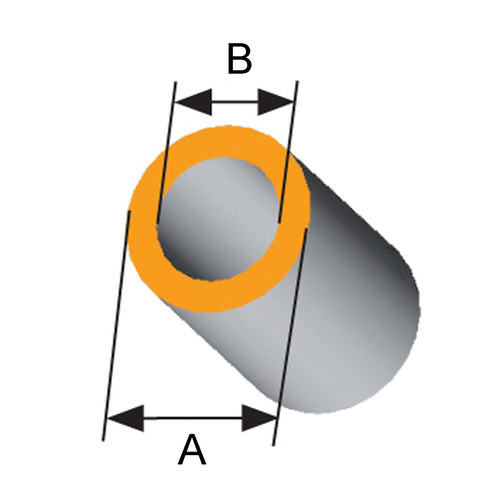

Item	Inside Ø mm	Außen-Ø mm	Länge mm	Einheit Stück	Price Euro*
306450	14	20	500	1	39.00
306451	14	20	1.000	1	65.00
306452	17	22	500	1	41.00
306453	17	22	1.000	1	69.00
306454	22	28	500	1	48.00
306455	22	28	1.000	1	80.00
306456	20	30	500	1	52.00
306457	20	30	1.000	1	86.00
306458	24	30	500	1	54.00
306459	24	30	1.000	1	91.00
306460	26	32	500	1	65.00
306461	26	32	1.000	1	105.00
306462	32	40	500	1	73.00
306463	32	40	1.000	1	120.00
