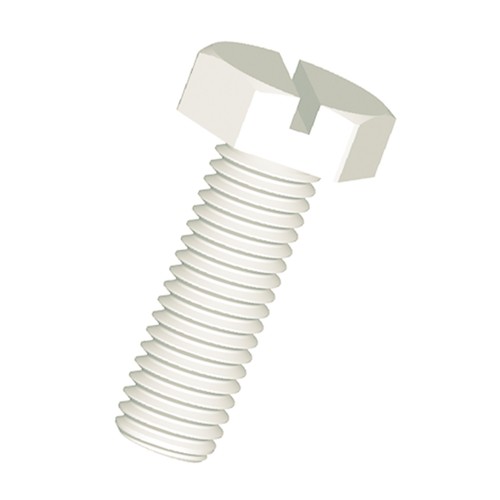

Slotted Hexagon Head Screw (DIN 933) made of PA

Slotted Hexagon Head Screw (DIN 933) made of PA

Technical specification Material: PA 6.6 (polyamide 66) Colour: natural... more

Close menu

Technical specification

Material: PA 6.6 (polyamide 66)

Colour: natural

Regulations: DIN 933

General Information Good coefficient of sliding friction High mechanical stability and... more

Close menu

General Information

Good coefficient of sliding friction

High mechanical stability and fatigue strength

Excellent resilience

Impact resistant

Resistant to abrasion

Resistant to cold

Chemical features:

Good resistance to weak alkalis, but only moderate resistance to strong alkalis; resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alcohols, esters, ketones, ethers and amines.

Material specification:

The polyamides are universal materials for mechanical functional parts

The temperature resistance of polyamide (from -30 to +100 °C, for a short time +120 °C) allows use in many industries

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Insulating properties and an amazingly high tensile strength

PA can also be used in the food processing industry and in medical fields

Resistant to corrosion and abrasion

Non-toxic and unmagnetic

Vibration-damping

PA 6.6 features the same chemical resistance as PA 6

PA 6.6 has a higher hardness, abrasion resistance, and a little higher operating temperature than PA 6

However, PA 6.6 is a little less impact resistant compared to PA 6

Material: PA 6.6 (polyamide 6.6)

Colour: natural

Density: 1.14 g/cm³ (DIN 53479)

Temperature range: -30 to +100 °C

Melting temperature: +255 °C (DIN 53736)

Yield stress: 83 N/mm² (ISO 527)

Elongation at break: 30 % (DIN 53455)

Bending strength: 115 N/mm² (DIN 53452)

Elastic modulus: 3,000 N/mm² (DIN 53457)

Impact resistance (Charpy): without break (DIN 53453)

Notch impact strength (Izod): 60 J/m (ASTM D 256)

Coefficient of sliding friction against steel (dry): 0.35 - 0.42

Dielectric loss factor (at 1 MHz): 0.025 (DIN 53483)

Volume resistivity: 10¹⁵ Ohm x cm (DIN 53482)

Surface resistance: approx. 10¹⁴ Ohm (DIN 53482)

Comparative tracking index (CTI): >600 V (IEC 112)

Dielectric strength: approx. 40 kV/mm (DIN 53481)

Water absorption (saturation): approx. 8.5 % (DIN 53495)

Moisture absorption (s.c.a.-saturation): approx. 2.9 % (DIN 53714)

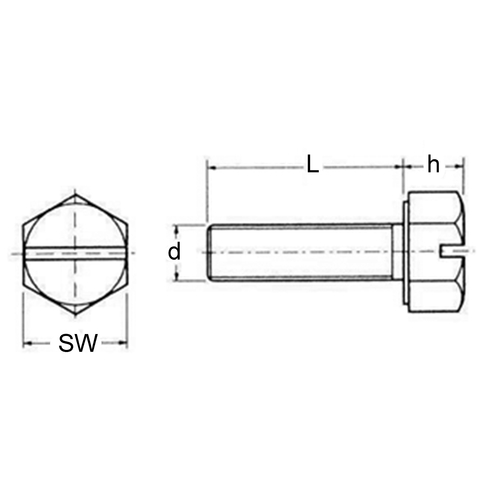

Item	External thread	Gewindelänge mm	h mm	SW mm	Einheit Stück	Price Euro*
337849	M3 x 0,5	4	2	5,5	25	48.00
337850	M3 x 0,5	4	2	5,5	50	78.00
337851	M3 x 0,5	5	2	5,5	25	48.00
337852	M3 x 0,5	5	2	5,5	50	78.00
337853	M3 x 0,5	6	2	5,5	25	48.00
337854	M3 x 0,5	6	2	5,5	50	78.00
337855	M3 x 0,5	8	2	5,5	25	52.00
337856	M3 x 0,5	8	2	5,5	50	86.00
337857	M3 x 0,5	10	2	5,5	25	48.00
337858	M3 x 0,5	10	2	5,5	50	78.00
337859	M3 x 0,5	12	2	5,5	25	52.00
337860	M3 x 0,5	12	2	5,5	50	86.00
337861	M3 x 0,5	16	2	5,5	25	52.00
337862	M3 x 0,5	16	2	5,5	50	86.00
337863	M3 x 0,5	20	2	5,5	25	48.00
337864	M3 x 0,5	20	2	5,5	50	78.00
337865	M3 x 0,5	25	2	5,5	25	48.00
337866	M3 x 0,5	25	2	5,5	50	78.00
337867	M3 x 0,5	30	2	5,5	25	48.00
337868	M3 x 0,5	30	2	5,5	50	78.00
337869	M4 x 0,7	6	2,8	7	50	48.00
337870	M4 x 0,7	6	2,8	7	100	80.00
337871	M4 x 0,7	8	2,8	7	50	48.00
337872	M4 x 0,7	8	2,8	7	100	80.00
337873	M4 x 0,7	10	2,8	7	25	50.00
337874	M4 x 0,7	10	2,8	7	50	82.00
337875	M4 x 0,7	12	2,8	7	25	50.00
337876	M4 x 0,7	12	2,8	7	50	82.00
337877	M4 x 0,7	16	2,8	7	25	50.00
337878	M4 x 0,7	16	2,8	7	50	82.00
337879	M4 x 0,7	20	2,8	7	25	50.00
337880	M4 x 0,7	20	2,8	7	50	82.00
337881	M4 x 0,7	25	2,8	7	25	50.00
337882	M4 x 0,7	25	2,8	7	50	82.00
337883	M4 x 0,7	30	2,8	7	25	48.00
337884	M4 x 0,7	30	2,8	7	50	78.00
337885	M4 x 0,7	40	2,8	7	25	50.00
337886	M4 x 0,7	40	2,8	7	50	82.00
337887	M5 x 0,8	6	3,5	8	25	48.00
337888	M5 x 0,8	6	3,5	8	50	78.00
337889	M5 x 0,8	8	3,5	8	25	48.00
337890	M5 x 0,8	8	3,5	8	50	78.00
337891	M5 x 0,8	10	3,5	8	25	48.00
337892	M5 x 0,8	10	3,5	8	50	78.00
337893	M5 x 0,8	12	3,5	8	25	60.00
337894	M5 x 0,8	12	3,5	8	50	103.00
337895	M5 x 0,8	16	3,5	8	25	48.00
337896	M5 x 0,8	16	3,5	8	50	78.00
337897	M5 x 0,8	20	3,5	8	25	48.00
337898	M5 x 0,8	20	3,5	8	50	78.00
337899	M5 x 0,8	25	3,5	8	25	48.00
337900	M5 x 0,8	25	3,5	8	50	78.00
337901	M5 x 0,8	30	3,5	8	25	48.00
337902	M5 x 0,8	30	3,5	8	50	78.00
337903	M5 x 0,8	40	3,5	8	25	48.00
337904	M5 x 0,8	40	3,5	8	50	78.00
337905	M6 x 1	6,5	4	10	50	50.00
337906	M6 x 1	6,5	4	10	100	80.00
337907	M6 x 1	8	4	10	50	50.00
337908	M6 x 1	8	4	10	100	80.00
337909	M6 x 1	10	4	10	50	63.00
337910	M6 x 1	10	4	10	100	107.00
337911	M6 x 1	12	4	10	25	48.00
337912	M6 x 1	12	4	10	50	78.00
337913	M6 x 1	16	4	10	25	48.00
337914	M6 x 1	16	4	10	50	78.00
337915	M6 x 1	20	4	10	25	48.00
337916	M6 x 1	20	4	10	50	78.00
337917	M6 x 1	25	4	10	25	48.00
337918	M6 x 1	25	4	10	50	78.00
337919	M6 x 1	30	4	10	25	48.00
337920	M6 x 1	30	4	10	50	78.00
337921	M6 x 1	40	4	10	25	60.00
337922	M6 x 1	40	4	10	50	103.00
337923	M6 x 1	45	4	10	25	56.00
337924	M6 x 1	45	4	10	50	97.00
337925	M6 x 1	50	4	10	10	52.00
337926	M6 x 1	50	4	10	25	114.00
337927	M6 x 1	60	4	10	10	86.00
337928	M6 x 1	60	4	10	25	185.00
337929	M6 x 1	70	4	10	10	95.00
337930	M6 x 1	70	4	10	25	206.00
337931	M6 x 1	80	4	10	10	97.00
337932	M6 x 1	80	4	10	25	208.00
337933	M8 x 1,25	8	5,5	13	25	48.00
337934	M8 x 1,25	8	5,5	13	50	78.00
337935	M8 x 1,25	10	5,5	13	25	48.00
337936	M8 x 1,25	10	5,5	13	50	78.00
337937	M8 x 1,25	16	5,5	13	25	50.00
337938	M8 x 1,25	16	5,5	13	50	82.00
337939	M8 x 1,25	20	5,5	13	25	50.00
337940	M8 x 1,25	20	5,5	13	50	82.00
337941	M8 x 1,25	25	5,5	13	25	50.00
337942	M8 x 1,25	25	5,5	13	50	82.00
337943	M8 x 1,25	30	5,5	13	25	50.00
337944	M8 x 1,25	30	5,5	13	50	82.00
337945	M8 x 1,25	35	5,5	13	25	71.00
337946	M8 x 1,25	35	5,5	13	50	122.00
337947	M8 x 1,25	40	5,5	13	25	71.00
337948	M8 x 1,25	40	5,5	13	50	122.00
337949	M8 x 1,25	50	5,5	13	5	71.00
337950	M8 x 1,25	50	5,5	13	15	180.00
337951	M8 x 1,25	60	5,5	13	10	48.00
337952	M8 x 1,25	60	5,5	13	25	103.00
337953	M8 x 1,25	70	5,5	13	5	82.00
337954	M8 x 1,25	70	5,5	13	15	189.00
337955	M8 x 1,25	80	5,5	13	10	48.00
337956	M8 x 1,25	80	5,5	13	25	103.00
337957	M10 x 1,5	16	6,7	17	10	48.00
337958	M10 x 1,5	16	6,7	17	25	103.00
337959	M10 x 1,5	20	6,7	17	10	63.00
337960	M10 x 1,5	20	6,7	17	25	133.00
337961	M10 x 1,5	30	6,7	17	10	48.00
337962	M10 x 1,5	30	6,7	17	25	103.00
337963	M10 x 1,5	40	6,7	17	10	48.00
337964	M10 x 1,5	40	6,7	17	25	103.00
