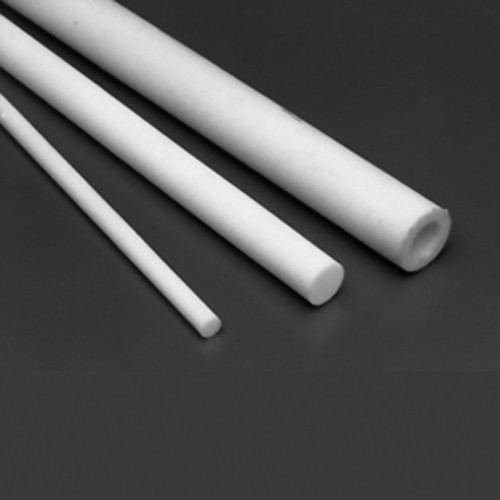

Sintered Pipe made of Porous PTFE

Sintered Pipe made of Porous PTFE
No additional information available.
General Information Use for Filtration of gases and fluids and as gas feeding and... more

General Information

Use for Filtration of gases and fluids and as gas feeding and distribution system (gassing).

THOMAPOR®-PTFE sintered elements are used for filtration of highly aggressive vapors, gases and fluids at highest temperatures up to +240 °C. The elements are easy to clean after the filtration process even when used with sticky media.

THOMAPOR®-PTFE sintered elements do not soil when dipped into water containing suspended matter as neither water nor electrolytes are able to enter into the pores. Nevertheless, the gas flow rate is high and of constant intensity.

Porous sintered plastic made of pure high-density PTFE (polytetrafluoroethylene). Through an exactly defined and controlled sintering process PTFE granules are fused together so that stable bodies of various shapes form. By granular material selection and choice of process parameters the pore size of the porous THOMAPOR®-sintered elements can be selectively influenced.

Usable in temperature ranges from -200 to +260 °C

Universal chemical resistance

Non-adhesive behavior

Physiological safety

Prevents water absorption

Hydrophobic, non-wettable

Use as porous false bottom

As dusting unit

As pressure-compensating element in apparatus building

As separator in the electrochemistry

Use of the porous material structure and its chemical resistance (condensate separation), separation of emulsions, diaphragm in electrodialysis, carrier for fluids.

Item Image Pore size
µm
Innen-Ø
mm
Außen-Ø
mm
Länge
mm
Einheit
Stück
Price
Euro*
Buy
14885
1 12,7 19 460 1 490.00
14886
1 12,7 25,4 460 1 540.00
14887
1 25,4 38,1 460 1 577.00
14888
1 39,6 52,4 460 1 616.00
14889
1 57,1 70 460 1 657.00
14890
1 66,4 76 460 1 740.00
14891
10 12,7 19 460 1 460.00
14892
10 12,7 25,4 460 1 488.00
14893
10 25,4 38,1 460 1 526.00
14894
10 39,6 52,4 460 1 560.00
14895
10 57,1 70 460 1 600.00
14896
10 66,4 76 460 1 672.00
14897
25 12,7 19 460 1 460.00
14898
25 12,7 25,4 460 1 488.00
14899
25 25,4 38,1 460 1 526.00
14900
25 39,6 52,4 460 1 560.00
14901
25 57,7 70 460 1 600.00
14902
25 66,4 76 460 1 672.00
