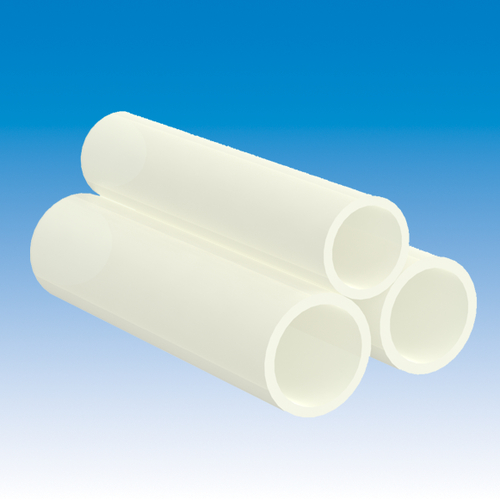

PVDF Pressure Pipe

Technical specification Material: PVDF (polyvinylidene fluoride) Colour: nature... more

Close menu

Technical specification

Material: PVDF (polyvinylidene fluoride)

Colour: nature

Temperature range: -30 to +140 °C

Density: 1.78 g/cm³ (ISO 1183)

Shore hardness D: 78° (ISO 868)

Yield stress: 55 MPa (DIN EN ISO 527)

Elongation at yield: 8 % (DIN EN ISO 527)

Tensile modulus: 1.950 MPa (DIN EN ISO 527)

Impact toughness: without break (DIN EN ISO 179)

Notch impact strength: 12 kJ/m² (DIN EN ISO 179)

Ball pressure hardness: 120 MPa (DIN EN ISO 2039-1)

Coefficient of linear thermal expansion: 1.3 × 10^-4 (ISO 11359-2)

Vicat B: 140 °C

Burning behaviour: DIN 4102 B1 low flammability (self-assessment without test certificate)

Dielectric strength: 25 kV/mm (DIN IEC 60243-1)

Surface resistivity: 10¹³ Ohm (DIN IEC 60093)

Max. operating pressure: 16 bar at +20 °C

Design: plain-end pipes

Special features: Produced from raw material with USP class VI certification, produced from DIBt-approved moulding compound, physiological safety in accordance with BfR, food compliance FDA and EU 10/2011

Close menu

No additional information available.

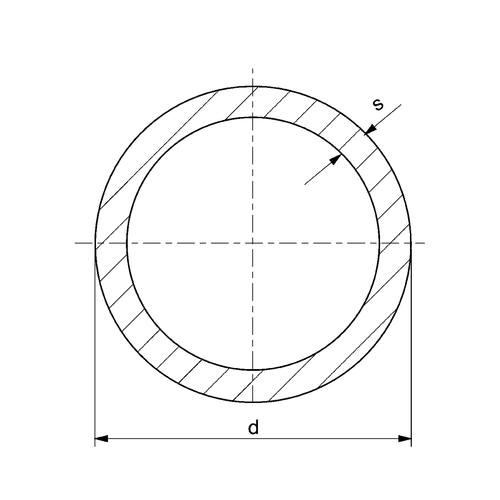

Item	Inside Ø mm	Außen-Ø mm	Wandstärke mm	Länge m	Einheit Stück	Price Euro*
350200	12,2	16	1,9	1	1	137.00
350201	16,2	20	1,9	1	1	159.00
350202	21,2	25	1,9	1	1	199.00
350203	27,2	32	2,4	1	1	320.00
350204	35,2	40	2,4	1	1	406.00
350205	44	50	3	1	1	522.00
350206	57	63	3	1	1	691.00
350207	67,8	75	3,6	1	1	947.00
