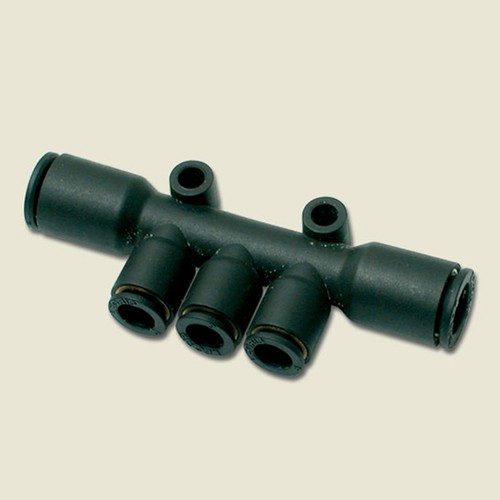

T-Shaped Plug-In Connector − threefold
Item |

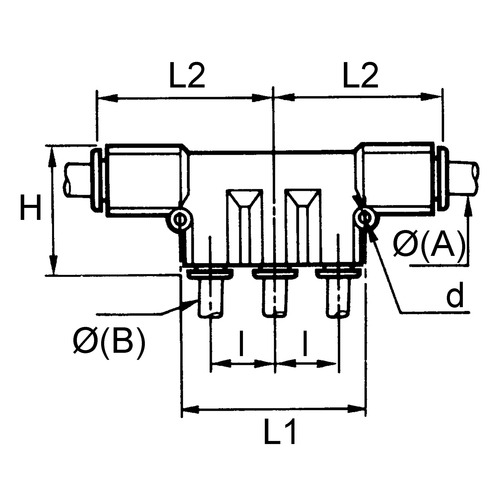

Tubing outside Ø (A) mm
|
Schlauch Außen-Ø (B) mm
|
d mm
|
H mm
|
l mm
|
L1 mm
|
L2 mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|---|---|---|
46931 | 6 | 4 | 3,2 | 25,5 | 11 | 36 | 34 | 5 | 72.00 | |
46932 | 8 | 4 | 4,2 | 29 | 14 | 47 | 38 | 3 | 60.00 | |
46933 | 8 | 6 | 4,2 | 29 | 14 | 47 | 38 | 3 | 65.00 | |
46934 | 10 | 6 | 4,2 | 32,5 | 16 | 54 | 44,5 | 3 | 65.00 | |
46935 | 10 | 8 | 4,2 | 32,5 | 16 | 54 | 44,5 | 3 | 70.00 |
