Product specification

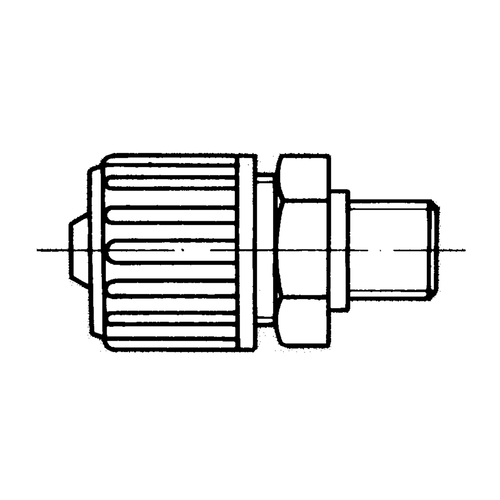

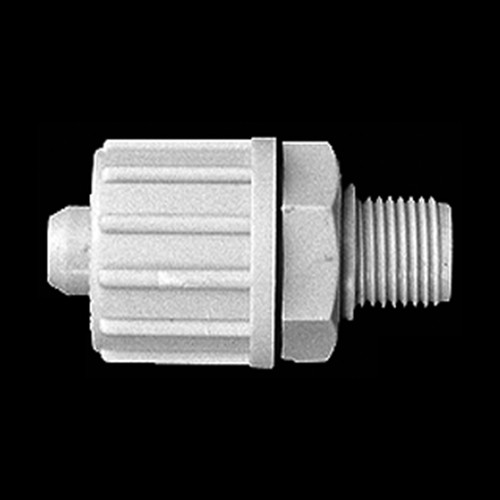

Straight, fitted to thick-walled (PVC)-tubing on one side, fitted with G- or NPT-external thread on the other side

General Information EMP-B1 Connection of apparatuses and instruments by fabric reinforced... more

Close menu

General Information EMP-B1

Connection of apparatuses and instruments by fabric reinforced tubing

In areas of chemical research and development

In chemical apparatus construction, pilot and production plants

For service and repair work

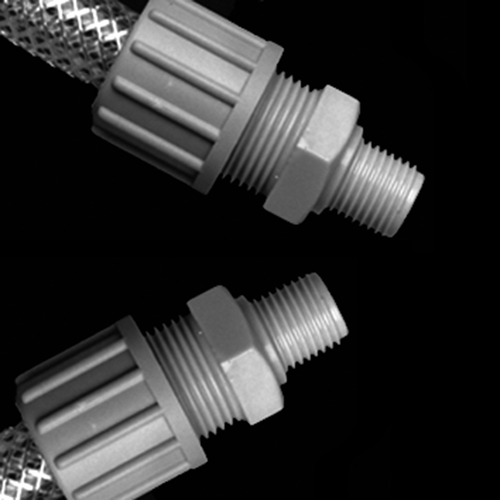

Screw fittings of chemically resistant, temperature stable, and biocompatible PP or PVDF for thick-walled tubing particularly made of PVC and reinforced with fabric. Fitted with tubing connection or G- and NPT-external thread resp.

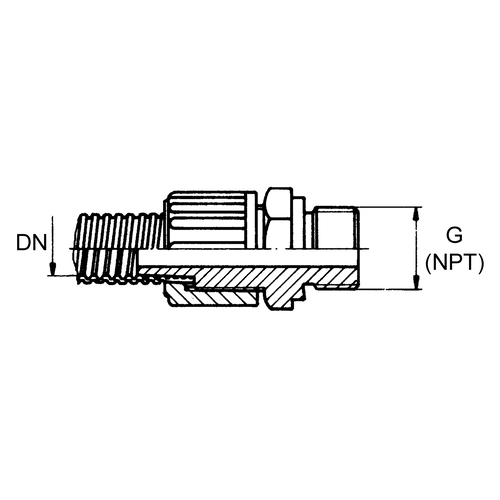

Handling: The non-slip knurled cap nut is mounted on the tube and the passed through tube end is slipped on the hose nozzle. Now the cap nut is screwed with the hose nozzle.

PP (Polypropylene)

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Thermoforming possible

Very good dielectrical properties

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Autoclavable

Resistant to hydrolysis

Physiologically safe

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.90 g/cm³

Temperature range: +5 to +90 °C

Shore hardness D: 72°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.05 %

Tensile strength: 25 - 40 N/mm²

Elongation at break: 800 %

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 0.3 g/10 min.

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Good breakdown strength

Low dielectric loss factor

Highest mechanical stability and stiffness

Meeting highest purity requirements

Comply with the guidelines from FDA and USP class VI, additionally PVDF has the KTW approval. Up to +150 °C it is non-toxic and since it has a similar property to glass it is a no-culture medium for microorganisms.

Can be treated by autoclave (absolute sterile) and sterilized with gamma-rays without losing its mechanical qualities

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Colour: nature, slightly translucent

Density: 1.75 g/cm³

Temperature range: -40 to +140 °C

Shore hardness D: 79°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 %

Tensile strength: 38 - 50 N/mm²

Surface resistance: >10¹³ Ohm

Melt flow index MFR: 6 g/10 min.

Item	Tubing inside Ø mm	Schlauch Außen-Ø mm	Außengewinde	Werkstoff	Einheit Stück	Price Euro*
49120	4	10	G 1/8"	PP	3	42.00
49121	5	11	G 1/8"	PP	3	42.00
49122	6	12	G 1/8"	PP	3	61.00
49123	8	14	G 1/8"	PP	3	81.00
49124	9	15	G 1/8"	PP	3	81.00
49125	10	16	G 1/8"	PP	3	94.00
49132	4	10	G 1/4"	PP	3	45.00
49133	5	11	G 1/4"	PP	3	45.00
49134	6	12	G 1/4"	PP	3	65.00
49135	8	14	G 1/4"	PP	3	87.00
49136	9	15	G 1/4"	PP	3	87.00
49137	10	16	G 1/4"	PP	3	106.00
49138	12	18	G 1/4"	PP	3	132.00
49140	13	19	G 1/4"	PP	3	132.00
49144	4	10	G 3/8"	PP	3	55.00
49145	5	11	G 3/8"	PP	3	55.00
49146	6	12	G 3/8"	PP	3	65.00
49147	8	14	G 3/8"	PP	3	87.00
49148	9	15	G 3/8"	PP	3	87.00
49149	10	16	G 3/8"	PP	3	113.00
49150	12	18	G 3/8"	PP	3	148.00
49151	12	21	G 3/8"	PP	2	120.00
49152	13	19	G 3/8"	PP	3	148.00
49153	13	20	G 3/8"	PP	2	120.00
49156	4	10	G 1/2"	PP	3	61.00
49157	5	11	G 1/2"	PP	3	61.00
49158	6	12	G 1/2"	PP	3	74.00
49159	8	14	G 1/2"	PP	3	94.00
49160	9	15	G 1/2"	PP	3	94.00
49161	10	16	G 1/2"	PP	3	116.00
49162	12	18	G 1/2"	PP	2	114.00
49164	13	19	G 1/2"	PP	2	114.00
49168	4	10	G 3/4"	PP	2	58.00
49169	5	11	G 3/4"	PP	2	58.00
49170	6	12	G 3/4"	PP	2	63.00
49171	8	14	G 3/4"	PP	2	73.00
49172	9	15	G 3/4"	PP	2	73.00
49173	10	16	G 3/4"	PP	2	90.00
49174	12	18	G 3/4"	PP	2	125.00
49176	13	19	G 3/4"	PP	2	125.00
49180	4	10	NPT 1/8"	PP	3	42.00
49181	5	11	NPT 1/8"	PP	3	42.00
49182	6	12	NPT 1/8"	PP	3	61.00
49183	8	14	NPT 1/8"	PP	3	81.00
49184	9	15	NPT 1/8"	PP	3	81.00
49185	10	16	NPT 1/8"	PP	3	94.00
49192	4	10	NPT 1/4"	PP	3	45.00
49193	5	11	NPT 1/4"	PP	3	45.00
49194	6	12	NPT 1/4"	PP	3	65.00
49195	8	14	NPT 1/4"	PP	3	87.00
49196	9	15	NPT 1/4"	PP	3	87.00
49197	10	16	NPT 1/4"	PP	3	106.00
49198	12	18	NPT 1/4"	PP	3	132.00
49200	13	19	NPT 1/4"	PP	3	132.00
49204	4	10	NPT 3/8"	PP	3	55.00
49205	5	11	NPT 3/8"	PP	3	55.00
49206	6	12	NPT 3/8"	PP	3	65.00
49207	8	14	NPT 3/8"	PP	3	87.00
49208	9	15	NPT 3/8"	PP	3	87.00
49209	10	16	NPT 3/8"	PP	3	113.00
49210	12	18	NPT 3/8"	PP	3	148.00
49212	13	19	NPT 3/8"	PP	3	148.00
49216	4	10	NPT 1/2"	PP	3	61.00
49217	5	11	NPT 1/2"	PP	3	61.00
49218	6	12	NPT 1/2"	PP	3	74.00
49219	8	14	NPT 1/2"	PP	3	94.00
49220	9	15	NPT 1/2"	PP	3	94.00
49221	10	16	NPT 1/2"	PP	3	116.00
49222	12	18	NPT 1/2"	PP	2	114.00
49224	13	19	NPT 1/2"	PP	2	114.00
49228	4	10	NPT 3/4"	PP	2	58.00
49229	5	11	NPT 3/4"	PP	2	58.00
49230	6	12	NPT 3/4"	PP	2	63.00
49231	8	14	NPT 3/4"	PP	2	73.00
49232	9	15	NPT 3/4"	PP	2	73.00
49233	10	16	NPT 3/4"	PP	2	90.00
49234	12	18	NPT 3/4"	PP	2	125.00
49236	13	19	NPT 3/4"	PP	2	125.00
49300	4	10	G 1/8"	PVDF	3	61.00
49301	5	11	G 1/8"	PVDF	3	61.00
49302	6	12	G 1/8"	PVDF	3	90.00
49303	8	14	G 1/8"	PVDF	2	86.00
49304	9	15	G 1/8"	PVDF	2	86.00
49305	10	16	G 1/8"	PVDF	2	90.00
49312	4	10	G 1/4"	PVDF	3	61.00
49313	5	11	G 1/4"	PVDF	3	61.00
49314	6	12	G 1/4"	PVDF	3	94.00
49315	8	14	G 1/4"	PVDF	2	86.00
49316	9	15	G 1/4"	PVDF	2	86.00
49317	10	16	G 1/4"	PVDF	2	95.00
49318	12	18	G 1/4"	PVDF	2	101.00
49320	13	19	G 1/4"	PVDF	2	101.00
49324	4	10	G 3/8"	PVDF	3	78.00
49325	5	11	G 3/8"	PVDF	3	78.00
49326	6	12	G 3/8"	PVDF	3	100.00
49327	8	14	G 3/8"	PVDF	2	90.00
49328	9	15	G 3/8"	PVDF	2	90.00
49329	10	16	G 3/8"	PVDF	2	101.00
49330	12	18	G 3/8"	PVDF	2	114.00
49332	13	19	G 3/8"	PVDF	2	114.00
49336	4	10	G 1/2"	PVDF	3	106.00
49337	5	11	G 1/2"	PVDF	3	106.00
49338	6	12	G 1/2"	PVDF	2	88.00
49339	8	14	G 1/2"	PVDF	2	110.00
49340	9	15	G 1/2"	PVDF	2	110.00
49341	10	16	G 1/2"	PVDF	2	110.00
49342	12	18	G 1/2"	PVDF	2	118.00
49344	13	19	G 1/2"	PVDF	2	118.00
49348	4	10	G 3/4"	PVDF	2	103.00
49349	5	11	G 3/4"	PVDF	2	103.00
49350	6	12	G 3/4"	PVDF	2	114.00
49351	8	14	G 3/4"	PVDF	2	116.00
49352	9	15	G 3/4"	PVDF	2	116.00
49353	10	16	G 3/4"	PVDF	2	119.00
49354	12	18	G 3/4"	PVDF	2	129.00
49356	13	19	G 3/4"	PVDF	2	129.00
49360	4	10	NPT 1/8"	PVDF	3	61.00
49361	5	11	NPT 1/8"	PVDF	3	61.00
49362	6	12	NPT 1/8"	PVDF	3	90.00
49363	8	14	NPT 1/8"	PVDF	2	86.00
49364	9	15	NPT 1/8"	PVDF	2	86.00
49365	10	16	NPT 1/8"	PVDF	2	90.00
49372	4	10	NPT 1/4"	PVDF	3	61.00
49373	5	11	NPT 1/4"	PVDF	3	61.00
49374	6	12	NPT 1/4"	PVDF	3	94.00
49375	8	14	NPT 1/4"	PVDF	2	86.00
49376	9	15	NPT 1/4"	PVDF	2	86.00
49377	10	16	NPT 1/4"	PVDF	2	95.00
49378	12	18	NPT 1/4"	PVDF	2	101.00
49380	13	19	NPT 1/4"	PVDF	2	101.00
49384	4	10	NPT 3/8"	PVDF	3	78.00
49385	5	11	NPT 3/8"	PVDF	3	78.00
49386	6	12	NPT 3/8"	PVDF	3	100.00
49387	8	14	NPT 3/8"	PVDF	2	90.00
49388	9	15	NPT 3/8"	PVDF	2	90.00
49389	10	16	NPT 3/8"	PVDF	2	101.00
49390	12	18	NPT 3/8"	PVDF	2	114.00
49392	13	19	NPT 3/8"	PVDF	2	114.00
49396	4	10	NPT 1/2"	PVDF	3	106.00
49397	5	11	NPT 1/2"	PVDF	3	106.00
49398	6	12	NPT 1/2"	PVDF	2	88.00
49399	8	14	NPT 1/2"	PVDF	2	110.00
49400	9	15	NPT 1/2"	PVDF	2	110.00
49401	10	16	NPT 1/2"	PVDF	2	110.00
49402	12	18	NPT 1/2"	PVDF	2	118.00
49404	13	19	NPT 1/2"	PVDF	2	118.00
49408	4	10	NPT 3/4"	PVDF	2	103.00
49409	5	11	NPT 3/4"	PVDF	2	103.00
49410	6	12	NPT 3/4"	PVDF	2	114.00
49411	8	14	NPT 3/4"	PVDF	2	116.00
49412	9	15	NPT 3/4"	PVDF	2	116.00
49413	10	16	NPT 3/4"	PVDF	2	120.00
49414	12	18	NPT 3/4"	PVDF	2	129.00
49416	13	19	NPT 3/4"	PVDF	2	129.00
