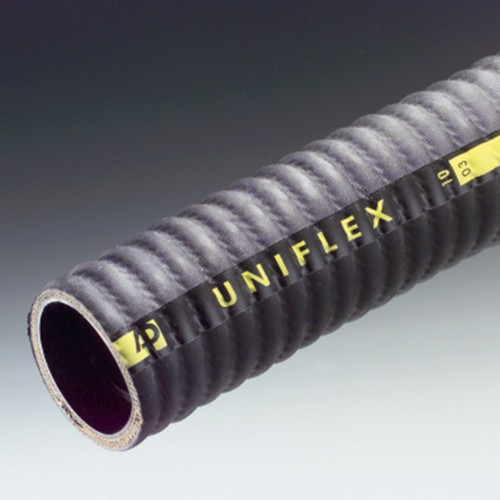

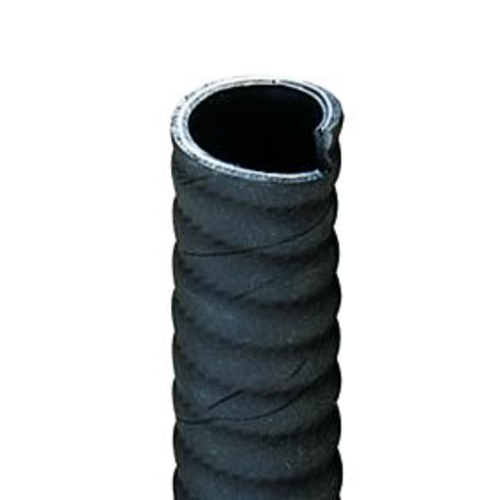

NBR Double-Wall Jacket Suction and Pressure Tubing
| Item |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|
| 12773 | 20 | 29 | 18 | 800 | 120 | 1 | 79.00 | |
| 12774 | 20 | 29 | 18 | 800 | 120 | 3 | 211.00 | |
| 12775 | 22 | 31 | 17 | 800 | 140 | 1 | 83.00 | |
| 12776 | 22 | 31 | 17 | 800 | 140 | 3 | 215.00 | |
| 49240 | 25 | 34 | 15 | 800 | 140 | 1 | 84.00 | |
| 49241 | 25 | 34 | 15 | 800 | 140 | 3 | 196.00 | |
| 49242 | 30 | 39 | 13 | 800 | 150 | 1 | 88.00 | |
| 49243 | 30 | 39 | 13 | 800 | 150 | 3 | 212.00 | |
| 49244 | 32 | 41 | 12 | 800 | 180 | 1 | 93.00 | |
| 49245 | 32 | 41 | 12 | 800 | 180 | 3 | 225.00 | |
| 49246 | 35 | 44 | 12 | 800 | 180 | 1 | 97.00 | |
| 49247 | 35 | 44 | 12 | 800 | 180 | 3 | 232.00 | |
| 49248 | 40 | 50 | 10 | 800 | 190 | 1 | 104.00 | |
| 49249 | 40 | 50 | 10 | 800 | 190 | 3 | 252.00 | |
| 49250 | 45 | 55 | 10 | 800 | 200 | 1 | 133.00 | |
| 49251 | 45 | 55 | 10 | 800 | 200 | 3 | 312.00 | |
| 49252 | 50 | 63 | 10 | 800 | 240 | 1 | 141.00 | |
| 49253 | 50 | 63 | 10 | 800 | 240 | 3 | 338.00 | |
| 49254 | 55 | 68 | 10 | 800 | 300 | 1 | 158.00 | |
| 49255 | 55 | 68 | 10 | 800 | 300 | 3 | 378.00 | |
| 49256 | 60 | 73 | 10 | 800 | 310 | 1 | 171.00 | |
| 49257 | 60 | 73 | 10 | 800 | 310 | 3 | 405.00 | |
| 49258 | 65 | 79 | 10 | 800 | 325 | 1 | 189.00 | |
| 49259 | 65 | 79 | 10 | 800 | 325 | 3 | 448.00 | |
| 49260 | 70 | 84 | 10 | 800 | 340 | 1 | 203.00 | |
| 49261 | 70 | 84 | 10 | 800 | 340 | 3 | 478.00 | |
| 49262 | 75 | 90 | 10 | 800 | 350 | 1 | 216.00 | |
| 49263 | 75 | 90 | 10 | 800 | 350 | 3 | 522.00 | |
| 12804 | 80 | 95 | 10 | 800 | 380 | 1 | 274.00 | |
| 12805 | 90 | 106 | 10 | 800 | 420 | 1 | 322.00 | |
| 12806 | 100 | 116 | 10 | 800 | 450 | 1 | 347.00 | |
| 12807 | 125 | 144 | 10 | 800 | 680 | 1 | 557.00 | |
| 49264 | 150 | 172 | 10 | 600 | 900 | 1 | 774.00 | |
