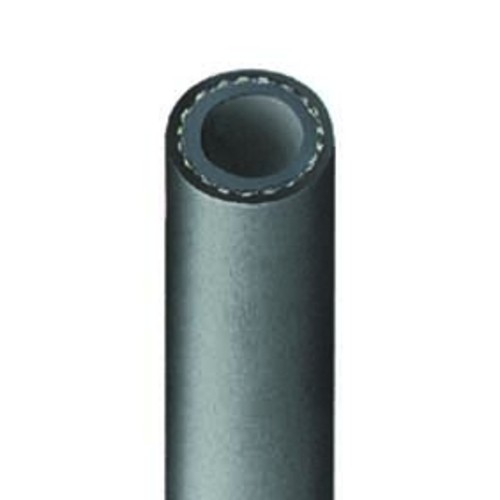

NBR Pressure Tubing for Gasoline and Oil - Antistatic

Application area Mineral oil industry, process technology, machine engineering and engine... more

Application area

Mineral oil industry, process technology, machine engineering and engine construction, operating and garage technology, apparatus construction

Product specification

Use for mineral oil products with a maximum aromatics content up to 50 %

Very high abrasion resistance

Good resistance to ozone, aging, and weather

Technical specification

Material:

Liner: NBR (butadiene-acrylonitrile rubber)

Jacket: NBR/EPDM compound

Colour: black, smooth

Temperature range: -40 to +80 °C

Design: textile fabric as pressure support

Max. operating pressure: 25 bar at +20 °C

Bursting pressure: 75 bar at +20 °C

Leakage resistance: <10⁶ Ohm

Tubing imprint: oil tubing, PN 25 bar, Ohm

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
340230	6	14	25	5	101.00
340231	6	14	25	10	189.00
340232	8	16	25	5	127.00
340233	8	16	25	10	236.00
340234	10	18	25	5	140.00
340235	10	18	25	10	257.00
340236	13	21	25	5	163.00
340237	13	21	25	10	300.00
340238	16	25	25	3	144.00
340239	16	25	25	5	223.00
340240	19	29	25	3	165.00
340241	19	29	25	5	255.00
340242	25	36	25	3	208.00
340243	25	36	25	5	328.00
