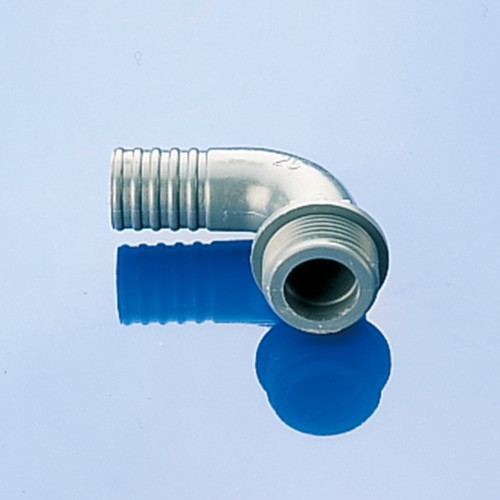

Elbow Barb Connector with Male Thread made of PP - macro

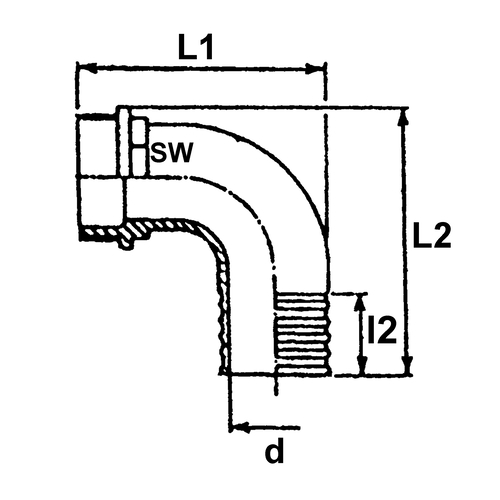

| Item |
Tubing inside Ø mm
|
Außengewinde |
d mm
|
l2 mm
|
L1 mm
|
L2 mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 14310 | 12 | G 1/2" | 7,5 | 30 | 44 | 57 | 19 | 5 | 37.00 | |
| 14311 | 16 | G 1/2" | 11 | 30 | 46 | 57 | 19 | 5 | 37.00 | |
| 14312 | 20 | G 1/2" | 15,5 | 33 | 60 | 70 | 24 | 5 | 42.00 | |
| 14313 | 12 | G 3/4" | 7,5 | 30 | 45 | 60 | 19 | 5 | 42.00 | |
| 14314 | 22 | G 3/4" | 17 | 30 | 62 | 78 | 30 | 5 | 42.00 | |
| 14315 | 22 | G 1" | 17 | 30 | 65 | 80 | 30 | 5 | 48.00 | |
