Application area

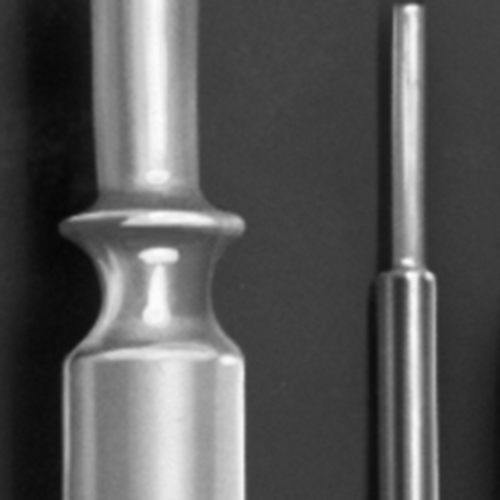

Kink protection of cables and lines, protection from environmental influences, insulation of cable harnesses, for bundling and for colour coding
Product specification
High dielectric strength
Heat shock resistance (4 h at +220 °C): no breaks, no flowing or dripping
No breaks at heat-influences (168 h at +158 °C)
Flexibilty after cold effests (4 h at -55 °C)
Supplied in dispenser box
Technical specification
Material: radiation cross-linked polyolefin, flexible
Colour: black
Temperature range: -55 to +110 °C
Shrinkage temperature: +110 °C
Longitudinal shrinkage: -15 %
Tensile strength: >9 MPa
Elongation at break: >250 %
Flammability: <60 sec. (ASTM D 2671)
Water absorption: <1 % (ASTM D 570)
Electrical resistance: >1012 Ohm x cm
Operating voltage: 600 V
Dielectric strength: >11.8 kV/mm
Breakdown voltage: at 2.5 kV for 1 min no breakdown
Regulations: UL 224 +125 °C; MIL-I-23053/4c, class 3
| Item | Image |

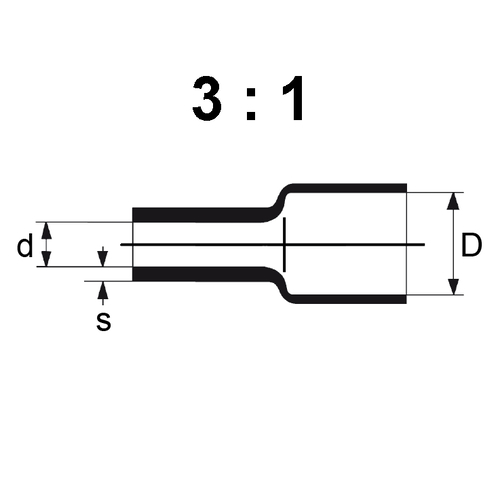

Ø before shrinkage (D) mm
|
Ø nach Schrumpfung (d) mm
|
Wandstärke nach Schrumpfung (s) mm
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 339549 |
|
3,2 | 0,6 | 0,96 | 5 | 56.00 | |
| 339550 |
|
4,8 | 1,5 | 1,06 | 4 | 56.00 | |
| 339551 |
|
6,4 | 2 | 1,19 | 3,5 | 56.00 | |
| 339552 |
|
9,5 | 3 | 1,27 | 3 | 56.00 | |
| 339553 |
|
12,7 | 4 | 1,4 | 2,5 | 56.00 | |
