Application area
Extremely loaded electrical insulations
Product specification

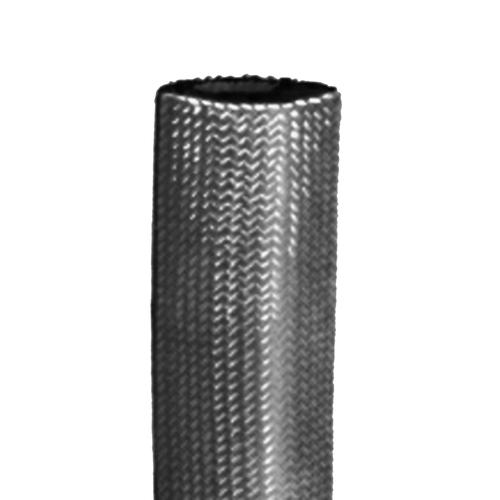

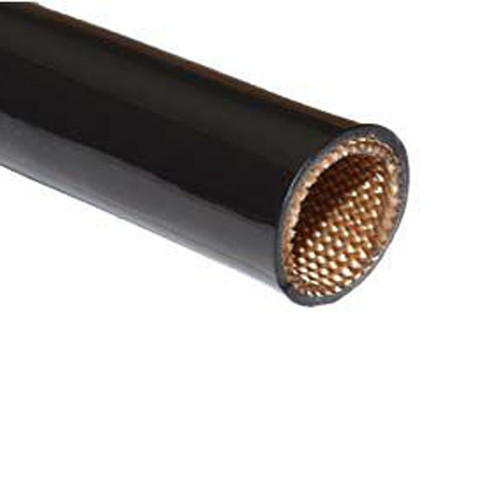

Flexible safety insulation tubing made of dense glass silk braiding with calibrated, strong silicone rubber jacket.
High thermal loading capacity, self-extinguishing. When overheated, vitrification occurs without melting and without formation of toxic gases or residues; chemically nearly inert, resistant to oxidative effects too.
Technical specification
Colour: black
Temperature range: +180 °C, for a short time +200 °C
Insulation class according to VDE: H
Dielectric strength: 2.5 kV
Flammability rating: UL 94 V-0
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Wandstärke mm
|
Einheit m
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|
| 48031 |
|
3 | 4,2 | 0,6 | 5 | 32.00 | |
| 48032 |
|
3 | 4,2 | 0,6 | 10 | 48.00 | |
| 48033 |
|
3 | 4,2 | 0,6 | 30 | 130.00 | |
| 48034 |
|
6 | 7,4 | 0,7 | 5 | 50.00 | |
| 48035 |
|
6 | 7,4 | 0,7 | 10 | 88.00 | |
| 48036 |
|
6 | 7,4 | 0,7 | 30 | 214.00 | |
| 48037 |
|
8 | 9,5 | 0,7 | 5 | 69.00 | |
| 48038 |
|
8 | 9,5 | 0,7 | 10 | 125.00 | |
| 48039 |
|
8 | 9,5 | 0,7 | 30 | 299.00 | |
