Insulating Spacers made of PEs-glass fiber reinforced - conical

Insulating Spacers made of PEs-glass fiber reinforced - conical

Technical specification Design: conical Tolerance: 1 - 15 mm: ±0.25 mm; 16... more

Close menu

Technical specification

Design: conical

Tolerance: 1 - 15 mm: ±0.25 mm; 16 - 50 mm: ±0.5 mm; 51 - 100 mm: ±1.0 mm

General Information Available in three designs: conical, drum-type and as hexagon Internal... more

Close menu

General Information

Available in three designs: conical, drum-type and as hexagon

Internal thread on both sides

Threads are mutually insulated

Thread inserts made of steel

Chemical features:

Resistant to fuels, brake fluid, mineral, lubricating and heating oils, acids and medium-strong alkalis

Material specification:

The glass fibre reinforced polyester features high strength, stiffness and dimensional stability, high dimensional stability under heat, favourable dielectrical properties, good arc resistance, resistance to UV light and good resistance to weather, as well as good chemical resistance except to alkalis with a pH value >9; particularly suitable for mechanically highly loadable components due to glass fibre reinforcement.

Material: polyester, glass fibre reinforced (15 %)

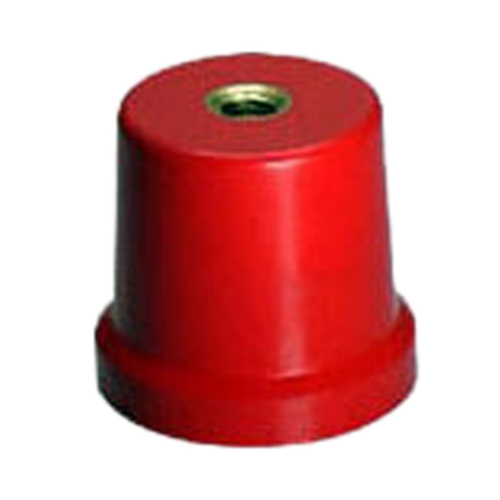

Colour: red

Density: 1.9 g/cm³

Temperature range: -40 to +135 °C

Dielectric strength: 10 kV/mm (ASTM D 149)

Tensile strength: 400 kg f / cm

Bending strength: 900 kg f / cm

Pressure resistance: 1500 kg f / cm

Notch impact strength (Izod): 250 J / m

Water absorption: 0.15 % (at +23 °C / 24 h)

Flammability rating: UL 94 V-0

Burning behaviour: Self-extinguishing

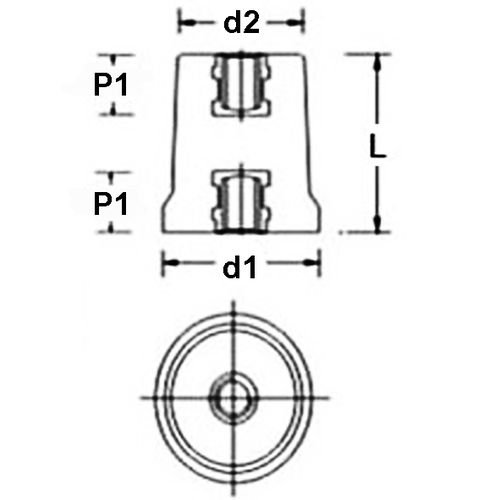

Item	L mm	Internal thread	P1 mm	Nennspannung (AC/DC) Volt	d1 mm	d2 mm	Einheit Stück	Price Euro*
314001	30	M6 x 1	10	600/750	26	30	5	45.00
314002	30	M6 x 1	10	600/750	26	30	15	125.00
314005	40	M8 x 1,25	15	1000/1200	33	40	5	60.00
314006	40	M8 x 1,25	15	1000/1200	33	40	15	170.00
314007	40	M10 x 1,5	17	1000/1200	33	40	5	69.00
314008	40	M10 x 1,5	17	1000/1200	33	40	15	191.00
314009	50	M10 x 1,5	17	1200/1500	41	50	5	88.00
314010	50	M10 x 1,5	17	1200/1500	41	50	15	247.00
314011	50	M12 x 1,75	17	1200/1500	41	50	5	110.00
314012	50	M12 x 1,75	17	1200/1500	41	50	15	300.00
314013	60	M12 x 1,75	20	1500/1800	43	50	5	110.00
314014	60	M12 x 1,75	20	1500/1800	43	50	15	300.00
