Product specification

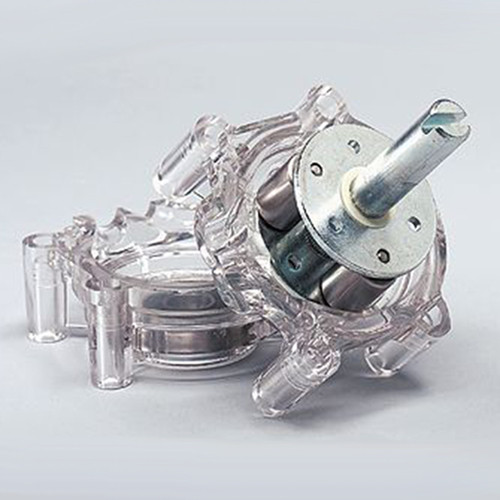

The pump heads made of glass-clear Lexan® polycarbonate consist of two identical housing parts with fitted in maintenance-free ball bearings, a pipe identical for all housing dimensions, and the screw joints.
| Item | Image |
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
Einheit Stück
|
max. FL bei 1 UpM ml/min.
|
max. FL bei 15 UpM ml/min.
|
max. FL bei 400 UpM ml/min.
|
max. FL bei 100 UpM ml/min.
|
Price Euro* |
Buy |
|---|---|---|---|---|---|---|---|---|---|---|
| 97013 |
|
0,8 | 4 | 1 | 0,06 | 1,2 | 24 | 6 | 455.00 | |
| 97016 |
|
3,2 | 6,4 | 1 | 0,8 | 16 | 320 | 80 | 455.00 | |
| 97015 |
|
4,8 | 9,5 | 1 | 1,7 | 34 | 680 | 170 | 455.00 | |
| 97017 |
|
6,4 | 9,5 | 1 | 2,8 | 46 | 1.120 | 280 | 455.00 | |
