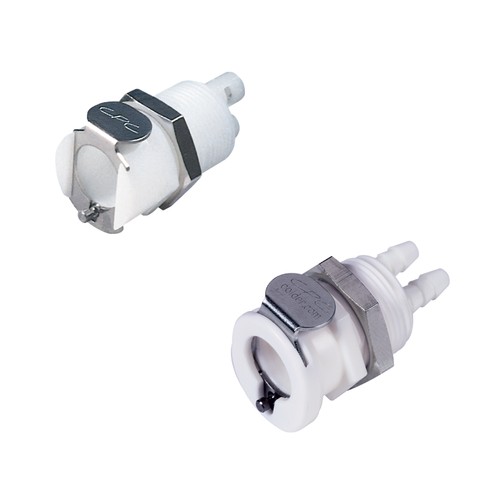

Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel

Product specification Female coupling part. With port and hose nozzle for control panel... more

Product specification

Female coupling part. With port and hose nozzle for control panel mounting. Can be combined with all male coupling parts.

General Information Quick-Disconnect Coupling THOMAFLUID ® -quick-disconnect coupling... more

General Information Quick-Disconnect Coupling

THOMAFLUID®-quick-disconnect coupling systems are excellently suited for connecting and disconnecting of tubes, apparatuses etc. The quick-disconnect couplings are easy to operate, connecting and disconnecting can be done by one hand. The coupling is self-locking when the nipple is plugged-in. For disconnection a short thumb pressure on the lock is sufficient to pull out the nipple easily. All nipples are fitted with an easily interchangeable, reliably sealing O-ring.

A complete operable THOMAFLUID®-quick-disconnect coupling system consists of a coupling part and a nipple part, both parts may be fitted with valves. A complete quick-disconnect coupling system locking at one side consists of a coupling part with shut-off and a nipple part with port, or a coupling part with port and a nipple part with shut-off. To get a coupling locking on both sides, a coupling part as well as a nipple part, both with shut-off, have to be obtained.

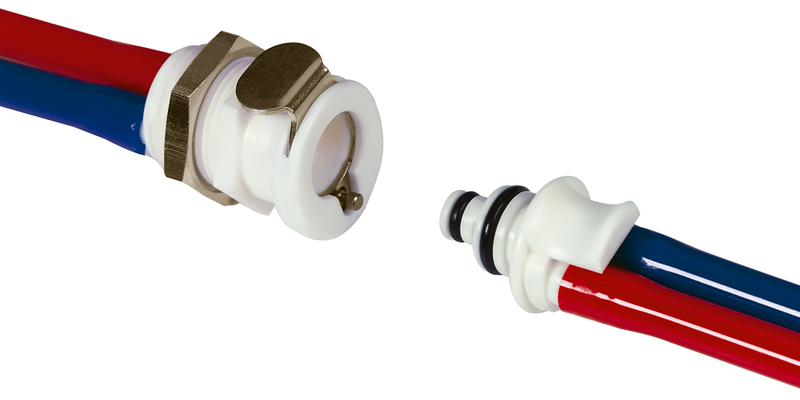

General Information Twin-Tube

Simultaneous coupling of two tubes with a quick-release coupling.

Two separate flow channels in one quick-release coupling.

Female coupling part fitted for front panel mounting.

Material:

Valve body: POM (polyacetal, polyoxymethylene)

Gasket: NBR (butadiene-acrylonitrile-rubber)

Colour: white

Nominal width: 2.3 mm (1.0 mm per connection)

Plug diameter: approx. 6.2 mm

Temperature range: -40 to +80 °C

Max. operating pressure: 6.9 bar per line at +20 °C

Item Image Connection Ventil Länge
mm
Schott-Ø
mm
Einheit
Stück
Price
Euro*
Buy

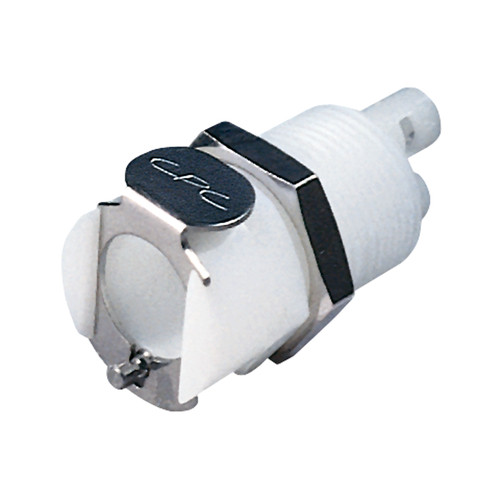

13954
Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel
Tülle 1,6 mm ohne 44 17,5 1 38.00

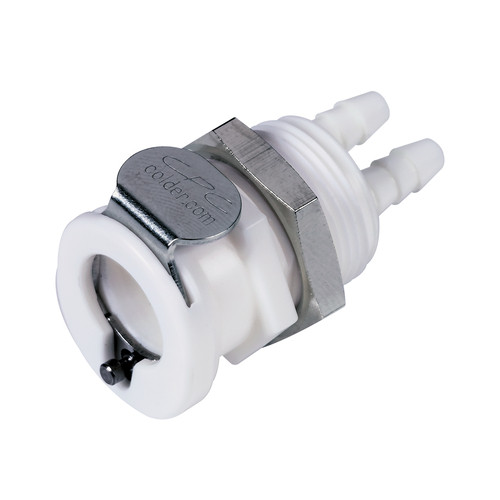

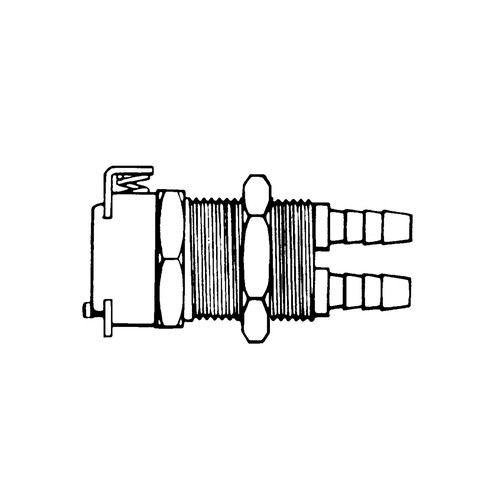

13955
Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel
Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel Multi-Lumen Quick-Disconnect Coupling made of POM - Control Panel
Tülle 4 mm ohne 44 17,5 1 36.00
