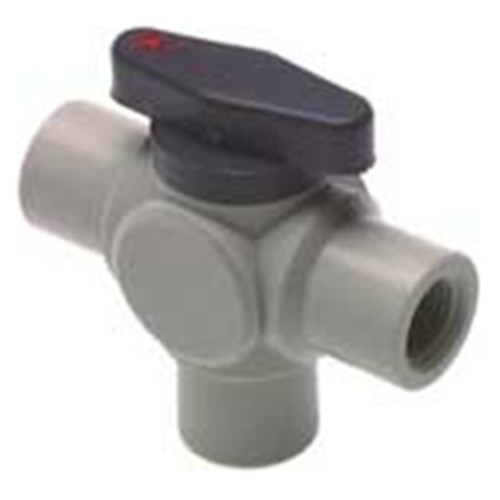

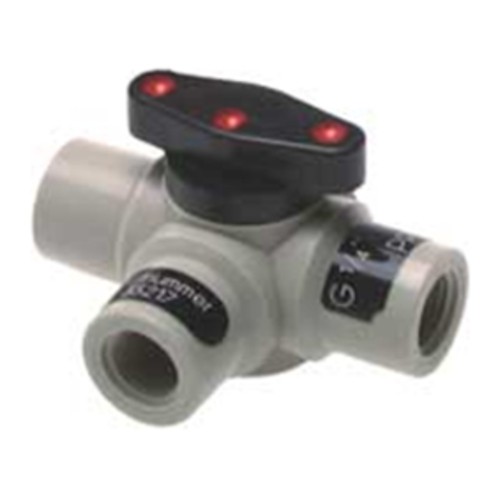

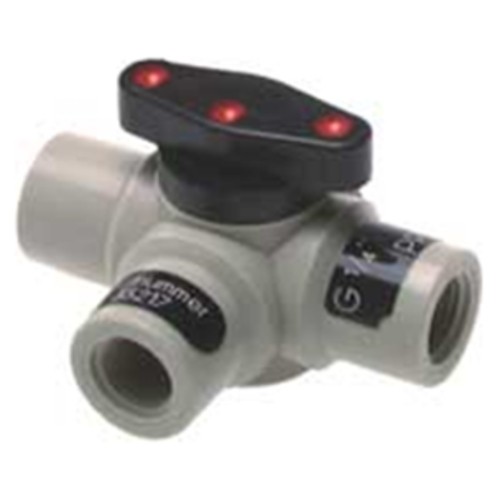

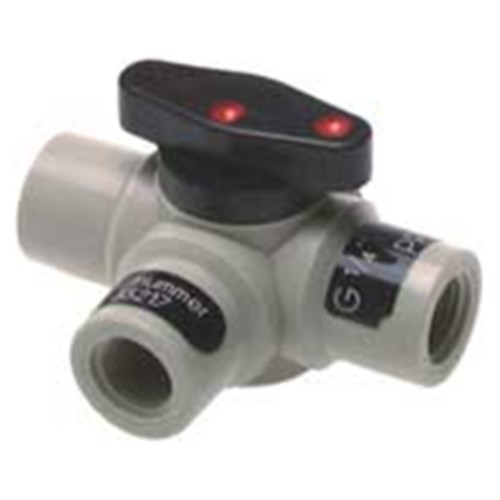

High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded

Product specification Light type, produced by the injection-moulding process. Ball with stem... more

Product specification

Light type, produced by the injection-moulding process.

Ball with stem is both centered and sealed by sealing sleeves, thus ensuring optimal sealing of the ball to the connections and preventing an undesired leakage of the medium.

Highest media resistance is guaranteed by housing made of PP, PVDF or PFA as well as by sealing sleeves made of PTFE.

Technical specification

Material:

Housing: PP (polypropylene), PVDF (polyvinylidene fluoride) or PFA (perfluoroalkoxy)

Sealing sleeves: PTFE (polytetrafluoroethylene)

O-ring: FPM (fluorinated rubber)

General Information THOMAFLUID ® -ball cocks with rotary handle are available in numerous... more

Close menu

General Information

THOMAFLUID^®-ball cocks with rotary handle are available in numerous variations.

The type EMP-L6 is produced cost-effectively by injection moulding, providing a remarkable manageability and compactness of the cock body.

The cocks are excellently suitable for direct wall mounting due to their rectangular construction. The product range varies from two-way cocks with through bore to five-way cocks with ball angled bore.

Therefore, the desired solutions can be found for specific applications:

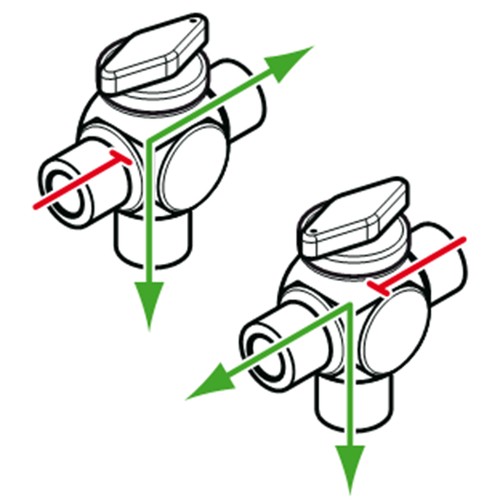

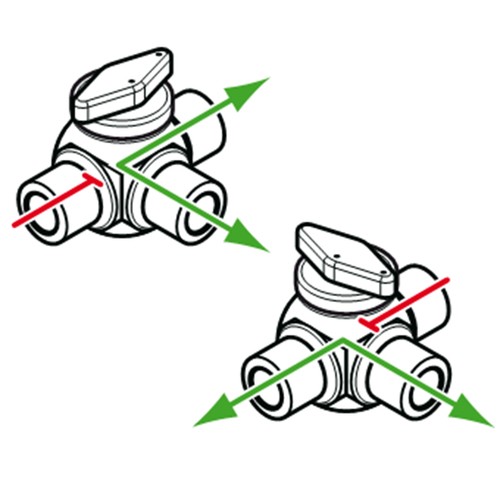

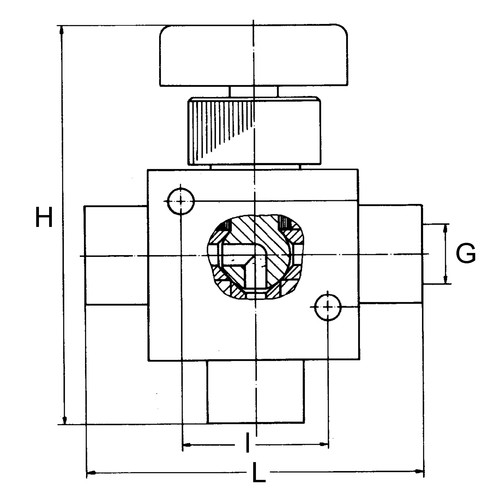

Three-way ball cock (ball with L-bore/vertical design)

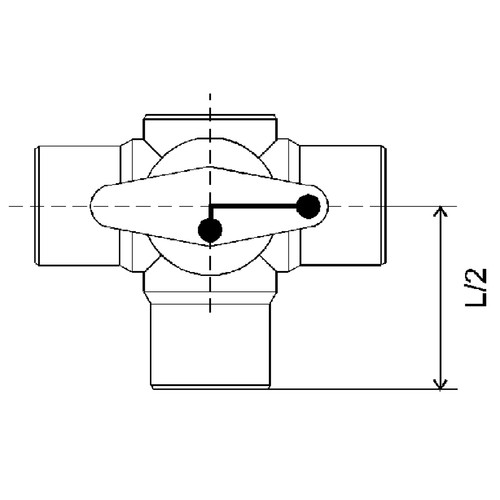

Three-way ball cock (ball with L-bore/horizontal design)

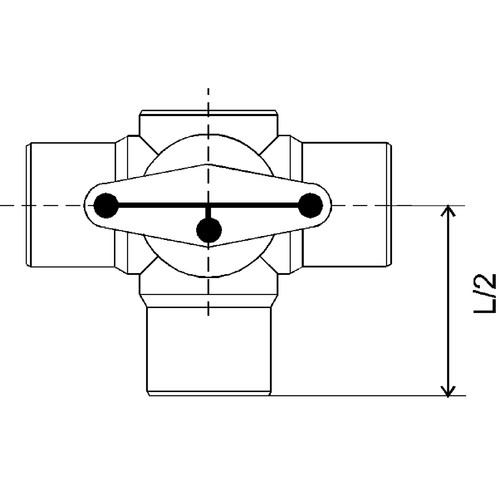

Three-way ball cock (ball with T-bore/horizontal design)

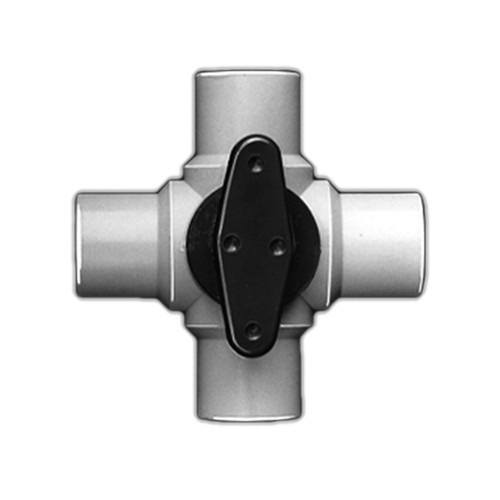

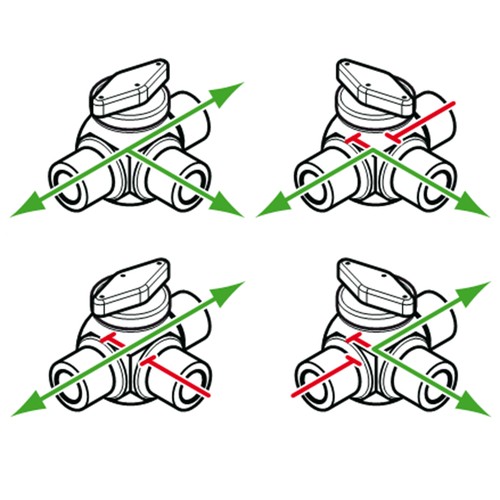

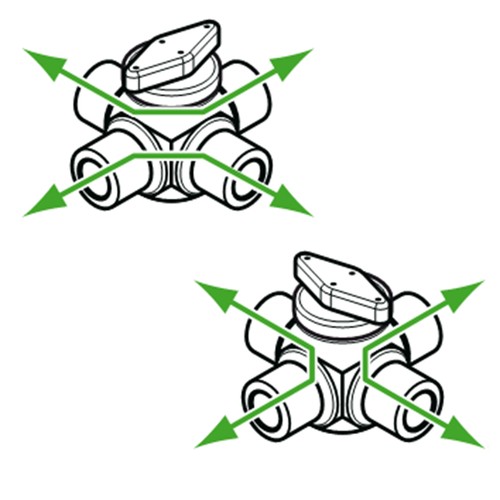

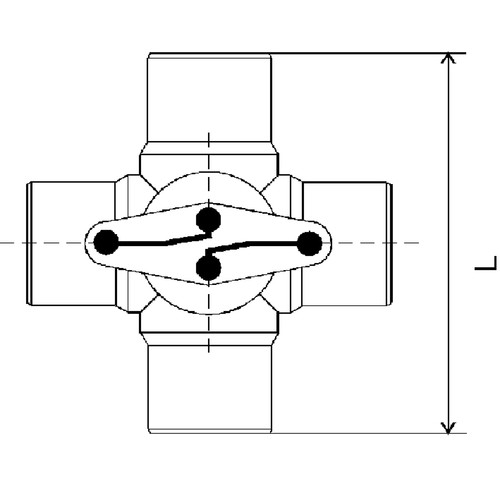

Four-way ball cock (ball with double L-bore)

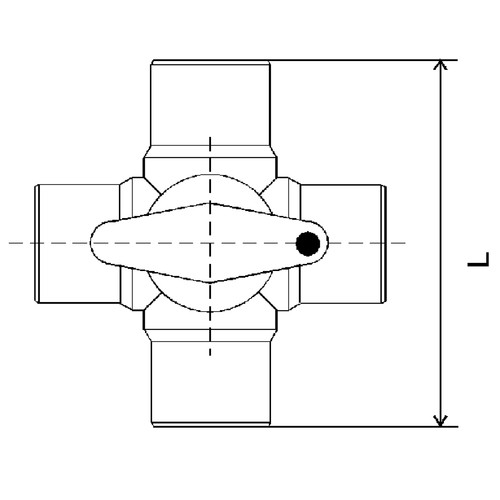

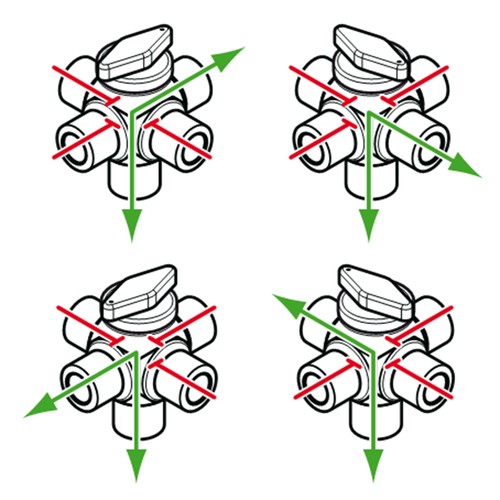

Five-way ball cock (ball with angled bore, vertical)

The ball cocks are designed for max. 10 bar (at +20 °C).

Safe and reliable isolation, mixture as well as distribution of gases and liquids

High flow rates even at heavily contaminated media

Ball and stem are manufactured in one piece

Sealing sleeves made of PTFE with highest resistance to chemically aggressive media

Securing of the sealing sleeves by O-rings made of FPM

Sealing of the ball upward by stem sealing using an O-ring

Numerous connection possibilities due to compatibility with THOMAFLUID^®-and MULTIFIT^®-tubing connectors, pipe connectors and fittings

Easily revolving manual rotary handle with position indicator

Fastening possibilities due to fixing clamps and angle brackets

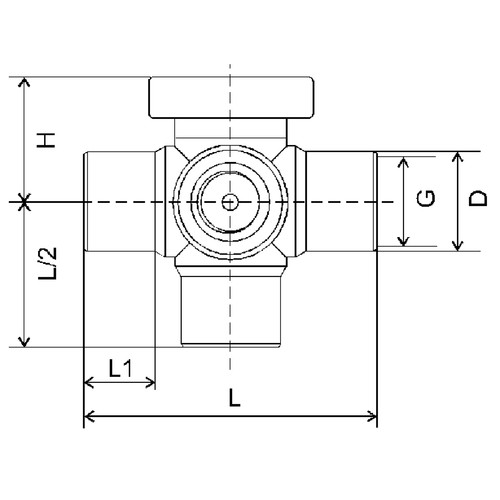

Seamless cylindrical G1/2" and G1/4" internal thread according to DIN ISO 228

PP (Polypropylene)

High surface hardness

Resistant to hydrolysis

Autoclavable

Thermoforming possible

Physiologically safe

Very good dielectrical properties

Extremely good impact toughness and notch impact strength

Higher hardness and stiffness as well as better resilience than PE

Good resistance to alcohols, ketones, conc. acids and alkalis

Not stable to aromatic hydrocarbons, fats and oils, halogenes

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: grey

Density: 0.92 g/cm³

Temperature range: +5 to +90 °C

Max. operating pressure: 10 bar at +20 °C

Shore hardness D: 72°

Water absorption: <0.05 % (lowest water absorption)

Tensile strength: 25 - 40 N/mm²

Elongation at break: 800 %

Surface resistance: >10¹³ Ohm

PVDF (Polyvinylidene fluoride)

High-quality technical plastic for chemical apparatus and machine building, especially in the petrochemical, metallurgical, pharmaceutical, food processing, paper and textile industry as well as in the nuclear technology.

High impact toughness even at low temperatures

Highest mechanical stability and stiffness

Good breakdown strength

Low dielectric loss factor

Physiologically safe

Meeting highest purity requirements

Outstanding resistance to UV, weather and aging

Flame-resistant

High thermal stability

Resistant to alcohols, fats and oils, halogenes, alkalis, acids

Not stable to aromatic hydrocarbons, ketones, amines, pyridine, dimethylformamide, hot alkalis, fuming sulfuric acid

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: nature, slightly translucent

Density: 1.75 g/cm³

Temperature range: -40 to +140 °C

Shore hardness D: 79° (great hardness)

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.04 % (water resistant)

Tensile strength: 38 - 50 N/mm²

Elongation at break: 12 %

Surface resistance: >10¹³ Ohm

PTFE (Polytetrafluoroethylene)

Heavy-duty plastic

Antiadhesive surface

Highest gas-tightness

Non-combustible

Outstanding sliding properties

High tracking resistance

Excellent stress cracking resistance

Excellent weather resistance

Very good dielectrical properties independent of frequency and temperature

Very good electrical insulating capacity also at air humidity

Very good chemical resistance to most aggressive media

Regulatory compliance to FDA 21 CFR 177.1520, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: milky, white

Density: 2.20 g/cm³

Temperature range: -200 to +150 °C

Shore hardness D: 60°

Max. operating pressure: 6 bar at +20 °C

Water absorption: 0.01 %

Tearing strength: 30 - 40 N/mm²

Elongation at break: 300 %

Surface resistance: >10¹⁷ Ohm

PFA (Perfluoroalkoxy)

High-quality technical plastic for chemical apparatus and machine construction as well as electrical engineering

Very good pressure resistance

Very high resistance to media

Excellent resistance to weather

Flame-resistant

Regulatory compliance to FDA 21 CFR 177.1520, USP class VI, RoHS, BPA-free, DEHP-free, BSE/ADI-free

Colour: milky, translucent

Density: 2.10 g/cm³

Temperature range: -200 to +200 °C (highest dimensional stability in heat)

Shore hardness D: 60° to 65°

Max. operating pressure: 10 bar at +20 °C

Water absorption: <0.03 %

Tensile strength: 27 to 32 N/mm²

Elongation at break: 300 %

Surface resistance: >10¹⁷ Ohm

FPM (Fluorinated rubber)

FPM is a polymer of highest quality made of fluorinated hydrocarbons (fluorine content 64 % to 70 %) and belongs to the group of elastomers

FPM has the best resistance to swelling in mineral oils compared to all elastomers

Highest sealing force in continuous operation (after 100 h at +150 °C in air still 90 % of the initial sealing force)

Lowest evaporation rates at high vacuum

Low permeability to gas

Outstanding radiation resistance

Excellent chemical and physical properties, almost identical to those of PTFE. The essential difference compared to PTFE is the lower cold flow, lower diffusion and better transparency.

High chemical resistance to many chemicals, ozone, heat and weather.

Unstable to polar solvents such as ketones and esters (considerable swelling), organic acids (acetic acid or formic acid), strong bases such as amines (chemical attack).

Not suitable for applications at temperatures below -20 °C as well as in hot steam.

Colour: black

Density: 1.10 g/cm³

Temperature range: -30 to +220 °C, for a short time +300 °C

Water absorption: no data

Tensile strength: 13 N/mm²

Elongation at break: 450 %

Shore hardness A: 75°

Surface resistance: no data

Item	Image	Design	NW mm	Innengewinde	max. Durchfluss Flüssigkeiten¹ l/h	Werkstoff	Einheit Stück	Price Euro*
304881	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	3	G 1/8"	500	PP	1	137.00
304882	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	3	G 1/8"	500	PVDF	1	183.00
43010	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	4	G 1/4"	610	PP	1	154.00
304006	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	4	G 1/4"	610	PVDF	1	233.00
304011	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	4	G 1/4"	610	PFA	1	544.00
304883	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	6	G 1/4"	900	PP	1	154.00
304884	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	6	G 1/4"	900	PVDF	1	233.00
304885	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	6	G 1/4"	900	PFA	1	544.00
304886	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	8	G 1/8"	1.900	PP	1	308.00
43014	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	10	G 1/2"	3.900	PP	1	308.00
304007	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	10	G 1/2"	3.900	PVDF	1	666.00
304012	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, horizontal	10	G 1/2"	3.900	PFA	1	1,321.00
304004	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	4	G 1/4"	610	PP	1	154.00
304005	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	4	G 1/4"	610	PVDF	1	233.00
304010	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	4	G 1/4"	610	PFA	1	544.00
304887	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	6	G 1/4"	900	PP	1	154.00
304888	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	6	G 1/4"	900	PVDF	1	233.00
304889	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	6	G 1/4"	900	PFA	1	544.00
28894²	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, L, vertikal	8	G 1/2"	1.900	PTFE	1	1,284.00
304890	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	3	G 1/8"	500	PP	1	137.00
304891	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	3	G 1/8"	500	PVDF	1	208.00
43024	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	4	G 1/4"	610	PP	1	137.00
304008	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	4	G 1/4"	610	PVDF	1	233.00
304013	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	4	G 1/4"	610	PFA	1	544.00
304892	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	6	G 1/4"	900	PP	1	137.00
304893	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	6	G 1/4"	900	PVDF	1	233.00
304894	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	6	G 1/4"	900	PFA	1	544.00
43028	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	10	G 1/2"	3.900	PP	1	311.00
304009	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	10	G 1/2"	3.900	PVDF	1	700.00
304014	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	3-Wege, T, horizontal	10	G 1/2"	3.900	PFA	1	1,252.00
43037	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	2	G 1/4"	100	PP	1	137.00
304015	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	4	G 1/4"	610	PP	1	217.00
43038	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	4	G 1/4"	610	PVDF	1	299.00
304018	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	4	G 1/4"	610	PFA	1	676.00
304016	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	6	G 1/2"	900	PP	1	506.00
304017	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	6	G 1/2"	900	PVDF	1	731.00
304019	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	4-Wege, Doppel-L	6	G 1/2"	900	PFA	1	1,321.00
304895	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	5-Wege, L, vertikal	3	G 1/8"	500	PP	1	230.00
304896	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	5-Wege, L, vertikal	3	G 1/8"	500	PVDF	1	289.00
304020	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	5-Wege, L, vertikal	4	G 1/4"	610	PP	1	271.00
304021	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	5-Wege, L, vertikal	4	G 1/4"	610	PVDF	1	343.00
304022	High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded High-Quality Multiway Ball Cock made of PP, PVDF or PFA - injection-molded	5-Wege, L, vertikal	4	G 1/4"	610	PFA	1	804.00
