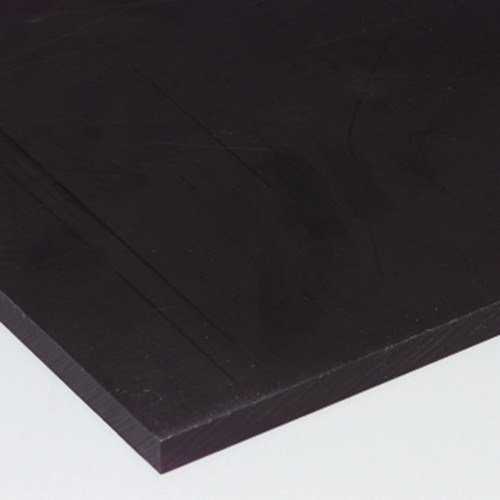

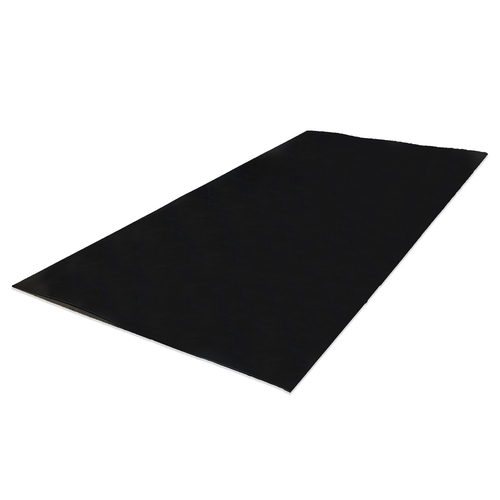

Plate made of HDPE

Product specification Good impact toughness (even at low temperatures) Good chemical... more

Product specification

Good impact toughness (even at low temperatures)

Good chemical resistance

High density and UV resistance

Good resistance to weather and aging

Antiadhesive surface

Low mechanical stability

Not usable for slid functions

Technical specification

Material: HDPE (rigid polyethylene)

Colour: black

Shore hardness D: 66° (DIN 53505)

Density: 0.95 g/cm3 (DIN 53479)

Temperature range: -50 to +80 °C, for a short time +90 °C

Tearing strength: 30 MPa (DIN 53455)

Elongation at break: 1,000 % (DIN 53455)

Bending strength: 30 MPa (DIN 53452)

Thermal conductivity: 0.43 W/m * K (DIN 52612)

Volume resistivity: >1015 Ohm x cm (DIN 53482)

Dielectric strength: >70 kV/mm (DIN 53481)

No additional information available.
Item Image Thickness
mm
Tolerance
mm
Dimensions
mm
Unit
piece
Price
Euro*
Buy
302095
1 ±0,12 500 x 500 1 47.00
302096
1 ±0,12 500 x 1000 1 75.00
302097
1 ±0,12 1000 x 1000 1 110.00
302098
2 ±0,12 500 x 500 1 67.00
302099
2 ±0,12 500 x 1000 1 100.00
302100
2 ±0,12 1000 x 1000 1 133.00
302101
3 ±0,12 500 x 500 1 100.00
302102
3 ±0,12 500 x 1000 1 149.00
302103
3 ±0,12 1000 x 1000 1 200.00
302104
4 ±0,15 500 x 500 1 113.00
302105
4 ±0,15 500 x 1000 1 161.00
302106
4 ±0,15 1000 x 1000 1 198.00
302107
5 ±0,15 500 x 500 1 123.00
302108
5 ±0,15 500 x 1000 1 167.00
302109
6 ±0,15 500 x 500 1 141.00
302110
6 ±0,15 500 x 1000 1 177.00
302111
8 ±0,20 500 x 500 1 159.00
302112
8 ±0,20 500 x 1000 1 187.00
302113
10 ±0,20 500 x 500 1 180.00
302114
10 ±0,20 500 x 1000 1 202.00
302115
12 ±0,30 500 x 500 1 200.00
302116
12 ±0,30 500 x 1000 1 238.00
302117
15 ±0,40 500 x 500 1 208.00
302118
15 ±0,40 500 x 1000 1 254.00
