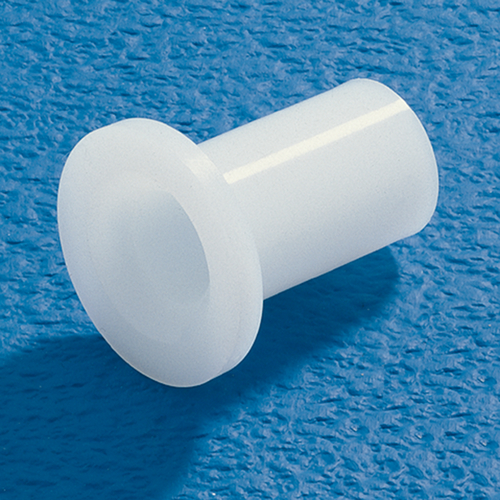

Bushing made of PA (M10 - M12)

No additional information available.
General Information For insulation of fasteners in the construction Prevent contact with... more

General Information

For insulation of fasteners in the construction

Prevent contact with conductive material and therefore short circuit

Prevent vibrations and loosening of parts

Resistant to electrolytic corrosion and thus indispensable

For connecting incompatible metals

Allow precise positioning and distance keeping of structural components

Chemical features:

Resistant to aromatic and aliphatic hydrocarbons, fuels, mineral oils and mineral lubricants; suitable for alkohols, esters, ketones, ethers and amines; good resistance to weak alkalis, but only moderate resistance to strong alkalis;

Limited resistance to weak mineral and organic acids; not resistant to oxidizing acids, strong mineral and organic acids as well as phenols; limited resistance to hydrolysis

Material specification:

Polyamide is an elastic, tough, loadable, but notch-sensitive material

Impact resistant

Resistant to abrasion and cold

High fatigue strength and excellent resilience

High wear resistance and good mechanical damping capacity

Insulating properties and an amazingly high tensile strength

Connecting parts made of polyamide and similar plastics protect from rust and corrosion damage

Polyamide can also be used in the food processing industry and in medical fields

PA 6 features a higher impact resistance compared to PA 6.6

PA 6 has the highest water absorption of all common plastics up to 9 to 10 % (followed by PA 6.6 with 8 to 9 %), thus considerably increased toughness, flexibility and elongation. However, the strength of the material can therefore be reduced by up to 10 %.

Material: PA 6 (polyamide 6)

Colour: natural

Density: approx. 1.14 g/cm3

Temperature range: -40 to +85 °C, for a short time +180 °C

Melting temperature: +220 °C (ISO 11357)

Yield stress: 75 MPa (ISO 527)

Elongation at break: >50 % (ISO 527)

Elastic modulus: 3,200 MPa (ISO 527)

Impact resistance: without break (DIN 53453)

Notch impact strength (Charpy): >3 kJ/m2 (ISO 179)

Ball pressure hardness: 160 N/mm2 (ISO 2039-1)

Shore hardness D: 82° (DIN 53505)

Dielectric strength: 20 kV/mm (IEC 60243)

Dielectric constant: 3.9 at 50 Hz (IEC 60250)

Surface resistance: 1013 Ohm (IEC 60093)

Volume resistivity: 1015 Ohm x cm (IEC 60093)

Comparative tracking index (CTI): >600 (DIN 53480)

Dielectric loss factor (at 50 Hz): 0.02 (specimen dry)

Water absorption: up to 10 % (during storage in water) (DIN 53472)

Flammability rating: UL 94 HB

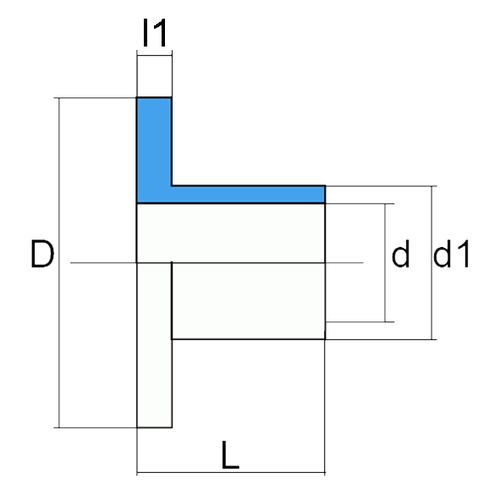

Item Image For thread d
mm
d1
mm
D
mm
l1
mm
L
mm
Einheit
Stück
Price
Euro*
Buy
306951
M10 10 13 23,7 2 5 50 60.00
306952
M10 10 13 23,7 2 5 100 101.00
306954
M10 10 13 23,7 2 10 50 51.00
306955
M10 10 13 23,7 2 10 100 102.00
306957
M10 10 13 23,7 2 15 25 33.00
306958
M10 10 13 23,7 2 15 50 54.00
306960
M10 10 13 23,7 2 20 25 33.00
306961
M10 10 13 23,7 2 20 50 54.00
306963
M10 10 13 23,7 2 25 25 35.00
306964
M10 10 13 23,7 2 25 50 58.00
306966
M10 10 13 23,7 2 30 25 35.00
306967
M10 10 13 23,7 2 30 50 58.00
306969
M10 10 13 23,7 2 35 25 36.00
306970
M10 10 13 23,7 2 35 50 61.00
306972
M10 10 13 23,7 2 40 25 36.00
306973
M10 10 13 23,7 2 40 50 61.00
306975
M10 10 13 23,7 2 45 25 38.00
306976
M10 10 13 23,7 2 45 50 64.00
306978
M10 10 13 23,7 2 50 25 38.00
306979
M10 10 13 23,7 2 50 50 64.00
306981
M10 10,2 14,9 19,8 2,6 11,9 50 58.00
306982
M10 10,2 14,9 19,8 2,6 11,9 100 99.00
306984
M10 10,3 14,3 20 1 25 50 36.00
306985
M10 10,3 14,3 20 1 25 100 59.00
306987
M10 10,5 13,3 28 3,1 19,5 50 55.00
306988
M10 10,5 13,3 28 3,1 19,5 100 94.00
306990
M12 12 14 23,7 2 20 25 55.00
306991
M12 12 14 23,7 2 20 50 94.00
306996
M12 12,2 21 27,3 2 10 10 27.00
306997
M12 12,2 21 27,3 2 10 25 55.00
306999
M12 12,1 14,8 25,6 2 5 25 38.00
307000
M12 12,1 14,8 25,6 2 5 50 64.00
307002
M12 12,1 14,8 25,6 2 10 25 38.00
307003
M12 12,1 14,8 25,6 2 10 50 64.00
307005
M12 12,1 14,8 25,6 2 15 25 39.00
307006
M12 12,1 14,8 25,6 2 15 50 67.00
307008
M12 12,1 14,8 25,6 2 20 25 39.00
307009
M12 12,1 14,8 25,6 2 20 50 67.00
307011
M12 12,1 14,8 25,6 2 25 25 41.00
307012
M12 12,1 14,8 25,6 2 25 50 69.00
307014
M12 12,1 14,8 25,6 2 30 25 41.00
307015
M12 12,1 14,8 25,6 2 30 50 69.00
307017
M12 12,1 14,8 25,6 2 35 25 41.00
307018
M12 12,1 14,8 25,6 2 35 50 69.00
307020
M12 12,1 14,8 25,6 2 40 25 41.00
307021
M12 12,1 14,8 25,6 2 40 50 69.00
307023
M12 12,1 14,8 25,6 2 45 25 43.00
307024
M12 12,1 14,8 25,6 2 45 50 75.00
307026
M12 12,1 14,8 25,6 2 50 25 43.00
307027
M12 12,1 14,8 25,6 2 50 50 75.00
307029
M12 12,5 17 32 3 19,3 25 53.00
307030
M12 12,5 17 32 3 19,3 50 89.00
307032
M12 12,4 21,8 60,5 3,3 6,7 10 39.00
307033
M12 12,4 21,8 60,5 3,3 6,7 25 71.00
307035
M12 12,4 16,9 34,6 3 5 25 39.00
307036
M12 12,4 16,9 34,6 3 5 50 71.00
307038
M12 12,4 16,9 34,6 3 10 25 39.00
307039
M12 12,4 16,9 34,6 3 10 50 71.00
307041
M12 12,4 16,9 34,6 3 15 25 41.00
307042
M12 12,4 16,9 34,6 3 15 50 69.00
307044
M12 12,4 16,9 34,6 3 20 25 41.00
307045
M12 12,4 16,9 34,6 3 20 50 69.00
307047
M12 12,4 16,9 34,6 3 25 25 45.00
307048
M12 12,4 16,9 34,6 3 25 50 75.00
307050
M12 12,4 16,9 34,6 3 30 25 45.00
307051
M12 12,4 16,9 34,6 3 30 50 75.00
307053
M12 12,4 16,9 34,6 3 35 25 50.00
307054
M12 12,4 16,9 34,6 3 35 50 84.00
307056
M12 12,4 16,9 34,6 3 40 25 50.00
307057
M12 12,4 16,9 34,6 3 40 50 84.00
307059
M12 12,4 16,9 34,6 3 45 25 55.00
307060
M12 12,4 16,9 34,6 3 45 50 91.00
307062
M12 12,4 16,9 34,6 3 50 25 55.00
307063
M12 12,4 16,9 34,6 3 50 50 91.00
