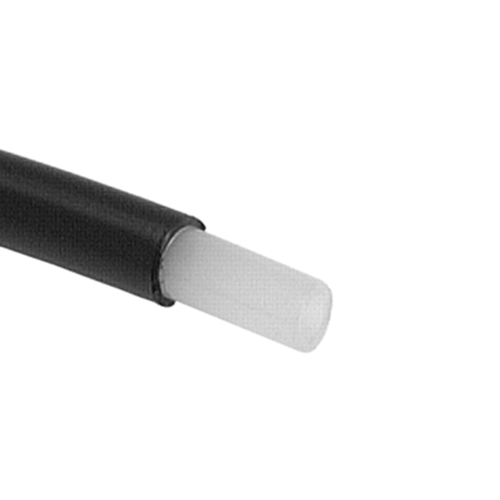

HYTREL®/PVC Pharmaceutical Composite and Particle Tubing
Product specification Pharmaceutical applications, particle conveyance and usable as gas... more
Product specification
Pharmaceutical applications, particle conveyance and usable as gas measuring tubing.
Liner is inert and neutral, tasteless and odourless.
Liner does not absorb liquids.
Liner meets the requirements of FDA, USDA, National Formulary, and the USP-Standards for food, beverages, pharmaceutical products, laboratory and medical equipment.
Non-toxic.
Jacket is resistant to abrasion and has very good resistance to aging.
Liner contains neither plasticizers nor vinyl chloride.
Very good resistance to aging.
Technical specification
Material:
Liner: HYTREL® (thermoplastic copolyester)
Jacket: PVC-P (polyvinyl chloride, soft)
Colour: black
Temperature range: -35 to +120 °C
Embrittlement temperature: -60 °C
Sterilization: autoclavable (+136 °C)
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Einheit m
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|
28057 |
|
4,4 | 6,4 | 5 | 100.00 | |
28058 |
|
4,4 | 6,4 | 15 | 261.00 | |
28061 |
|
6,4 | 9,5 | 5 | 193.00 | |
28062 |
|
6,4 | 9,5 | 15 | 501.00 | |
28063 |
|
9,5 | 12,7 | 5 | 231.00 | |
28064 |
|
9,5 | 12,7 | 15 | 597.00 |
