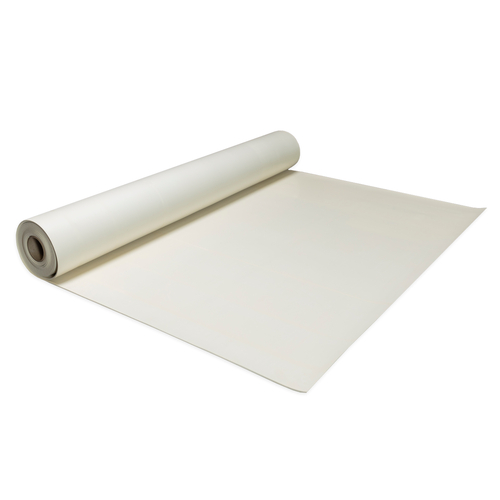

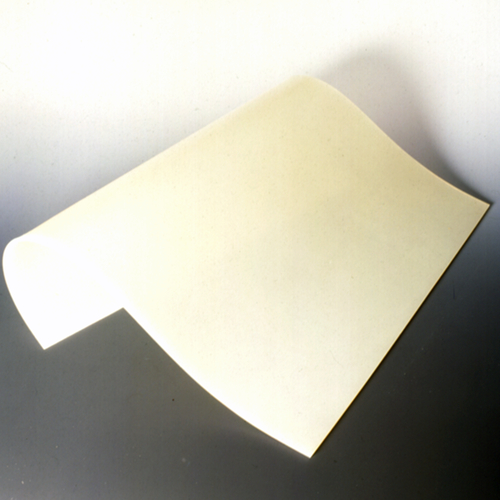

NBR Food Plate - Shore 60°

Product specification Food quality Very good abrasion resistance Outstanding rubber-elastic... more

Product specification

Food quality

Very good abrasion resistance

Outstanding rubber-elastic properties also at extreme bending radiuses

Good thermal resistance

Good resistance to mineral oils, vegetable and animal oils, silicone as well as diluted acids and alkalis at room temperature

Insufficient resistance to solvents, flame-resistant hydraulic fluids, and fuels

Insufficient resistance to aging and weather

Chemical features:

Nitrile rubber is a copolymer basing on butadiene and acrylonitrile. Resistance to fuels and mineral oils improves with increasing acrylonitrile component, but at the same time elastic behavior, cold flexibility, and gas tightness deteriorate.

Technical specification

Material: NBR (butadiene-acrylonitrile rubber)

Colour: white

Shore hardness A: 55 - 65° (DIN ISO 7619-1)

Temperature range: -30 to +80 °C

Specific features: indifferent to lacquer

Density: 1.32 g/cm3

Elongation at break: 500 % (DIN 53504)

Tearing strength: 11 MPa (DIN 53504)

Compression set: 35 % at +100 °C / 22 h (ISO 815)

Volume resistivity: 4 x 1012 Ohm x cm

Regulations: BfR XXI (BGVV) Cat. 2, FDA

No additional information available.
Item Image Thickness
mm
Abmessung
mm
Einheit
Stück
Price
Euro*
Buy
19682
1 700 x 700 1 142.00
19683
1,5 700 x 700 1 150.00
19684
2 700 x 700 1 179.00
19685
2,5 700 x 700 1 194.00
19686
3 700 x 700 1 215.00
19687
4 700 x 700 1 246.00
19688
5 700 x 700 1 282.00
19689
6 700 x 700 1 319.00
19690
1 1400 x 1400 1 234.00
19691
1,5 1400 x 1400 1 278.00
19692
2 1400 x 1400 1 315.00
19693
2,5 1400 x 1400 1 334.00
19694
3 1400 x 1400 1 378.00
19695
4 1400 x 1400 1 411.00
19696
5 1400 x 1400 1 518.00
19697
6 1400 x 1400 1 566.00
