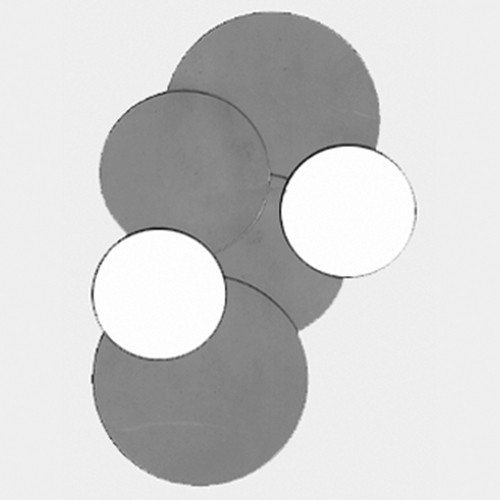

Round Filter made of PES

Application area Prefiltration and clarification of aqueous solutions Particle and aerosol... more

Application area

Prefiltration and clarification of aqueous solutions

Particle and aerosol filtration of gases in the areas of bio- and food processing technology, chemical and physical laboratory engineering, environmental technology and chemical nuclear technology

Product specification

Hydrophilic filter made of chemically inert, high-strength polymer material with regular pore structure for high flow rates; biocompatible, certified according to USP Class VI "Plastics Test", sterilizable by autoclaving.

Technical specification

Material: PES (polyether sulfone)

Thickness: approx. 150 µm

Max. temperature: +100 °C

Sterilization: autoclavable (+121 °C)

No additional information available.
Item Image Outside Ø
mm
Porengröße
µm
max. Durchfluss Gase1
l/min.
max. Durchfluss Flüssigkeiten2
ml/min.
Bubble Point
bar
Einheit
Stück
Price
Euro*
Buy
15163
13 0,1 1 5 6,9 25 40.00
15164
25 0,1 1 5 6,9 25 40.00
15165
37 0,1 1 5 6,9 25 60.00
15166
47 0,1 1 5 6,9 25 60.00
15167
50 0,1 1 5 6,9 25 65.00
15168
90 0,1 1 5 6,9 25 150.00
15169
142 0,1 1 5 6,9 25 275.00
15171
13 0,2 3 22 3,2 25 40.00
15172
25 0,2 3 22 3,2 25 40.00
15173
37 0,2 3 22 3,2 25 60.00
15174
47 0,2 3 22 3,2 25 60.00
15175
50 0,2 3 22 3,2 25 65.00
15176
90 0,2 3 22 3,2 25 150.00
15177
142 0,2 3 22 3,2 25 275.00
15182
47 0,45 5 44 2,1 25 60.00
15195
13 1,2 13 700 0,4 25 40.00
15196
25 1,2 13 700 0,4 25 40.00
15197
37 1,2 13 700 0,4 25 60.00
15198
47 1,2 13 700 0,4 25 60.00
15199
50 1,2 13 700 0,4 25 65.00
15200
90 1,2 13 700 0,4 25 150.00
15201
142 1,2 13 700 0,4 25 275.00
