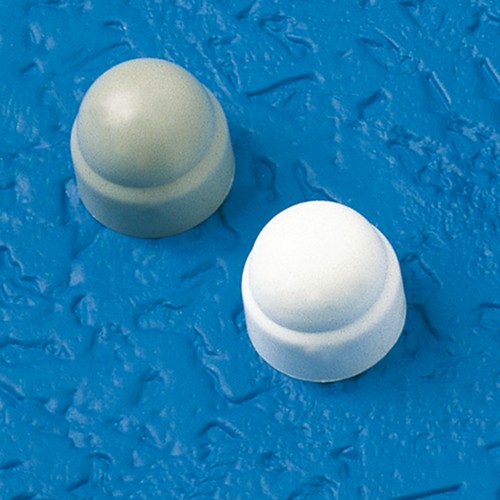

Head Cover made of HDPE for Hex Screws / Nuts

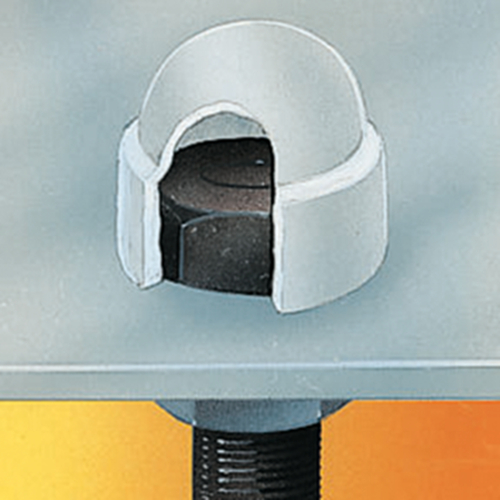

Application area Protects from dirt as well as steel screws from corrosion and deterioration.... more

Application area

Protects from dirt as well as steel screws from corrosion and deterioration.

Polyethylene (PE) resists acids, greases and oils.

Product specification

Chemical features:

Resistant to weak and strong alkalis and acids, except oxidizing acids, and only relatively suitable for hydrofluoric acid; resistant to organic acids, aliphatic hydrocarbons and organic solvents below +60 °C.

Resistance to weather:

The material degrades when exposed to direct sunlight

Material specification:

Excellent impact resistance even at low temperatures, antiadhesive, waxy and soft surface; HDPE features a higher strength and hardness than LDPE, high tearing strength, physiologically safe, good dielectrical properties, very low tendency to swell when in contact with polar fluids (e.g. alcohols, organic acids, esters, ketones etc.) as well as greases, oils and waxes.

Due to its chemical properties, the bonding of PE requires special adhesives.

Technical specification

Material: HDPE (polyethylene, rigid, high density)

Colour: black, white, gray or brown

Density: 0.94 - 0.962 g/cm3

Temperature range: -50 to +80 °C, for a short time +100 °C

Tensile modulus: 700 - 1,400 N/mm2

Tensile strength: 18 - 35 N/mm2

Tearing strength: 25 - 32 MPa (DIN 53455)

Elongation at break: 100 - 1,000 % (DIN 53455)

Impact resistance:

+20 °C: without break (DIN 53453)

-40 °C: 350 kJ/m2 (DIN 53448)

Ball pressure hardness (10-sec. value): 40 - 60 N/mm2 (DIN 53456)

Surface resistance: 1014 Ohm (DIN 53482)

Volume resistivity: >1017 Ohm x cm (DIN 53482)

Dielectric strength: 30 - 40 kV/mm

Dielectric constant: approx. 2.4 at 100 Hz

Water absorption: 0.05 % (at +23 °C)

Flammability rating: UL 94 HB

No additional information available.

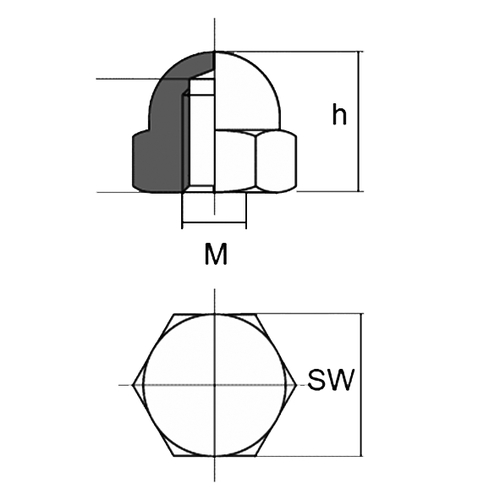

Item Image For thread h
mm
SW
mm
Farbe Einheit
Stück
Price
Euro*
Buy
311400
M4 8,8 7 schwarz 50 24.00
311401
M4 8,8 7 schwarz 100 39.00
311402
M4 8,8 7 weiß 50 24.00
311403
M4 8,8 7 weiß 100 39.00
311404
M4 8,8 7 grau 50 24.00
311405
M4 8,8 7 grau 100 39.00
311406
M4 8,8 7 braun 50 24.00
311407
M4 8,8 7 braun 100 39.00
311408
M5 11 8 schwarz 50 24.00
311409
M5 11 8 schwarz 100 39.00
311410
M5 11 8 weiß 50 24.00
311411
M5 11 8 weiß 100 39.00
311412
M5 11 8 grau 50 24.00
311413
M5 11 8 grau 100 39.00
311414
M5 11 8 braun 50 24.00
311415
M5 11 8 braun 100 39.00
311416
M6 12,8 10 schwarz 50 24.00
311417
M6 12,8 10 schwarz 100 39.00
311418
M6 12,8 10 weiß 50 24.00
311419
M6 12,8 10 weiß 100 39.00
311420
M6 12,8 10 grau 50 24.00
311421
M6 12,8 10 grau 100 39.00
311422
M6 12,8 10 braun 50 24.00
311423
M6 12,8 10 braun 100 39.00
311424
M8 15,8 13 schwarz 50 28.00
311425
M8 15,8 13 schwarz 100 41.00
311426
M8 15,8 13 weiß 50 28.00
311427
M8 15,8 13 weiß 100 41.00
311428
M8 15,8 13 grau 50 28.00
311429
M8 15,8 13 grau 100 41.00
311430
M8 15,8 13 braun 50 28.00
311431
M8 15,8 13 braun 100 41.00
311432
M10 19 16 schwarz 50 58.00
311433
M10 19 16 schwarz 100 99.00
311434
M10 19 16 weiß 50 58.00
311435
M10 19 16 weiß 100 99.00
311436
M10 19 16 grau 50 58.00
311437
M10 19 16 grau 100 99.00
311438
M10 19 16 braun 50 58.00
311439
M10 19 16 braun 100 99.00
311448
M10 20 17 schwarz 50 58.00
311449
M10 20 17 schwarz 100 99.00
311450
M10 20 17 weiß 50 58.00
311451
M10 20 17 weiß 100 99.00
311452
M10 20 17 grau 50 58.00
311453
M10 20 17 grau 100 99.00
311454
M10 20 17 braun 50 58.00
311455
M10 20 17 braun 100 99.00
311456
M12 20 18 schwarz 25 33.00
311457
M12 20 18 schwarz 50 56.00
311458
M12 20 18 weiß 25 33.00
311459
M12 20 18 weiß 50 56.00
311460
M12 20 18 grau 25 33.00
311461
M12 20 18 grau 50 56.00
311462
M12 20 18 braun 25 33.00
311463
M12 20 18 braun 50 56.00
311464
M12 21 19 schwarz 50 37.00
311465
M12 21 19 schwarz 100 63.00
311466
M12 21 19 weiß 50 37.00
311467
M12 21 19 weiß 100 63.00
311468
M12 21 19 grau 50 37.00
311469
M12 21 19 grau 100 63.00
311470
M12 21 19 braun 50 37.00
311471
M12 21 19 braun 100 63.00
311480
M14 23,8 22 schwarz 50 54.00
311481
M14 23,8 22 schwarz 100 91.00
311482
M14 23,8 22 weiß 50 63.00
311483
M14 23,8 22 weiß 100 91.00
311484
M14 23,8 22 grau 50 63.00
311485
M14 23,8 22 grau 100 91.00
311486
M14 23,8 22 braun 50 63.00
311487
M14 23,8 22 braun 100 91.00
311488
M16 26,5 24 schwarz 50 58.00
311489
M16 26,5 24 schwarz 100 99.00
311490
M16 26,5 24 weiß 50 58.00
311491
M16 26,5 24 weiß 100 99.00
311492
M16 26,5 24 grau 50 58.00
311493
M16 26,5 24 grau 100 99.00
311494
M16 26,5 24 braun 50 58.00
311495
M16 26,5 24 braun 100 99.00
311496
M18 30,5 27 schwarz 25 56.00
311497
M18 30,5 27 schwarz 50 90.00
311498
M18 30,5 27 weiß 25 56.00
311499
M18 30,5 27 weiß 50 90.00
311500
M18 30,5 27 grau 25 56.00
311501
M18 30,5 27 grau 50 90.00
311502
M18 30,5 27 braun 25 56.00
311503
M18 30,5 27 braun 50 90.00
311512
M20 31,5 30 schwarz 25 63.00
311513
M20 31,5 30 schwarz 50 95.00
311514
M20 31,5 30 weiß 25 63.00
311515
M20 31,5 30 weiß 50 95.00
311516
M20 31,5 30 grau 25 63.00
311517
M20 31,5 30 grau 50 95.00
311518
M20 31,5 30 braun 25 63.00
311519
M20 31,5 30 braun 50 95.00
311520
M24 39 36 schwarz 10 24.00
311521
M24 39 36 schwarz 25 60.00
311522
M24 39 36 weiß 10 24.00
311523
M24 39 36 weiß 25 60.00
